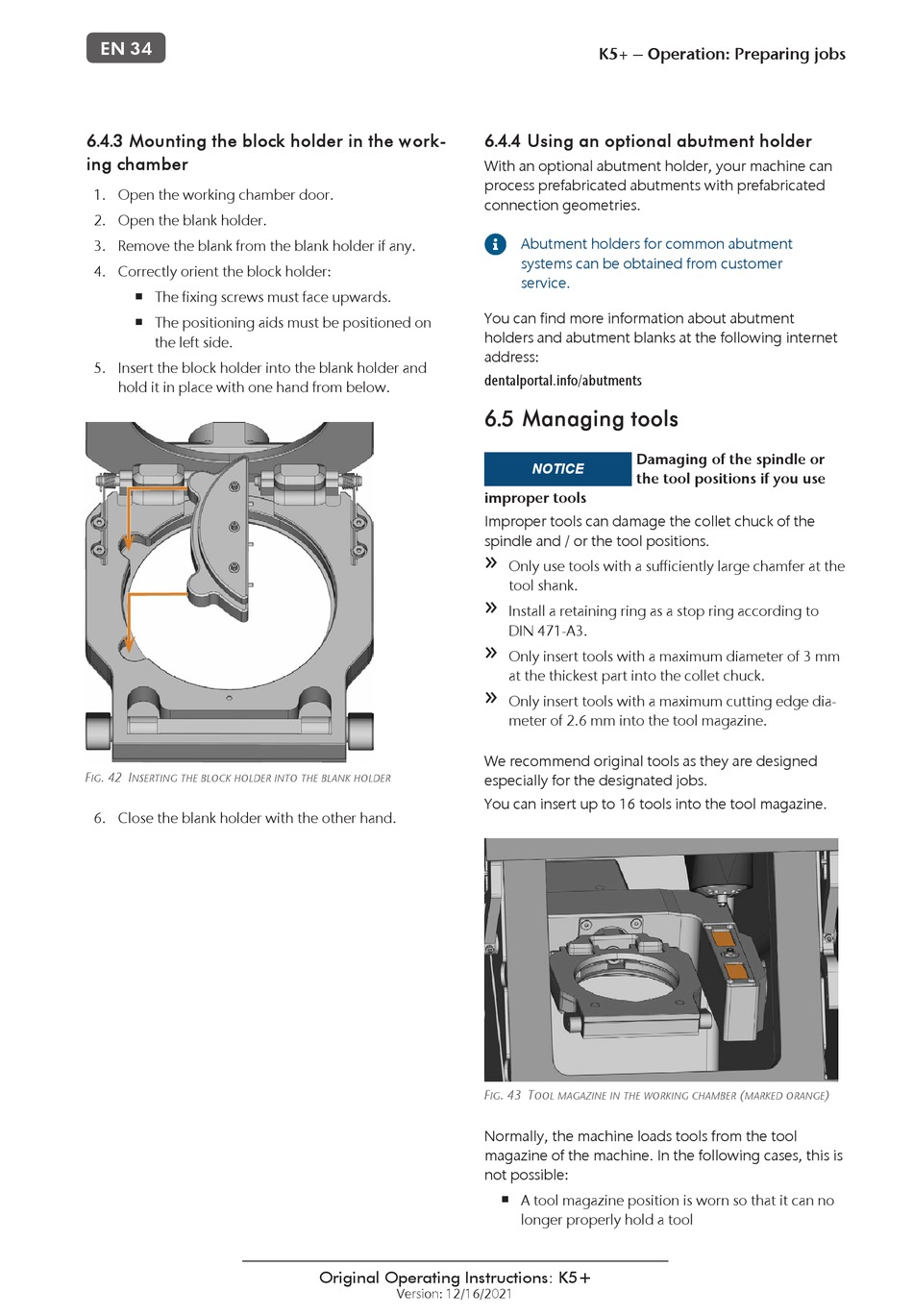

6.4.3 Mounting the block holder in the w ork-
ing chamber
1. Open the working chamber door.
2. Open the blank holder.
3. Remove the blank from the blank holder if any.
4. Correctly orient the block holder:
The fixing screws must face upwards.
n
The positioning aids must be positioned on
n
the left side.
5. Insert the block holder into the blank holder and
hold it in place with one hand from below.
F . 42 I
IG NSERTING THE BLOCK HOLDER INTO THE BLANK HOLDER
6. Close the blank holder with the other hand.

6.4.4 Using an optional abutment holder

With an optional abutment holder, your machine can
process prefabricated abutments with prefabricated
connection geometries.
You can find more information about abutment
holders and abutment blanks at the following internet
address:
dentalportal.info/abutments

6.5 Managing tools

improper tools
Improper tools can damage the collet chuck of the
spindle and / or the tool positions.
We recommend original tools as they are designed
especially for the designated jobs.
You can insert up to 16 tools into the tool magazine.
F
Normally, the machine loads tools from the tool
magazine of the machine. In the following cases, this is
not possible:
Original Operating Instructions: K5+
Version: 12/16/2021
K5+ – Operation: Preparing jobs
Abutment holders for common abutment
systems can be obtained from customer
service.
Damaging of the spindle or
NOTICE
the tool positions if you use
Only use tools with a sufficiently large chamfer at the
tool shank.
Install a retaining ring as a stop ring according to
DIN 471-A3.
Only insert tools with a maximum diameter of 3 mm
at the thickest part into the collet chuck.
Only insert tools with a maximum cutting edge dia-
meter of 2.6 mm into the tool magazine.
. 43 T
IG OOL MAGAZINE IN THE WORKING CHAMBER
A tool magazine position is worn so that it can no
n
longer properly hold a tool
( )
MARKED ORANGE
