K5+ – Installing the machine
5.6.3 Adjusting the air pressure w ith the com-
pressed air regulator
Setting the air pressure is only necessary if the air pres-
sure shown by the pressure gauge does not lie
between the minimum and maximum air pressure. You
can find specific values and additional requirements in
the chapter on technical data.

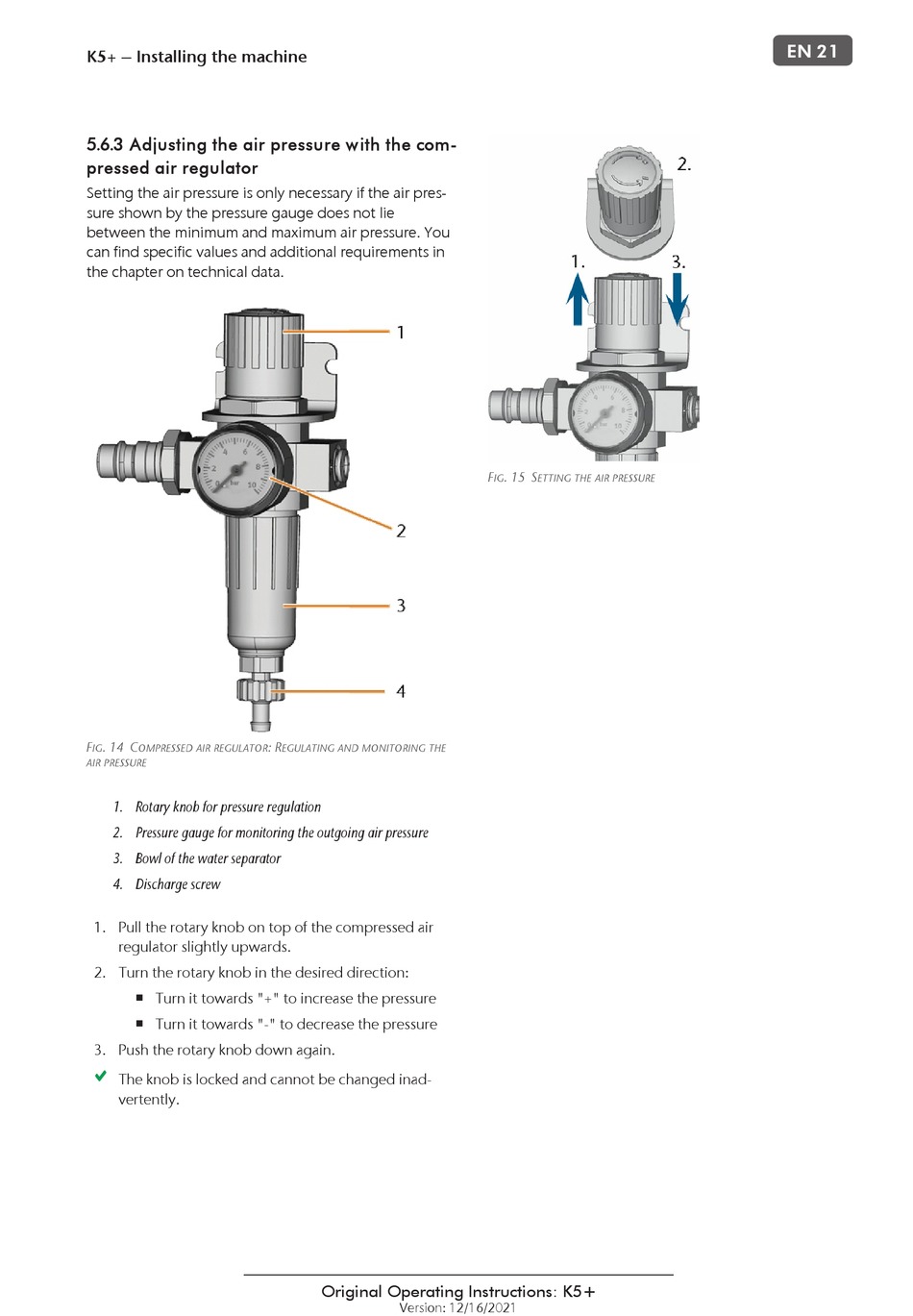

F . 14 C
IG OMPRESSED AIR REGULATOR
AIR PRESSURE
1. Rotary knob for pressure regulation
2. Pressure gauge for monitoring the outgoing air pressure
3. Bowl of the water separator
4. Discharge screw
1. Pull the rotary knob on top of the compressed air
regulator slightly upwards.
2. Turn the rotary knob in the desired direction:
Turn it towards "+" to increase the pressure
n
Turn it towards "-" to decrease the pressure
n
3. Push the rotary knob down again.
The knob is locked and cannot be changed inad-
vertently.
: R
EGULATING AND MONITORING THE
Original Operating Instructions: K5+
Version: 12/16/2021
F . 15 S
IG ETTING THE AIR PRESSURE
EN 21
