K5+ – Installing the machine
5 INSTALLING THE
MACHINE

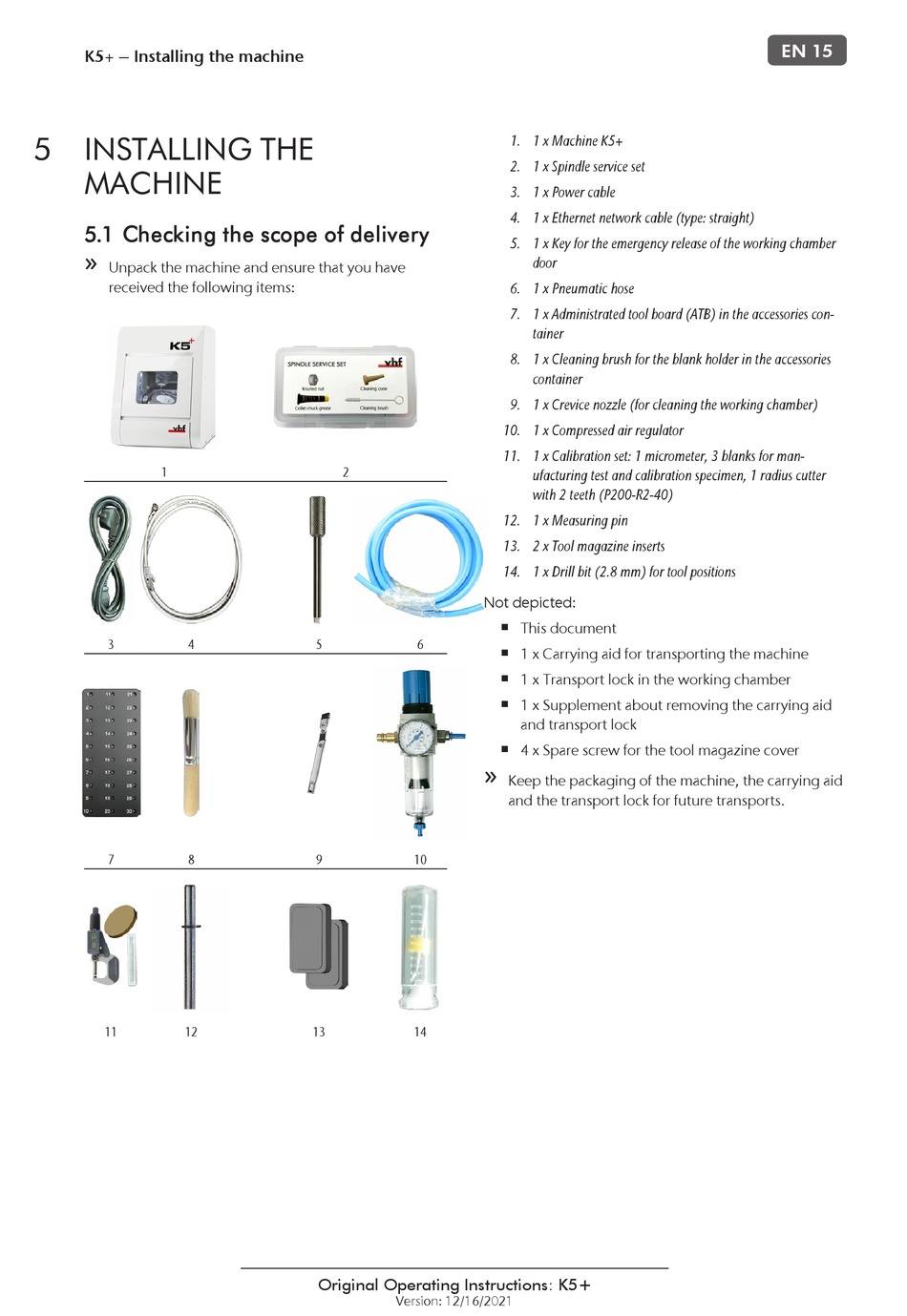

5.1 Checking the scope of delivery

Unpack the machine and ensure that you have
received the following items:
1
3 4
7 8
11 12
2
Not depicted:
5 6
9 10
13 14
Original Operating Instructions: K5+
Version: 12/16/2021
1. 1 x Machine K5+
2. 1 x Spindle service set
3. 1 x Power cable
4. 1 x Ethernet network cable (type: straight)
5. 1 x Key for the emergency release of the working chamber
door
6. 1 x Pneumatic hose
7. 1 x Administrated tool board (ATB) in the accessories con-
tainer
8. 1 x Cleaning brush for the blank holder in the accessories
container
9. 1 x Crevice nozzle (for cleaning the working chamber)
10. 1 x Compressed air regulator
11. 1 x Calibration set: 1 micrometer, 3 blanks for man-
ufacturing test and calibration specimen, 1 radius cutter
with 2 teeth (P200-R2-40)
12. 1 x Measuring pin
13. 2 x Tool magazine inserts
14. 1 x Drill bit (2.8 mm) for tool positions
This document
n
1 x Carrying aid for transporting the machine
n
1 x Transport lock in the working chamber
n
1 x Supplement about removing the carrying aid
n
and transport lock
4 x Spare screw for the tool magazine cover
n
Keep the packaging of the machine, the carrying aid
and the transport lock for future transports.
