K5+ – Operating regulations

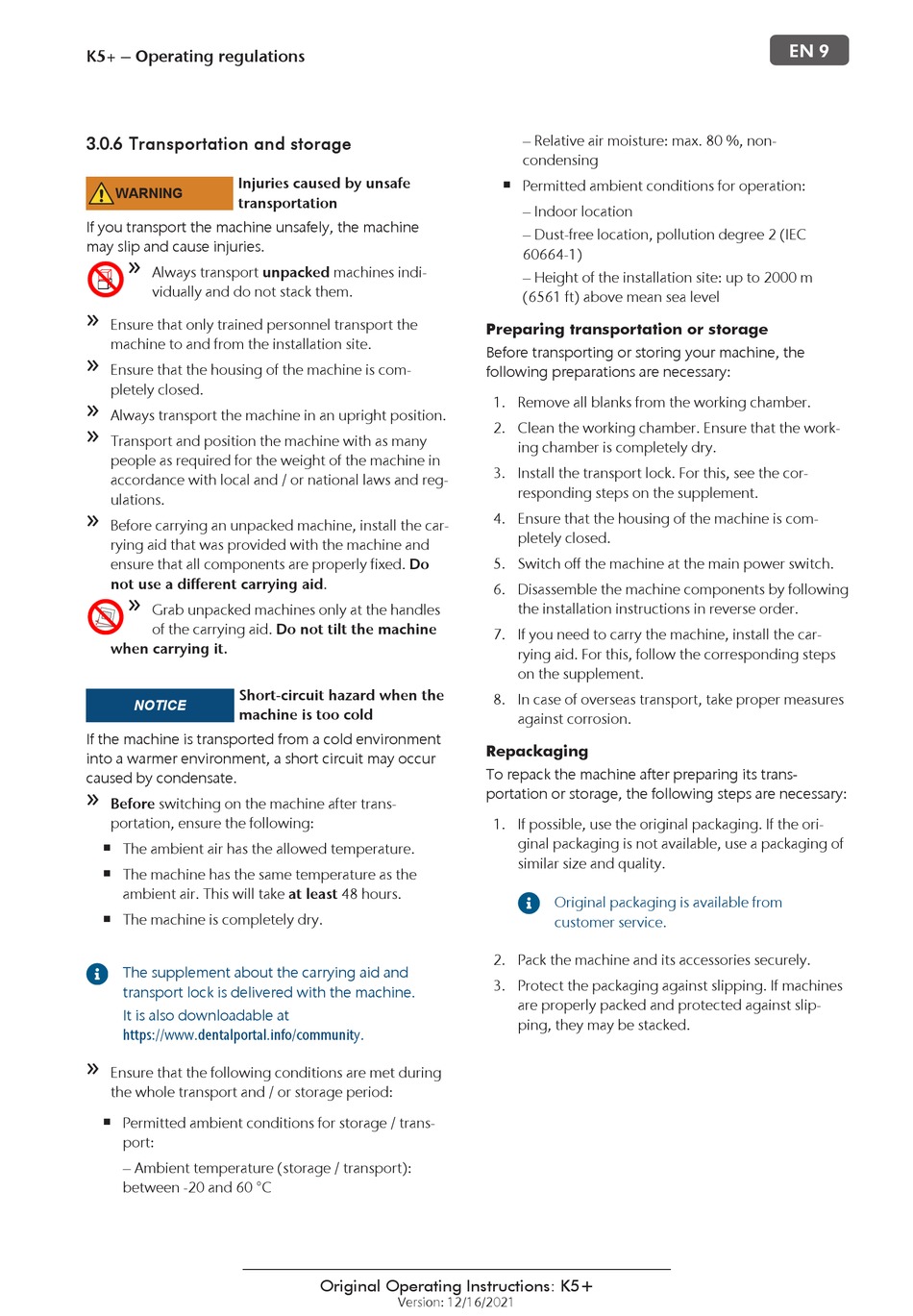

3.0.6 Transportation and storage

Injuries caused by unsafe
WARNING
transportation
If you transport the machine unsafely, the machine
may slip and cause injuries.
Always transport unpacked machines indi-
vidually and do not stack them.
Ensure that only trained personnel transport the
machine to and from the installation site.
Ensure that the housing of the machine is com-
pletely closed.
Always transport the machine in an upright position.
Transport and position the machine with as many
people as required for the weight of the machine in
accordance with local and / or national laws and reg-
ulations.
Before carrying an unpacked machine, install the car-
rying aid that was provided with the machine and
ensure that all components are properly fixed. Do
not use a different carrying aid.
Grab unpacked machines only at the handles
of the carrying aid. Do not tilt the machine
when carrying it.
Short-circuit hazard when the
NOTICE
machine is too cold
If the machine is transported from a cold environment
into a warmer environment, a short circuit may occur
caused by condensate.
Before switching on the machine after trans-
portation, ensure the following:
The ambient air has the allowed temperature.
n
The machine has the same temperature as the
n
ambient air. This will take at least 48 hours.
The machine is completely dry.
n
The supplement about the carrying aid and
transport lock is delivered with the machine.
It is also downloadable at
https://www.dentalportal.info/community.
Ensure that the following conditions are met during
the whole transport and / or storage period:
Permitted ambient conditions for storage / trans-
n
port:
– Ambient temperature (storage / transport):
between -20 and 60 °C
Preparing transportation or storage
Before transporting or storing your machine, the
following preparations are necessary:
Repackaging
To repack the machine after preparing its trans-
portation or storage, the following steps are necessary:
Original Operating Instructions: K5+
Version: 12/16/2021
– Relative air moisture: max. 80 %, non-
condensing
Permitted ambient conditions for operation:
n
– Indoor location
– Dust-free location, pollution degree 2 (IEC
60664-1)
– Height of the installation site: up to 2000 m
(6561 ft) above mean sea level
1. Remove all blanks from the working chamber.
2. Clean the working chamber. Ensure that the work-
ing chamber is completely dry.
3. Install the transport lock. For this, see the cor-
responding steps on the supplement.
4. Ensure that the housing of the machine is com-
pletely closed.
5. Switch off the machine at the main power switch.
6. Disassemble the machine components by following
the installation instructions in reverse order.
7. If you need to carry the machine, install the car-
rying aid. For this, follow the corresponding steps
on the supplement.
8. In case of overseas transport, take proper measures
against corrosion.
1. If possible, use the original packaging. If the ori-
ginal packaging is not available, use a packaging of
similar size and quality.
Original packaging is available from
customer service.
2. Pack the machine and its accessories securely.
3. Protect the packaging against slipping. If machines
are properly packed and protected against slip-
ping, they may be stacked.
EN 9
