K5+ – Machine overview

4.4 Working chamber

You can mount blanks and insert tools into the working
chamber. This is where the blanks are processed.

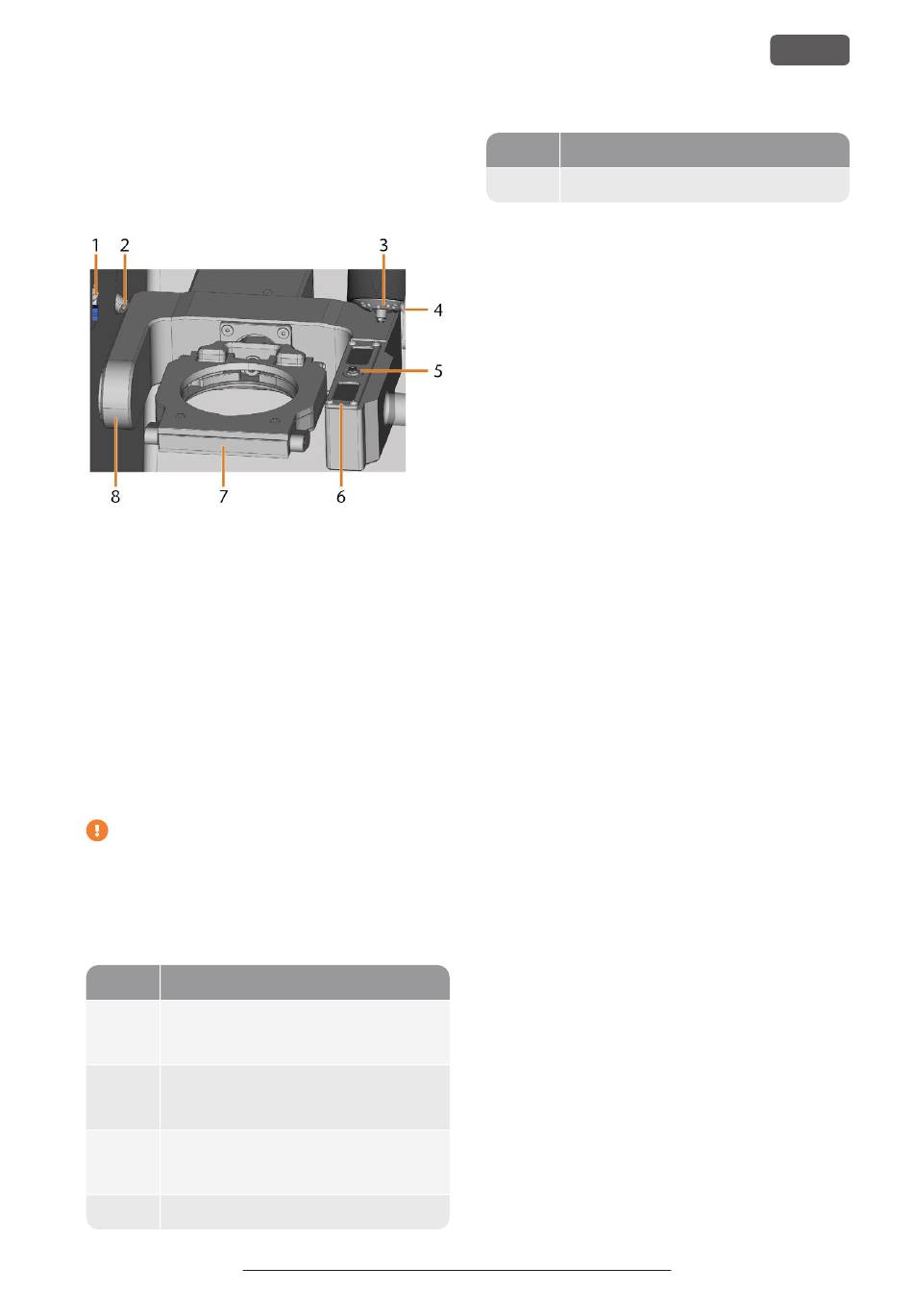

F . 4 W
IG ORKING CHAMBER
1. Left ion jet
2. Webcam
3. Spindle with collet chuck for picking up tools
4. Right ion jet
5. Measuring key
6. Tool magazine
7. Blank holder; Rotational axis A
8. Rotational axis B
Colors of the working chamber lighting
If the working chamber lighting is insufficient,
provide additional lighting.
The machine illuminates the working chamber in
different colors. The color will change depending on
the state of the machine. You will find the colors and
respective machine status in the following table:
Color
Green The machine is ready for operation.
You can open the working chamber door.
White The machine is ready for operation.
The working chamber door is open.
Blue The machine is operating.
The working chamber door is locked.
Red A machine malfunction has occured.
Status
Original Operating Instructions: K5+
Version: 12/16/2021
Color
The working chamber door is locked.
EN 11
