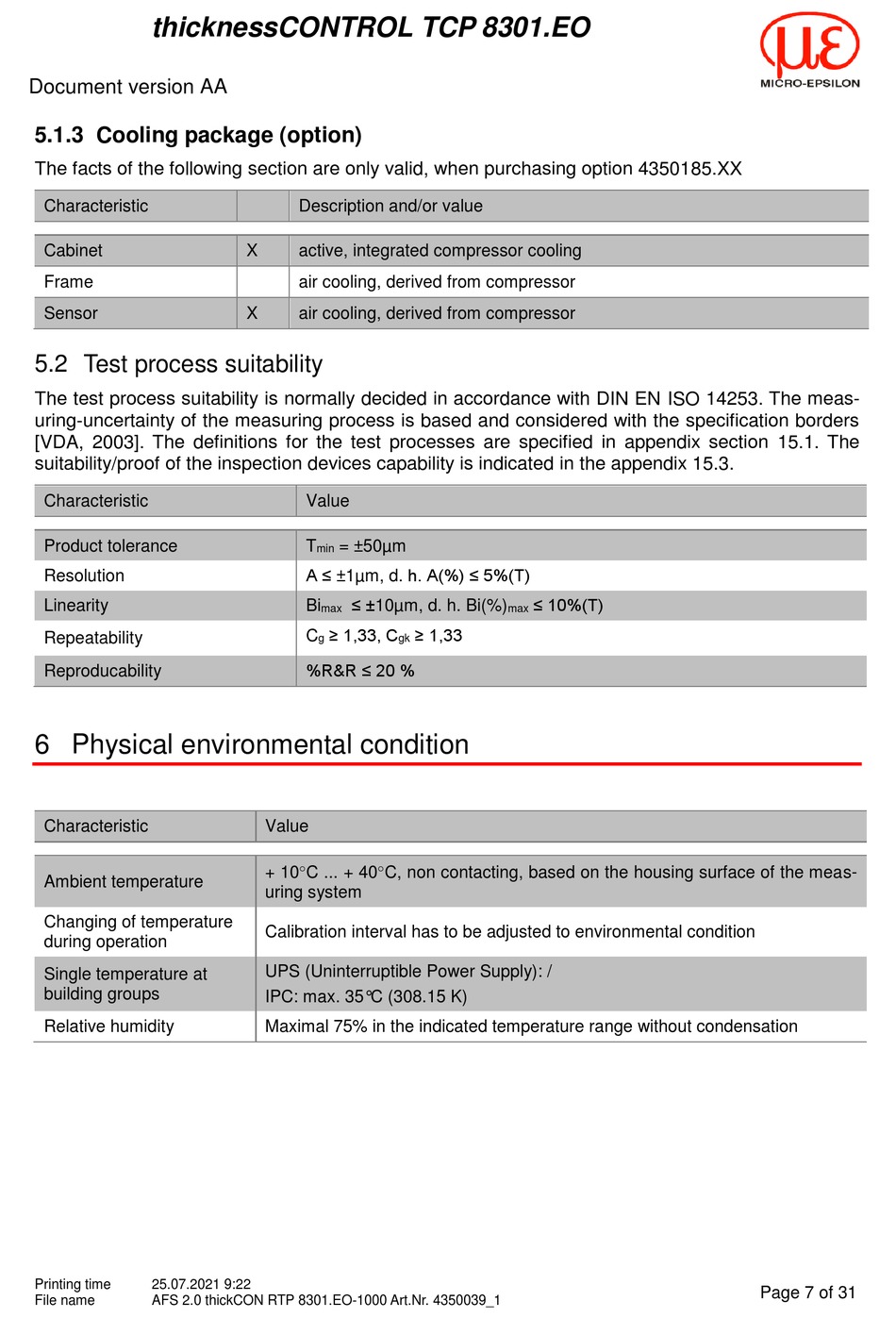

5.1.3 Cooling package (option)
The facts of the following section are only valid, when purchasing option 4350185.XX
Characteristic
Cabinet
Frame
Sensor
5.2 Test process suitability
The test process suitability is normally decided in accordance with DIN EN ISO 14253. The meas-
uring-uncertainty of the measuring process is based and considered with the specification borders
[VDA, 2003]. The definitions for the test processes are specified in appendix section 15.1. The
suitability/proof of the inspection devices capability is indicated in the appendix 15.3.
Characteristic
Product tolerance
Resolution
Linearity
Repeatability
Reproducability
6 Physical environmental condition
Characteristic
Ambient temperature
Changing of temperature
during operation
Single temperature at
building groups
Relative humidity
Printing time
25.07.2021 9:22
File name
AFS 2.0 thickCON RTP 8301.EO-1000 Art.Nr. 4350039_1
Description and/or value
X
active, integrated compressor cooling
air cooling, derived from compressor
X
air cooling, derived from compressor
Value
T
= ±50µm
min
A ≤ ±1µm, d. h. A(%) ≤ 5%(T)
≤ ±10µm, d. h. Bi(%)
Bi
max
≥ 1,33, C
≥ 1,33
C
g
gk
%R&R ≤ 20 %
Value
+ 10C ... + 40C, non contacting, based on the housing surface of the meas-
uring system
Calibration interval has to be adjusted to environmental condition
UPS (Uninterruptible Power Supply): /
IPC: max. 35°C (308.15 K)
Maximal 75% in the indicated temperature range without condensation
≤ 10%(T)
max
Page 7 of 31
