The buffer time depends on the capacity and performance of the battery as well as the load current. The diagram
below shows the typical buffer times of the standard battery.

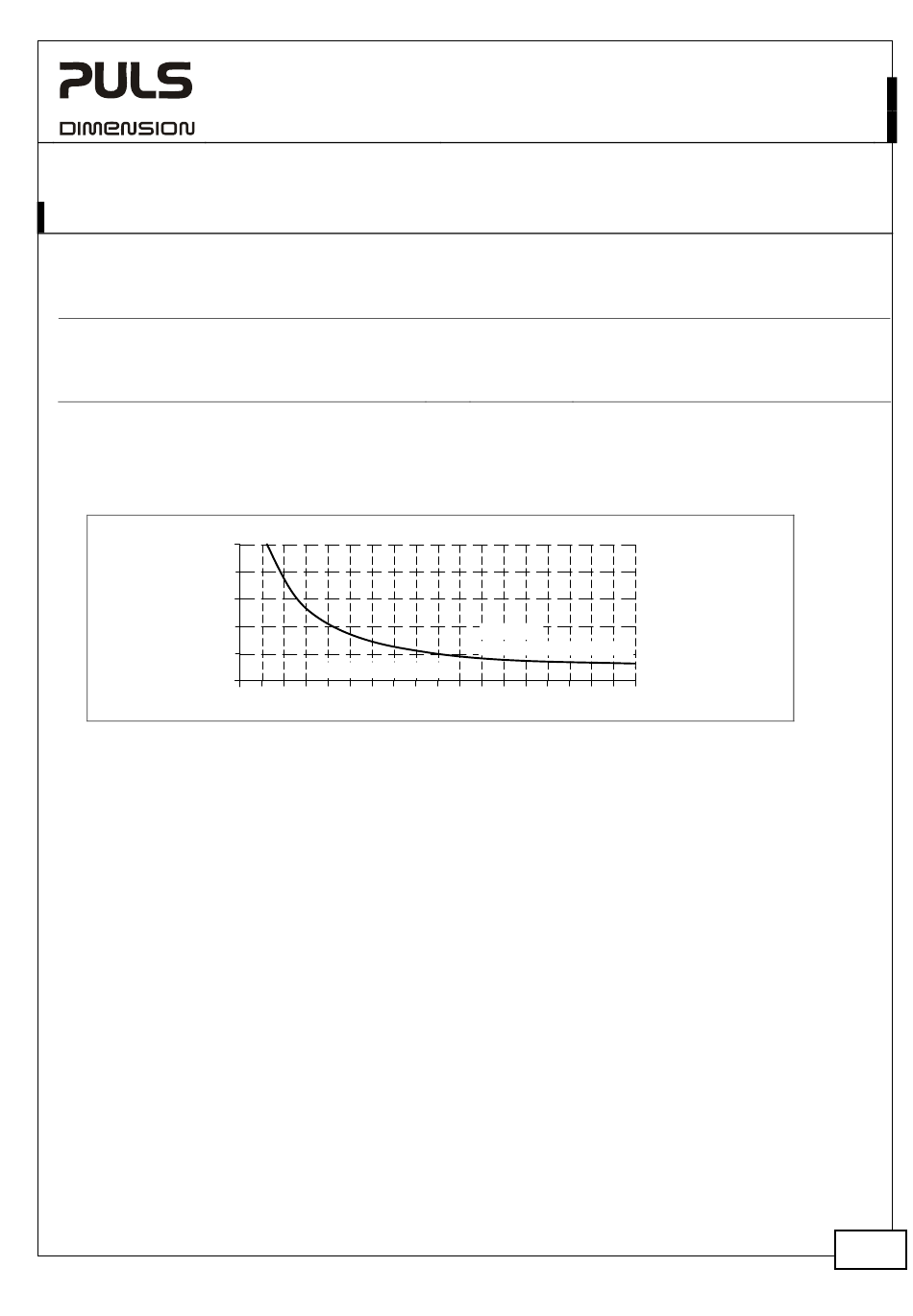

Buffer time with 5Ah high-current battery
*) Minimum value includes 20% aging and requires a fully charged (min. 24h) battery.
**) Typical value includes 10% aging and requires a fully charged (min. 24h) battery.
Fig. 9-1
Buffer Current
10A
8
6
4
2
0
May. 2008 / Rev. 1.1 DS-UBC10.241-EN
All parameters are specified at an input voltage of 24V, 10A output load, 25°C ambient and after a 5 minutes run-in time
unless otherwise noted. It is assumed that the input power source can deliver a sufficient output current.
Buffer time vs. output current with a 5Ah high current battery
Buffer Time (Minutes)
5 10 15 20 25 30 35 40
www.pulspower.com Phone +49 89 9278 0
UBC10.241, UBC10.241-N1
min. 13'24'' At 5A output current *)
min. 4'54'' At 10A output current *)
typ. 16'15'' At 5A output current, see Fig. 9-1 **)
typ. 6'15'' At 10A output current, see Fig. 9-1 **)
UZB12.051
12V 5Ah high current battery
