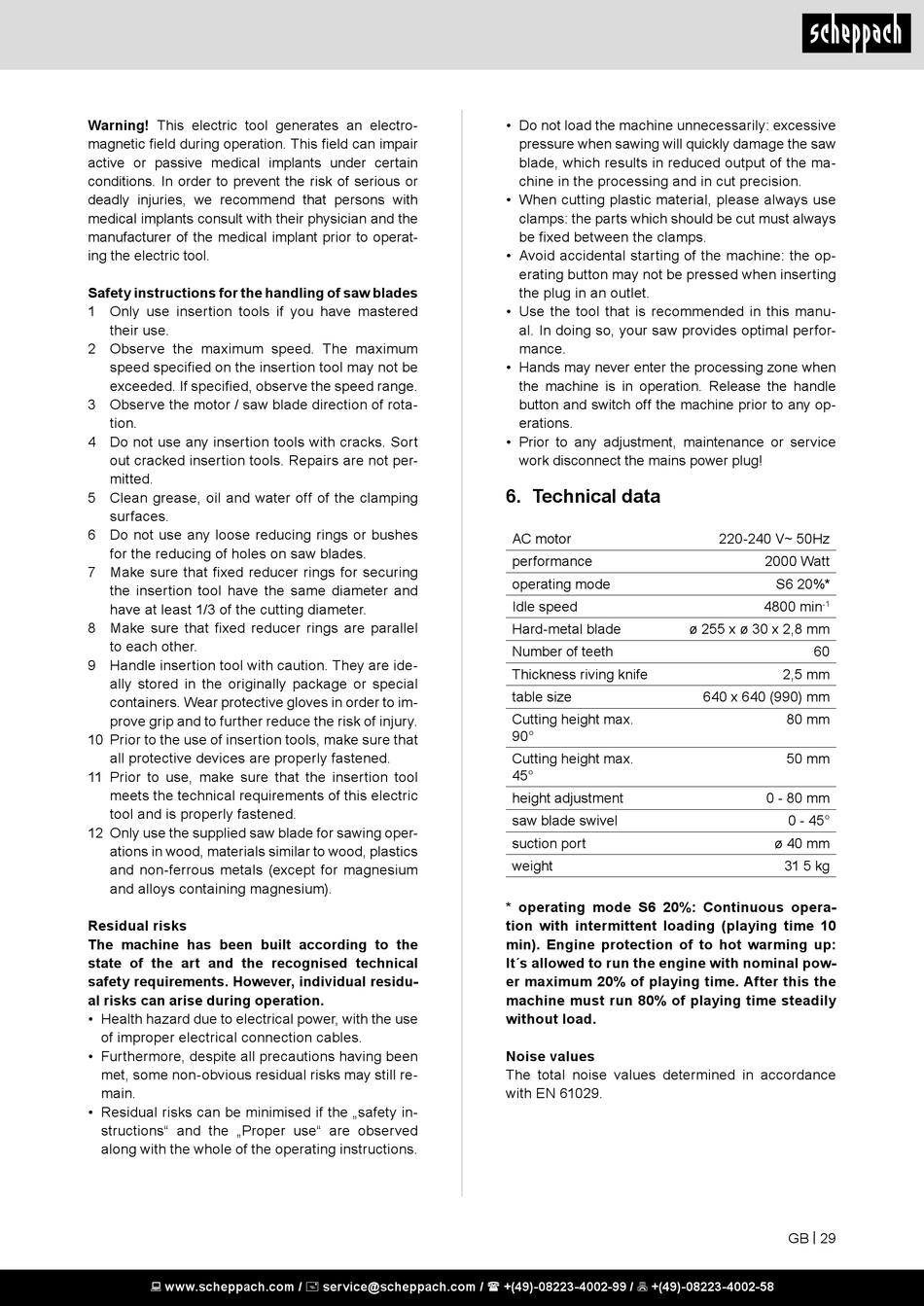

Technical Data - Scheppach HS105 Bedienungsanleitung

Warning! This electric tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain
conditions. In order to prevent the risk of serious or
deadly injuries, we recommend that persons with
medical implants consult with their physician and the
manufacturer of the medical implant prior to operat-
ing the electric tool.
Safety instructions for the handling of saw blades
1 Only use insertion tools if you have mastered
their use.
2 Observe the maximum speed. The maximum
speed specified on the insertion tool may not be
exceeded. If specified, observe the speed range.
3 Observe the motor / saw blade direction of rota-
tion.
4 Do not use any insertion tools with cracks. Sort
out cracked insertion tools. Repairs are not per-
mitted.
5 Clean grease, oil and water off of the clamping
surfaces.
6 Do not use any loose reducing rings or bushes
for the reducing of holes on saw blades.
7 Make sure that fixed reducer rings for securing
the insertion tool have the same diameter and
have at least 1/3 of the cutting diameter.
8 Make sure that fixed reducer rings are parallel
to each other.
9 Handle insertion tool with caution. They are ide-
ally stored in the originally package or special
containers. Wear protective gloves in order to im-
prove grip and to further reduce the risk of injury.
10 Prior to the use of insertion tools, make sure that
all protective devices are properly fastened.
11 Prior to use, make sure that the insertion tool
meets the technical requirements of this electric
tool and is properly fastened.
12 Only use the supplied saw blade for sawing oper-
ations in wood, materials similar to wood, plastics
and non-ferrous metals (except for magnesium
and alloys containing magnesium).
Residual risks
The machine has been built according to the
state of the art and the recognised technical
safety requirements. However, individual residu-
al risks can arise during operation.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the „safety in-
structions" and the „Proper use" are observed
along with the whole of the operating instructions.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• When cutting plastic material, please always use
clamps: the parts which should be cut must always
be fixed between the clamps.
• Avoid accidental starting of the machine: the op-
erating button may not be pressed when inserting
the plug in an outlet.
• Use the tool that is recommended in this manu-
al. In doing so, your saw provides optimal perfor-
mance.
• Hands may never enter the processing zone when
the machine is in operation. Release the handle
button and switch off the machine prior to any op-
erations.
• Prior to any adjustment, maintenance or service
work disconnect the mains power plug!

6. Technical data

AC motor
performance
operating mode
Idle speed
Hard-metal blade
Number of teeth
Thickness riving knife
table size
Cutting height max.
90°
Cutting height max.
45°
height adjustment
saw blade swivel
suction port
weight
* operating mode S6 20%: Continuous opera-
tion with intermittent loading (playing time 10
min). Engine protection of to hot warming up:
It´s allowed to run the engine with nominal pow-
er maximum 20% of playing time. After this the
machine must run 80% of playing time steadily
without load.
Noise values
The total noise values determined in accordance
with EN 61029.
220-240 V~ 50Hz
2000 Watt
S6 20%*
4800 min
-1
ø 255 x ø 30 x 2,8 mm
60
2,5 mm
640 x 640 (990) mm
80 mm
50 mm
0 - 80 mm
0 - 45°
ø 40 mm
31 5 kg
