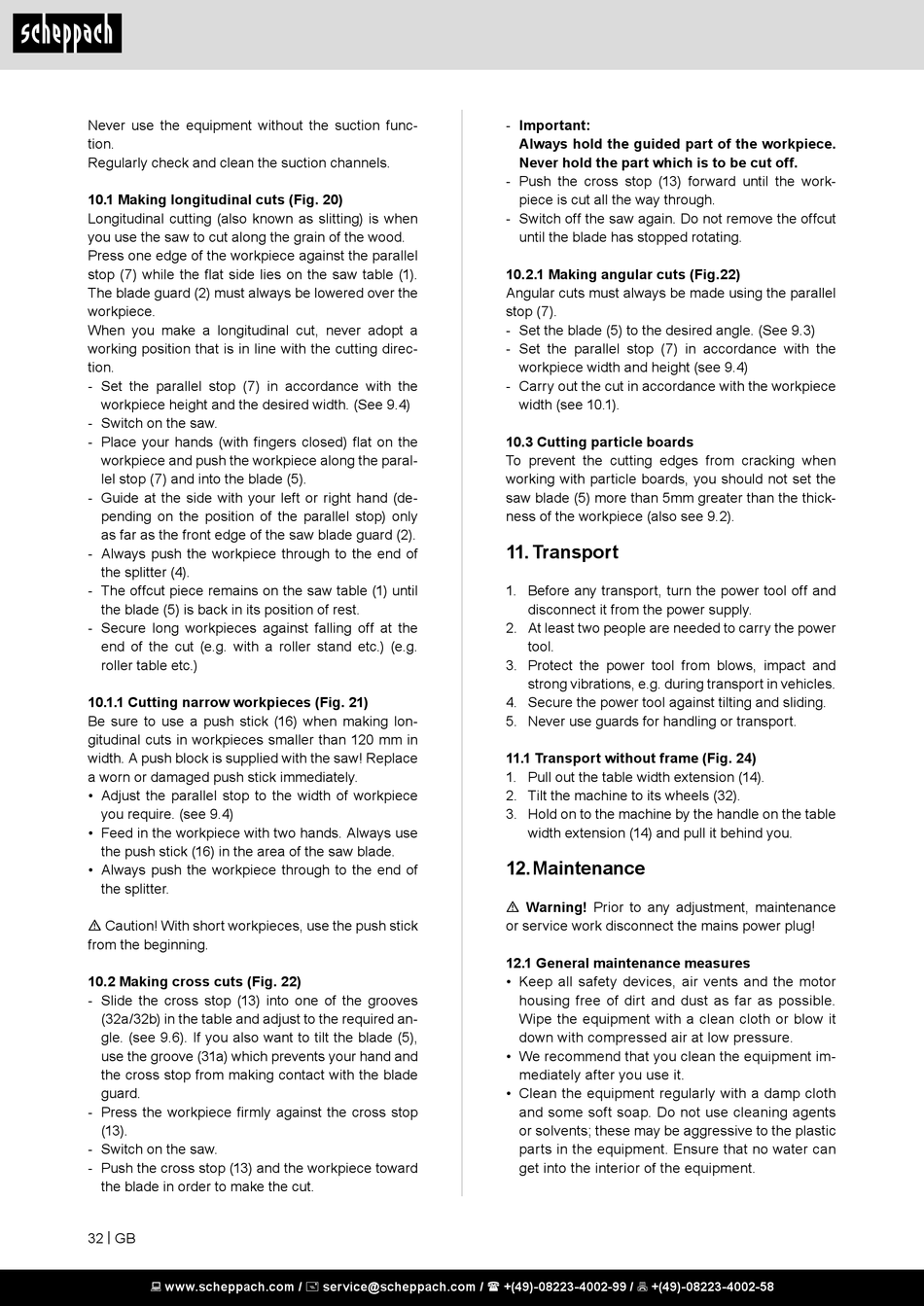

Never use the equipment without the suction func-
tion.
Regularly check and clean the suction channels.
10.1 Making longitudinal cuts (Fig. 20)
Longitudinal cutting (also known as slitting) is when
you use the saw to cut along the grain of the wood.
Press one edge of the workpiece against the parallel
stop (7) while the flat side lies on the saw table (1).
The blade guard (2) must always be lowered over the
workpiece.
When you make a longitudinal cut, never adopt a
working position that is in line with the cutting direc-
tion.
- Set the parallel stop (7) in accordance with the
workpiece height and the desired width. (See 9.4)
- Switch on the saw.
- Place your hands (with fingers closed) flat on the
workpiece and push the workpiece along the paral-
lel stop (7) and into the blade (5).
- Guide at the side with your left or right hand (de-
pending on the position of the parallel stop) only
as far as the front edge of the saw blade guard (2).
- Always push the workpiece through to the end of
the splitter (4).
- The offcut piece remains on the saw table (1) until
the blade (5) is back in its position of rest.
- Secure long workpieces against falling off at the
end of the cut (e.g. with a roller stand etc.) (e.g.
roller table etc.)
10.1.1 Cutting narrow workpieces (Fig. 21)
Be sure to use a push stick (16) when making lon-
gitudinal cuts in workpieces smaller than 120 mm in
width. A push block is supplied with the saw! Replace
a worn or damaged push stick immediately.
• Adjust the parallel stop to the width of workpiece
you require. (see 9.4)
• Feed in the workpiece with two hands. Always use
the push stick (16) in the area of the saw blade.
• Always push the workpiece through to the end of
the splitter.
m Caution! With short workpieces, use the push stick
from the beginning.
10.2 Making cross cuts (Fig. 22)
- Slide the cross stop (13) into one of the grooves
(32a/32b) in the table and adjust to the required an-
gle. (see 9.6). If you also want to tilt the blade (5),
use the groove (31a) which prevents your hand and
the cross stop from making contact with the blade
guard.
- Press the workpiece firmly against the cross stop
(13).
- Switch on the saw.
- Push the cross stop (13) and the workpiece toward
the blade in order to make the cut.
32 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
- Important:
Always hold the guided part of the workpiece.
Never hold the part which is to be cut off.
- Push the cross stop (13) forward until the work-
piece is cut all the way through.
- Switch off the saw again. Do not remove the offcut
until the blade has stopped rotating.
10.2.1 Making angular cuts (Fig.22)
Angular cuts must always be made using the parallel
stop (7).
- Set the blade (5) to the desired angle. (See 9.3)
- Set the parallel stop (7) in accordance with the
workpiece width and height (see 9.4)
- Carry out the cut in accordance with the workpiece
width (see 10.1).
10.3 Cutting particle boards
To prevent the cutting edges from cracking when
working with particle boards, you should not set the
saw blade (5) more than 5mm greater than the thick-
ness of the workpiece (also see 9.2).

11. Transport

1. Before any transport, turn the power tool off and
disconnect it from the power supply.
2. At least two people are needed to carry the power
tool.
3. Protect the power tool from blows, impact and
strong vibrations, e.g. during transport in vehicles.
4. Secure the power tool against tilting and sliding.
5. Never use guards for handling or transport.
11.1 Transport without frame (Fig. 24)
1. Pull out the table width extension (14).
2. Tilt the machine to its wheels (32).
3. Hold on to the machine by the handle on the table
width extension (14) and pull it behind you.

12. Maintenance

m Warning! Prior to any adjustment, maintenance
or service work disconnect the mains power plug!
12.1 General maintenance measures
• Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
down with compressed air at low pressure.
• We recommend that you clean the equipment im-
mediately after you use it.
• Clean the equipment regularly with a damp cloth
and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plastic
parts in the equipment. Ensure that no water can
get into the interior of the equipment.
