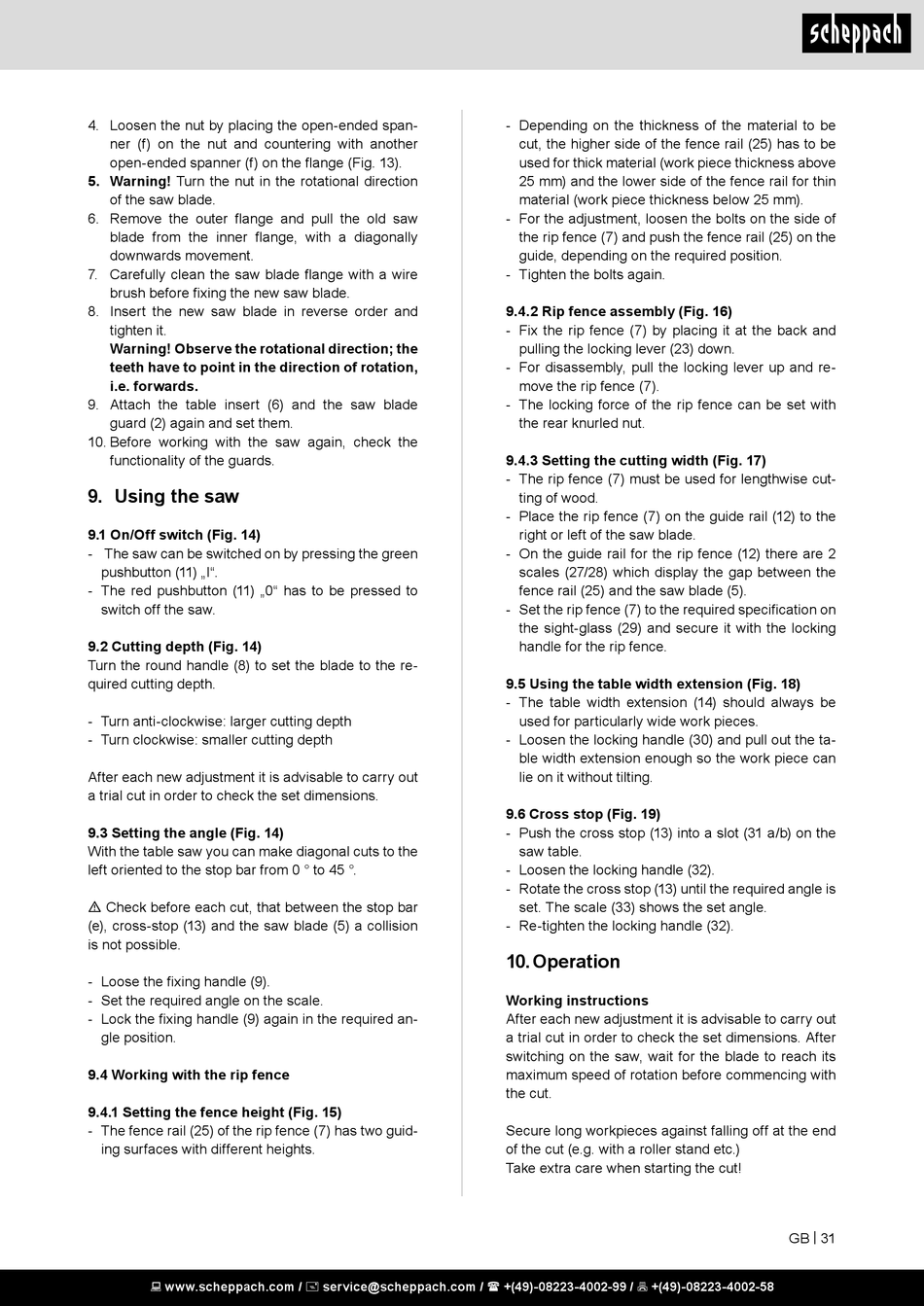

4. Loosen the nut by placing the open-ended span-
ner (f) on the nut and countering with another
open-ended spanner (f) on the flange (Fig. 13).
5. Warning! Turn the nut in the rotational direction
of the saw blade.
6. Remove the outer flange and pull the old saw
blade from the inner flange, with a diagonally
downwards movement.
7. Carefully clean the saw blade flange with a wire
brush before fixing the new saw blade.
8. Insert the new saw blade in reverse order and
tighten it.
Warning! Observe the rotational direction; the
teeth have to point in the direction of rotation,
i.e. forwards.
9. Attach the table insert (6) and the saw blade
guard (2) again and set them.
10. Before working with the saw again, check the
functionality of the guards.

9. Using the saw

9.1 On/Off switch (Fig. 14)
- The saw can be switched on by pressing the green
pushbutton (11) „I".
- The red pushbutton (11) „0" has to be pressed to
switch off the saw.
9.2 Cutting depth (Fig. 14)
Turn the round handle (8) to set the blade to the re-
quired cutting depth.
- Turn anti-clockwise: larger cutting depth
- Turn clockwise: smaller cutting depth
After each new adjustment it is advisable to carry out
a trial cut in order to check the set dimensions.
9.3 Setting the angle (Fig. 14)
With the table saw you can make diagonal cuts to the
left oriented to the stop bar from 0 ° to 45 °.
m Check before each cut, that between the stop bar
(e), cross-stop (13) and the saw blade (5) a collision
is not possible.
- Loose the fixing handle (9).
- Set the required angle on the scale.
- Lock the fixing handle (9) again in the required an-
gle position.
9.4 Working with the rip fence
9.4.1 Setting the fence height (Fig. 15)
- The fence rail (25) of the rip fence (7) has two guid-
ing surfaces with different heights.
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
- Depending on the thickness of the material to be
cut, the higher side of the fence rail (25) has to be
used for thick material (work piece thickness above
25 mm) and the lower side of the fence rail for thin
material (work piece thickness below 25 mm).
- For the adjustment, loosen the bolts on the side of
the rip fence (7) and push the fence rail (25) on the
guide, depending on the required position.
- Tighten the bolts again.
9.4.2 Rip fence assembly (Fig. 16)
- Fix the rip fence (7) by placing it at the back and
pulling the locking lever (23) down.
- For disassembly, pull the locking lever up and re-
move the rip fence (7).
- The locking force of the rip fence can be set with
the rear knurled nut.
9.4.3 Setting the cutting width (Fig. 17)
- The rip fence (7) must be used for lengthwise cut-
ting of wood.
- Place the rip fence (7) on the guide rail (12) to the
right or left of the saw blade.
- On the guide rail for the rip fence (12) there are 2
scales (27/28) which display the gap between the
fence rail (25) and the saw blade (5).
- Set the rip fence (7) to the required specification on
the sight-glass (29) and secure it with the locking
handle for the rip fence.
9.5 Using the table width extension (Fig. 18)
- The table width extension (14) should always be
used for particularly wide work pieces.
- Loosen the locking handle (30) and pull out the ta-
ble width extension enough so the work piece can
lie on it without tilting.
9.6 Cross stop (Fig. 19)
- Push the cross stop (13) into a slot (31 a/b) on the
saw table.
- Loosen the locking handle (32).
- Rotate the cross stop (13) until the required angle is
set. The scale (33) shows the set angle.
- Re-tighten the locking handle (32).

10. Operation

Working instructions
After each new adjustment it is advisable to carry out
a trial cut in order to check the set dimensions. After
switching on the saw, wait for the blade to reach its
maximum speed of rotation before commencing with
the cut.
Secure long workpieces against falling off at the end
of the cut (e.g. with a roller stand etc.)
Take extra care when starting the cut!
