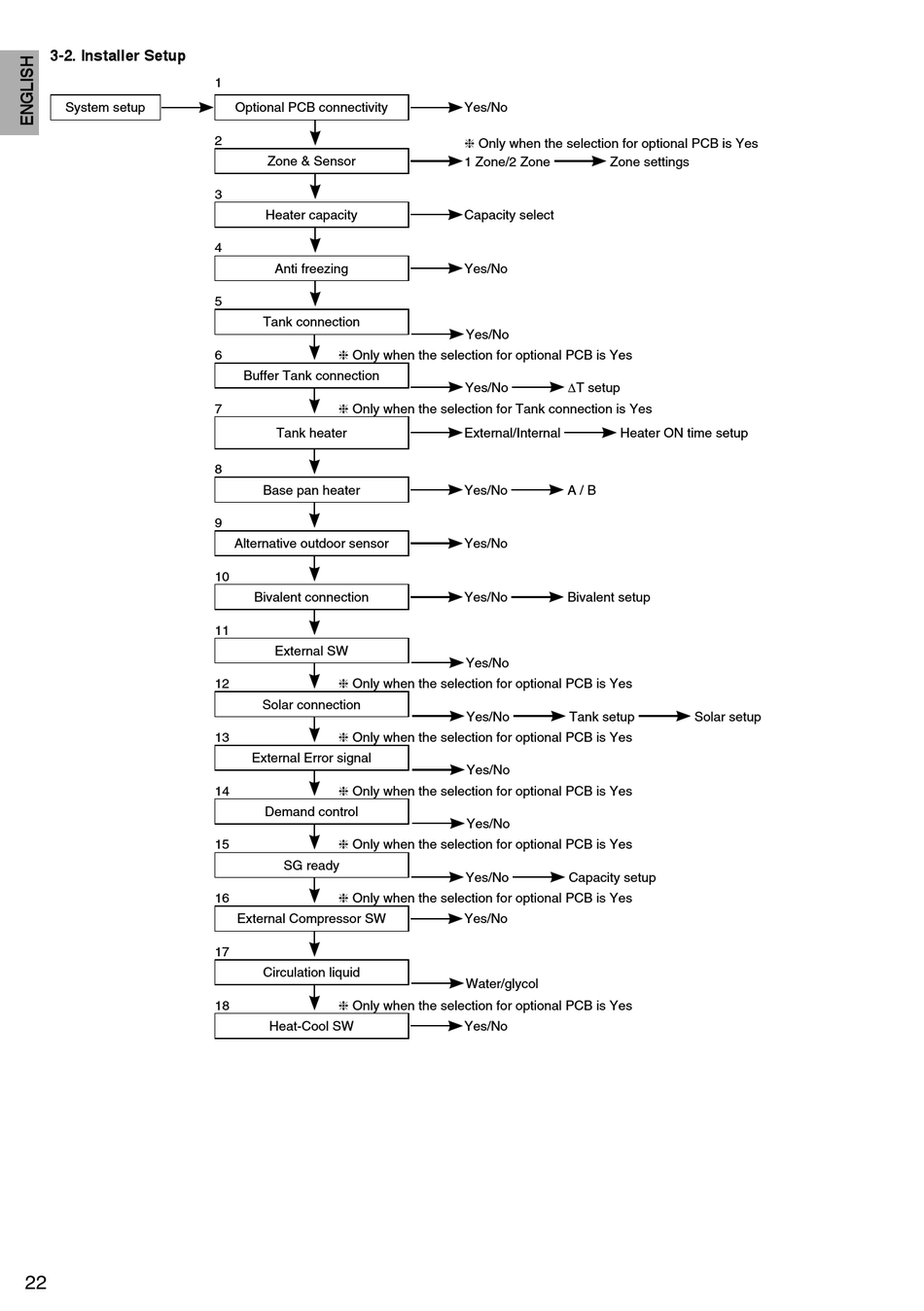

3-2. Installer Setup
System setup
22
1
Optional PCB connectivity
2
Zone & Sensor
3
Heater capacity
4
Anti freezing
5
Tank connection
Only when the selection for optional PCB is Yes
6
Buffer Tank connection
Only when the selection for Tank connection is Yes
7
Tank heater
8
Base pan heater
9
Alternative outdoor sensor
10
Bivalent connection
11
External SW
Only when the selection for optional PCB is Yes
12
Solar connection
Only when the selection for optional PCB is Yes
13
External Error signal
Only when the selection for optional PCB is Yes
14
Demand control
Only when the selection for optional PCB is Yes
15
SG ready
Only when the selection for optional PCB is Yes
16
External Compressor SW
17
Circulation liquid
Only when the selection for optional PCB is Yes
18
Heat-Cool SW
Yes/No
Only when the selection for optional PCB is Yes
1 Zone/2 Zone Zone settings
Capacity select
Yes/No
Yes/No
T setup
Yes/No
External/Internal Heater ON time setup
Yes/No A / B
Yes/No
Yes/No Bivalent setup
Yes/No
Yes/No Tank setup
Yes/No
Yes/No
Yes/No Capacity setup
Yes/No
Water/glycol
Yes/No
Solar setup
