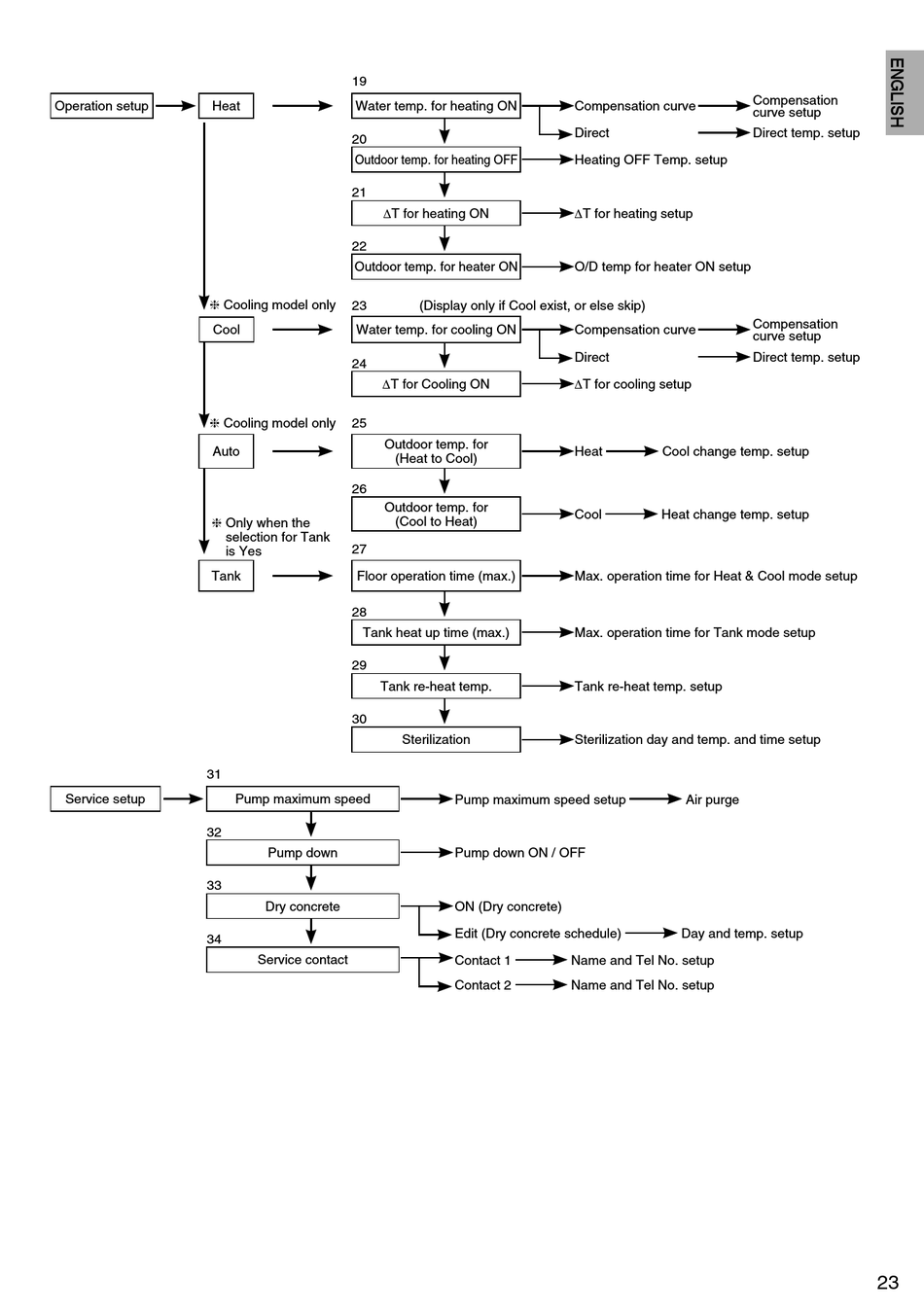

Operation setup Heat
Cooling model only
Cool
Cooling model only
Auto
 O nly when the
selection for Tank
is Yes
Tank
31
Service setup
32
33
34
19
Water temp. for heating ON
20
Outdoor temp. for heating OFF
21
T for heating ON
22
Outdoor temp. for heater ON
23
Water temp. for cooling ON
24
T for Cooling ON
25
Outdoor temp. for
(Heat to Cool)
26
Outdoor temp. for
(Cool to Heat)
27
Floor operation time (max.)
28
Tank heat up time (max.)
29
Tank re-heat temp.
30
Sterilization
Pump maximum speed
Pump down
Dry concrete
Service contact
Compensation curve
Direct
Heating OFF Temp. setup
T for heating setup
O/D temp for heater ON setup
(Display only if Cool exist, or else skip)
Compensation curve
Direct
T for cooling setup
Heat
Cool
Max. operation time for Heat & Cool mode setup
Max. operation time for Tank mode setup
Tank re-heat temp. setup
Sterilization day and temp. and time setup
Pump maximum speed setup
Pump down ON / OFF
ON (Dry concrete)
Edit (Dry concrete schedule)
Contact 1 Name and Tel No. setup
Contact 2 Name and Tel No. setup
Compensation
curve setup
Direct temp. setup
Compensation
curve setup
Direct temp. setup
Cool change temp. setup
Heat change temp. setup
Air purge
Day and temp. setup
23
