EtherCAT® data transmission and configuration
96
In order to carry out real-time measurements, the inputs/
outputs of the real-time task must be linked with the
inputs/outputs of Box 1 (TIM­EC).

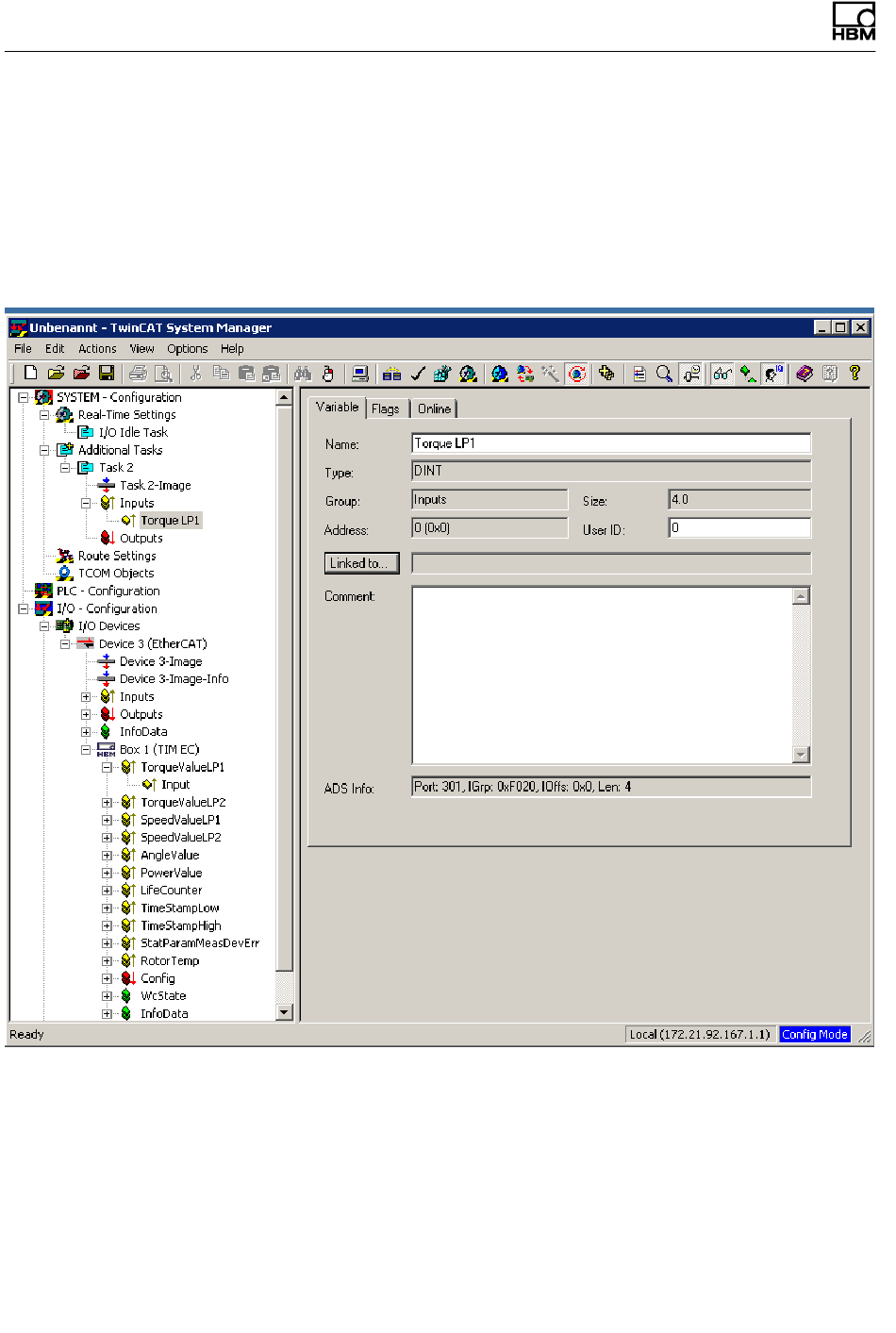

To do this, a right-click is implemented as shown in the
image below and a new variable is created.
This new variable is then linked:
A3704-4.0 HBM: public
