In direction of arrow
F1A
F1A
complementary
F2B
F2B
complementary
Zero index A
Zero index B
complementary
TIM-EC
Glitch filter
If double edges or interferences occur in the transducer,
these can be rectified with the aid of the glitch filter. 1μs
means for instance that no further edges are evaluated
for 1μs after an edge has been detected.
HBM speed measuring system definition

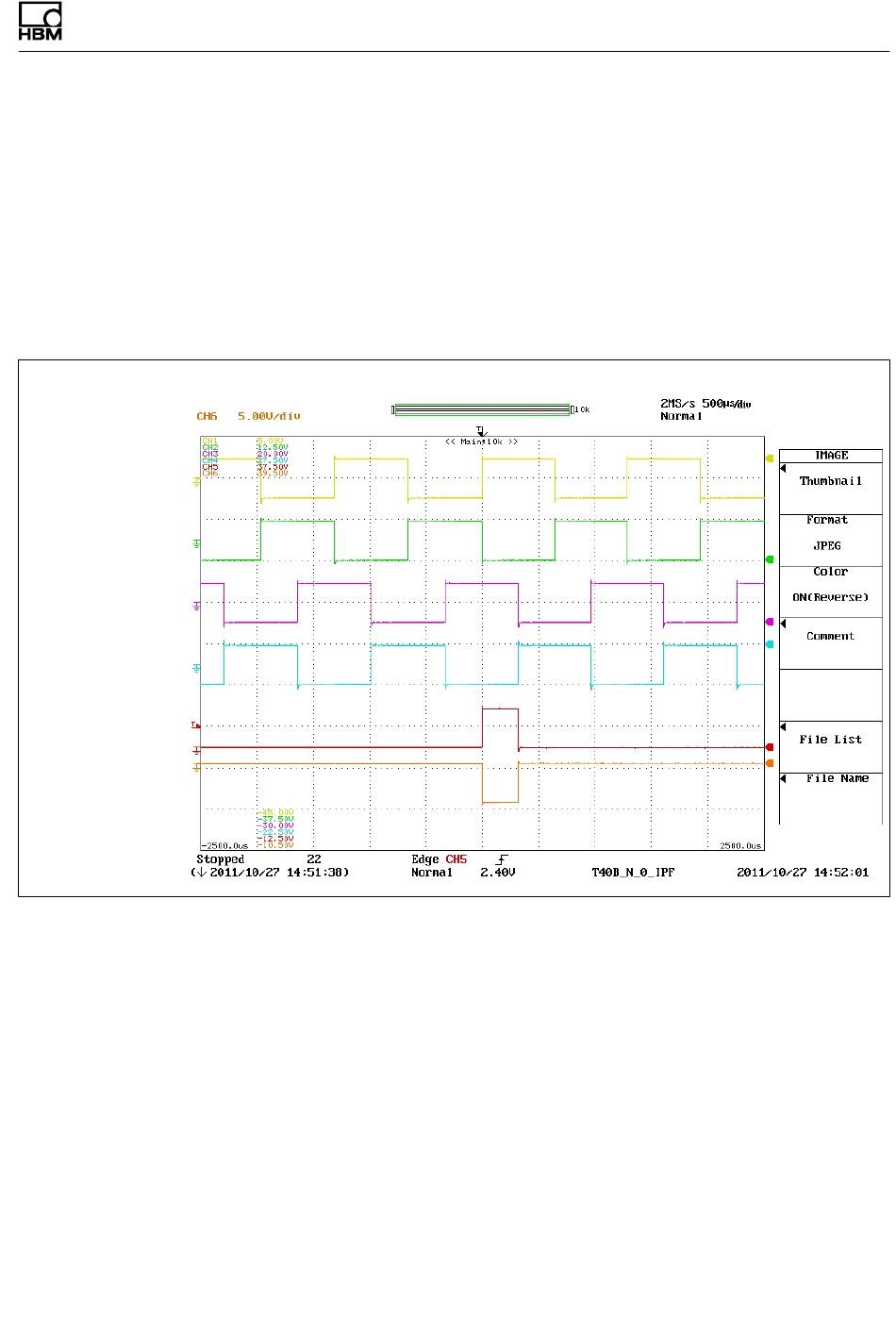

Fig. 10.25 Speed and reference pulse T40B in direction of
arrow
The positive edges of the reference pulse and the speed
F1 occur at the same time. The speed signal F2 leads by
90° compared to F1.
A3704-4.0 HBM: public
Settings
