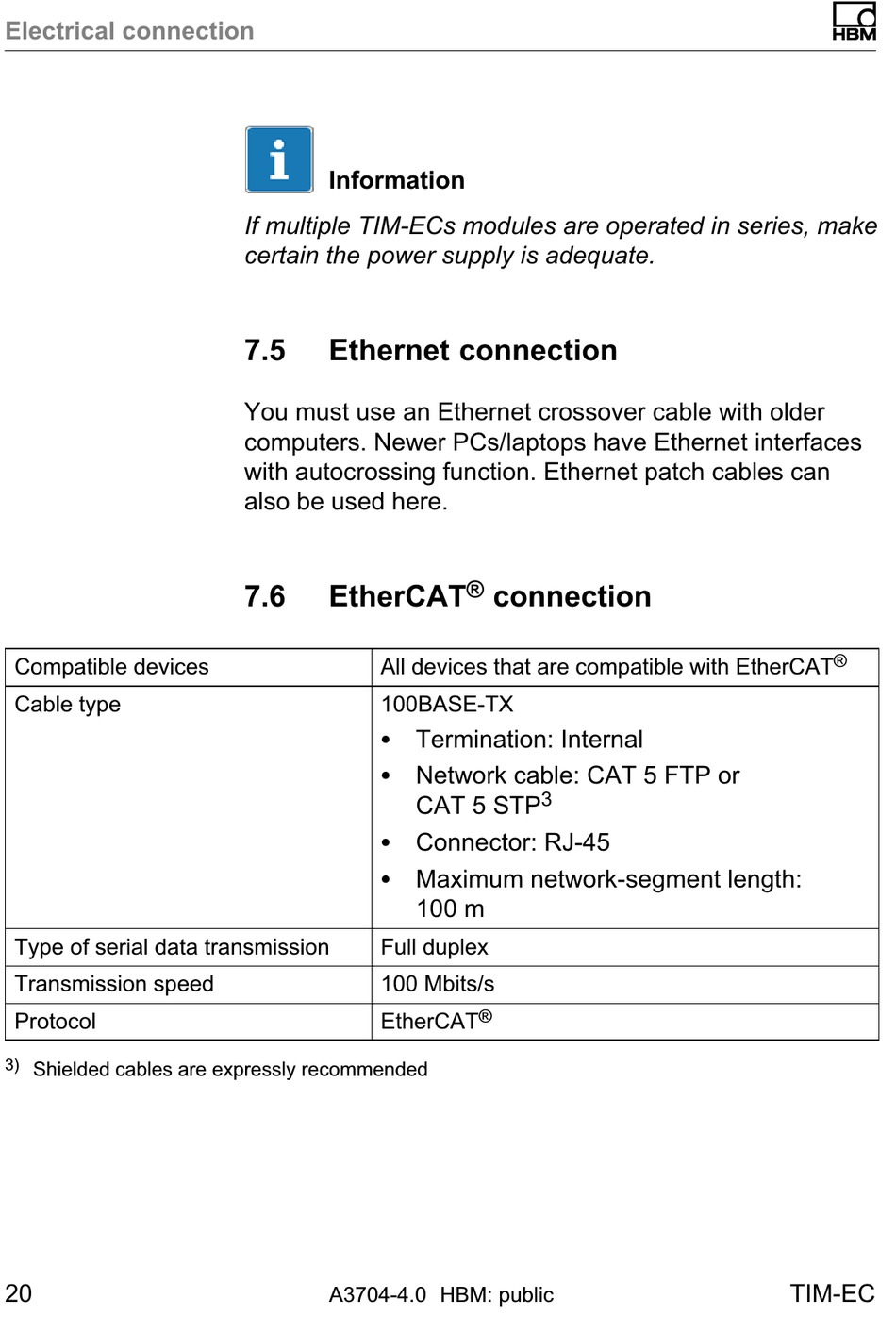

Ethernet Connection; Ethercat® Connection - Hbm Tim-Ec Montageanleitung

Electrical connection
Compatible devices
Cable type
Type of serial data transmission
Transmission speed
Protocol
3)
Shielded cables are expressly recommended
20
Information
If multiple TIM-ECs modules are operated in series, make
certain the power supply is adequate.
7.5

Ethernet connection

You must use an Ethernet crossover cable with older
computers. Newer PCs/laptops have Ethernet interfaces
with autocrossing function. Ethernet patch cables can
also be used here.
7.6 EtherCAT
All devices that are compatible with EtherCAT
100BASE­TX
S Termination: Internal
S Network cable: CAT 5 FTP or
S Connector: RJ­45
S Maximum network­segment length:
Full duplex
100 Mbits/s
EtherCAT
A3704-4.0 HBM: public
®
connection
3
CAT 5 STP
100 m
®
®
TIM-EC
