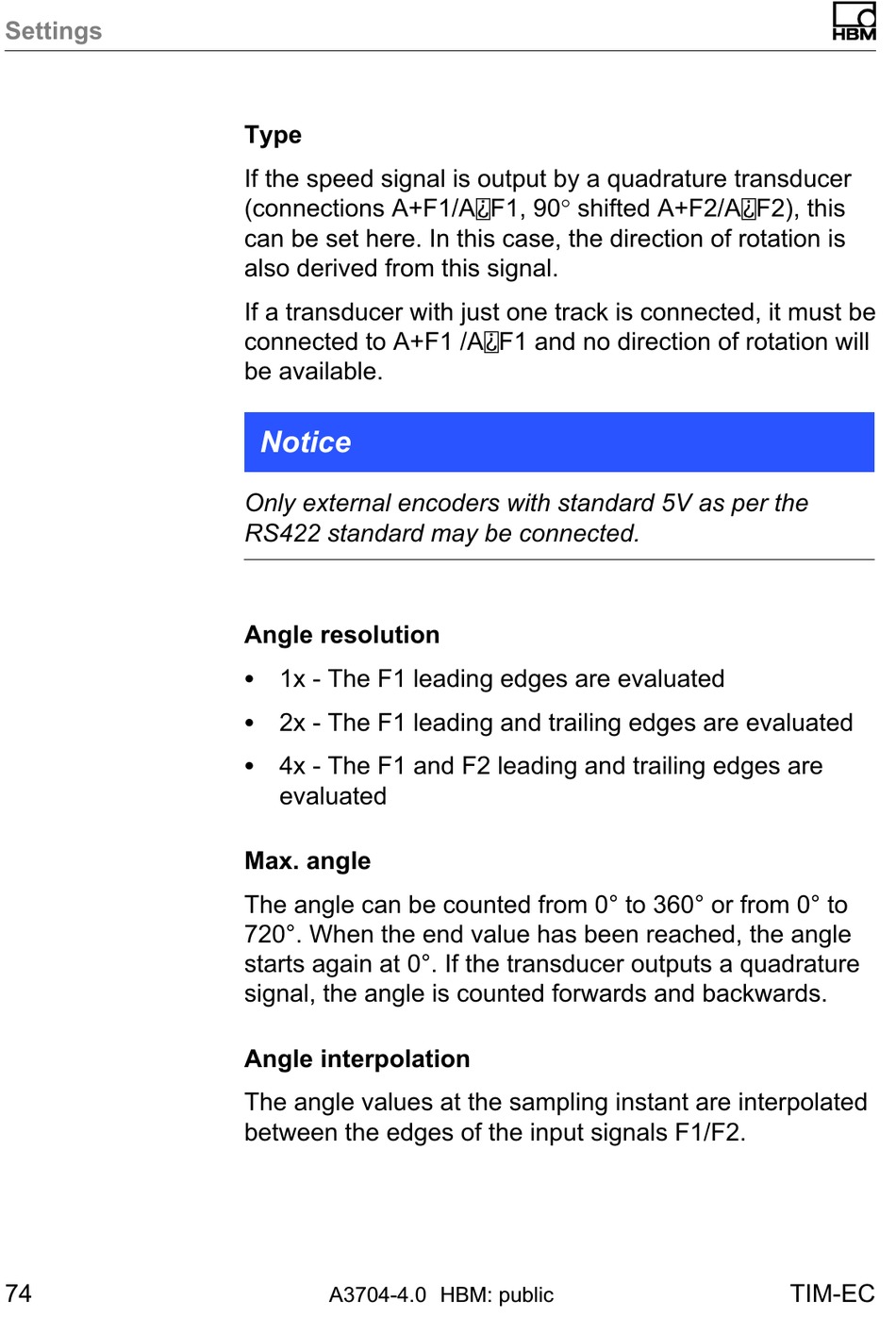

Settings
74
Type
If the speed signal is output by a quadrature transducer
(connections A+F1/A F1, 90° shifted A+F2/A F2), this
can be set here. In this case, the direction of rotation is
also derived from this signal.
If a transducer with just one track is connected, it must be
connected to A+F1 /A F1 and no direction of rotation will
be available.
Notice
Only external encoders with standard 5V as per the
RS422 standard may be connected.
Angle resolution
S 1x - The F1 leading edges are evaluated
S 2x - The F1 leading and trailing edges are evaluated
S 4x - The F1 and F2 leading and trailing edges are
evaluated
Max. angle
The angle can be counted from 0° to 360° or from 0° to
720°. When the end value has been reached, the angle
starts again at 0°. If the transducer outputs a quadrature
signal, the angle is counted forwards and backwards.
Angle interpolation
The angle values at the sampling instant are interpolated
between the edges of the input signals F1/F2.
