TIM-EC
EtherCAT® data transmission and configuration
11.2 Setting up TIM-EC with
Beckhoff-TwinCAT
1. Copy actual ESI­file "HBM TIMB xx.xml" to c:TwinCA­
TIoEtherCAT.

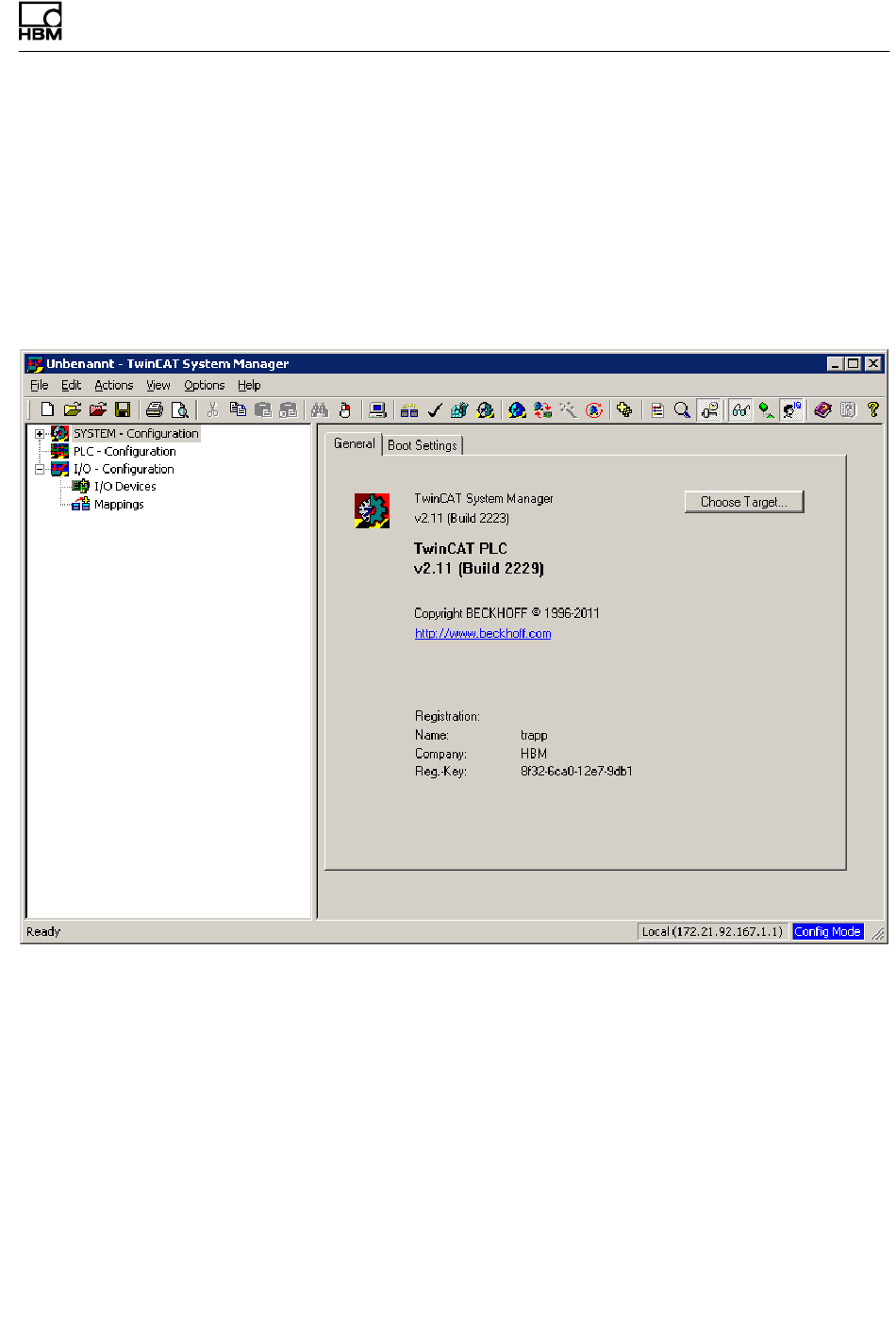

2. Start the TwinCAT System Manager:
3. Select File New to create a new project
4. Under Options, List real-time Ethernet compatible
devices..., select the network adapter:
A3704-4.0 HBM: public
©
Manager
