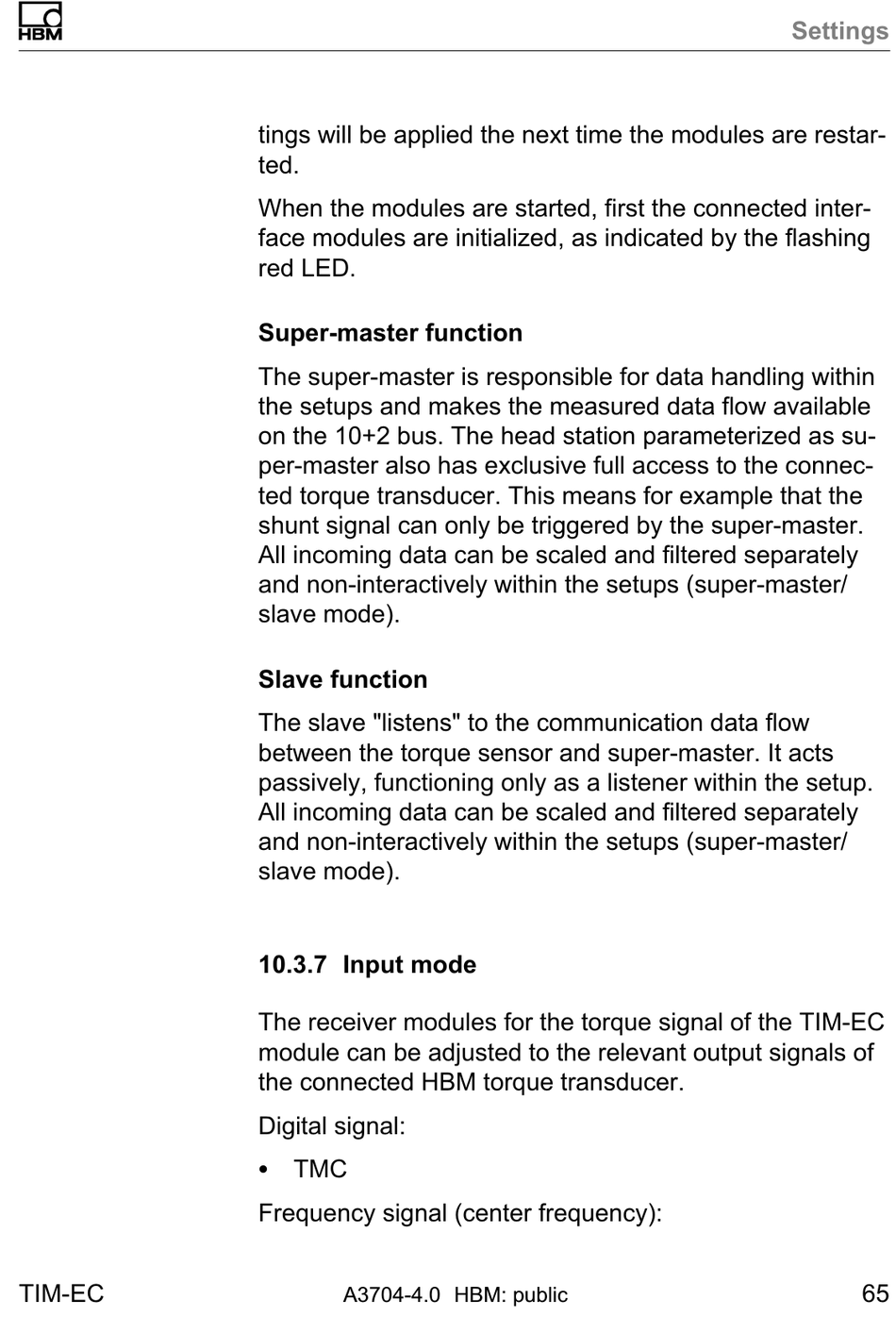

tings will be applied the next time the modules are restar­
ted.
When the modules are started, first the connected inter­
face modules are initialized, as indicated by the flashing
red LED.
Super-master function
The super-master is responsible for data handling within
the setups and makes the measured data flow available
on the 10+2 bus. The head station parameterized as su­
per-master also has exclusive full access to the connec­
ted torque transducer. This means for example that the
shunt signal can only be triggered by the super-master.
All incoming data can be scaled and filtered separately
and non-interactively within the setups (super-master/
slave mode).
Slave function
The slave "listens" to the communication data flow
between the torque sensor and super-master. It acts
passively, functioning only as a listener within the setup.
All incoming data can be scaled and filtered separately
and non-interactively within the setups (super-master/
slave mode).

10.3.7 Input mode

The receiver modules for the torque signal of the TIM-EC
module can be adjusted to the relevant output signals of
the connected HBM torque transducer.
Digital signal:
S TMC
Frequency signal (center frequency):
TIM-EC 65
