6 Installation
6.1 Mounting
Three M4 threaded holes in the bottom of the LLB measuring system make it easy to mount
the device.
Always obey all applicable safety regulations and never use the device outside the
specifications stated under chapter 7 "Specifications" on page 119.
6.1.1 Mounting for the reflective plate

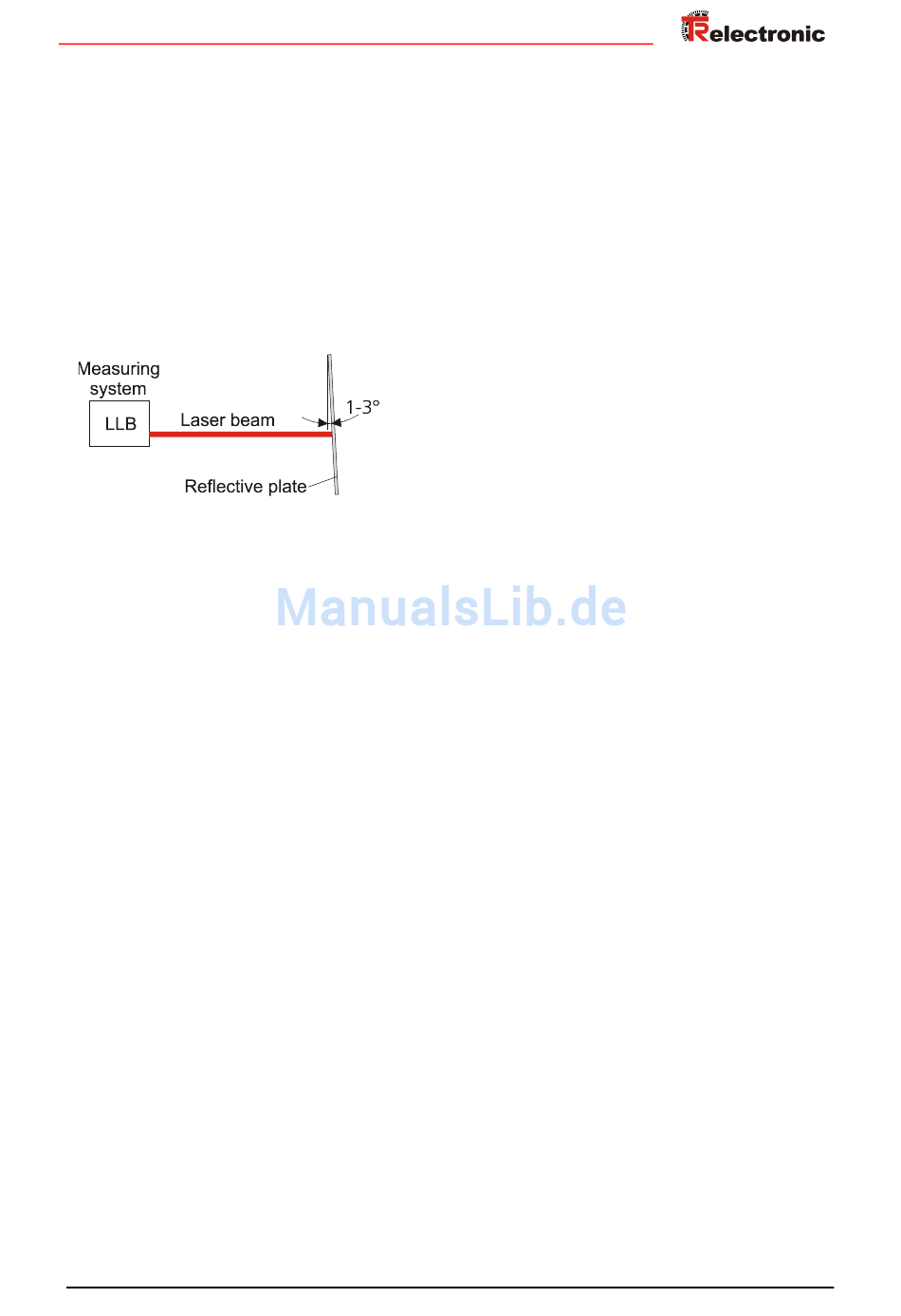

Figure 13: Reflective Plate mounting
6.1.2 Laser Life time consideration
Since the life time of the laser is limited, operate the device in a way that the laser is switched on only
when necessary.
Printed in the Federal Republic of Germany
03/09/2016
Measuring to the reflective plate may generate erroneous
measurements, if the reflective plate is mounted exactly
at an angle of 90° to the laser beam. Therefore mount the
reflective plate like shown in Figure 13.
Avoid direct sunlight on the reflective plate to increase
measurement performance.
TR - ELE - BA - DGB - 0021 - 06
TR-Electronic GmbH 2011, All Rights Reserved
Page 113 of 156
