SM-E2B SERIES, WSM

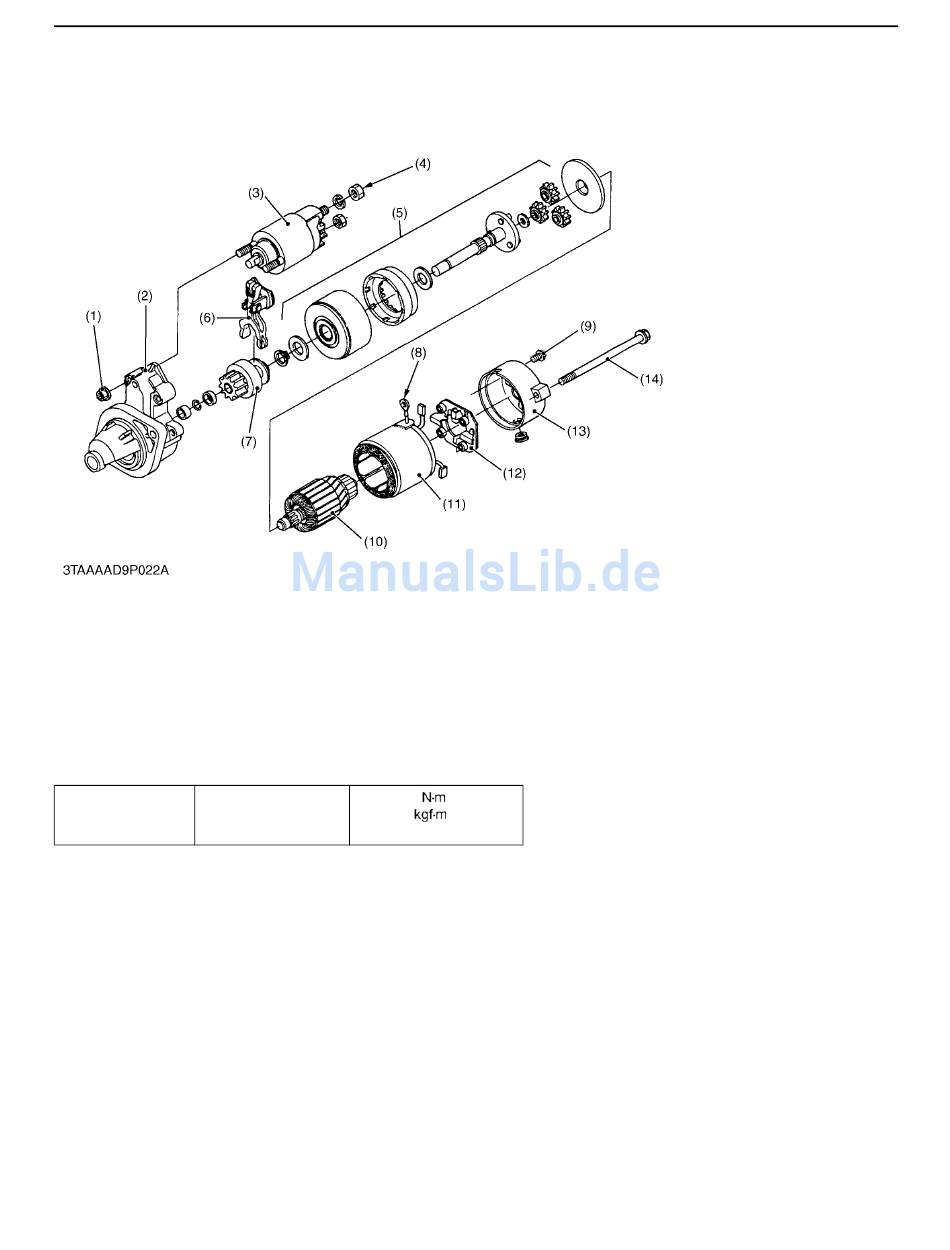

(9) Starter (Planetary Gear Reduction Type)

1. Unscrew the C terminal nut (4), and disconnect the connecting lead (8).
2. Unscrew the magnetic switch mounting nuts (1), and remove the magnetic switch (3) from the housing (2).
3. Unscrew the through bolts (14) and mounting screw (9), and remove the rear end frame (13).
4. Remove the brush from the brush holder while holding the spring up.
5. Remove the brush holder (12).
6. Draw out the armature (10) and yoke (11) from the housing.
7. Draw out the shaft assembly (5) with the drive lever (6) and overrunning clutch (7) from the housing.
(When reassembling)
Tightening torque C Terminal Nut
5.9 to 11.8
0.6 to 1.2
4.3 to 8.7 ft-lbs
S-53
DIESEL ENGINE
(1) Magnetic Switch
Mounting Nut
(2) Housing
(3) Magnetic Switch
(4) C Terminal Nut
(5) Shaft Assembly
(6) Drive Lever
(7) Overrunning Clutch
(8) Connecting Lead
(9) Mounting Screw
(10) Armature
(11) Yoke
(12) Brush Holder
(13) Rear End Frame
(14) Through Bolt
0000001167E
