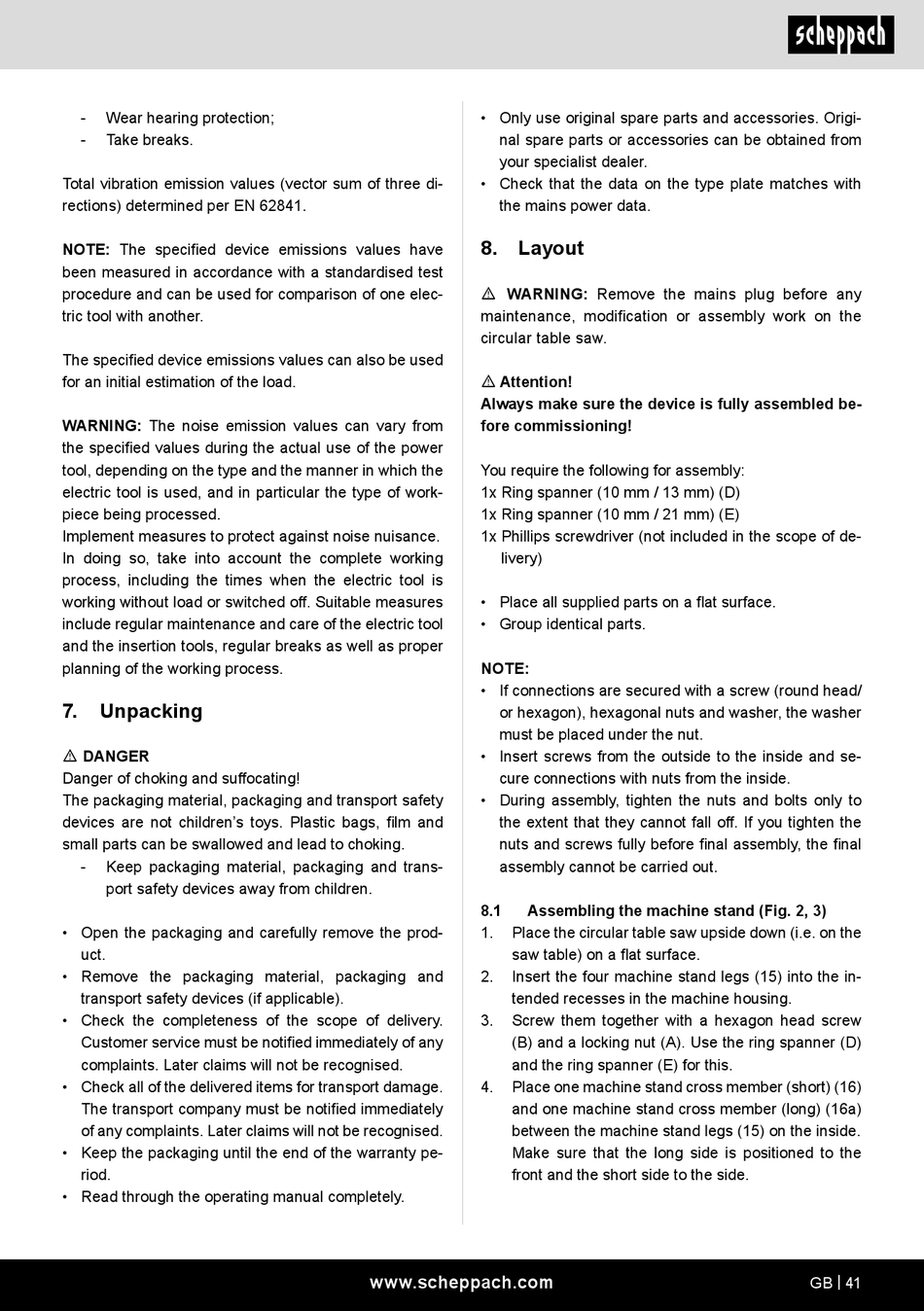

- Wear hearing protection;
- Take breaks.
Total vibration emission values (vector sum of three di-
rections) determined per EN 62841.
NOTE: The specified device emissions values have
been measured in accordance with a standardised test
procedure and can be used for comparison of one elec-
tric tool with another.
The specified device emissions values can also be used
for an initial estimation of the load.
WARNING: The noise emission values can vary from
the specified values during the actual use of the power
tool, depending on the type and the manner in which the
electric tool is used, and in particular the type of work-
piece being processed.
Implement measures to protect against noise nuisance.
In doing so, take into account the complete working
process, including the times when the electric tool is
working without load or switched off. Suitable measures
include regular maintenance and care of the electric tool
and the insertion tools, regular breaks as well as proper
planning of the working process.
7. Unpacking
m DANGER
Danger of choking and suffocating!
The packaging material, packaging and transport safety
devices are not children's toys. Plastic bags, film and
small parts can be swallowed and lead to choking.
- Keep packaging material, packaging and trans-
port safety devices away from children.
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, packaging and
transport safety devices (if applicable).
• Check the completeness of the scope of delivery.
Customer service must be notified immediately of any
complaints. Later claims will not be recognised.
• Check all of the delivered items for transport damage.
The transport company must be notified immediately
of any complaints. Later claims will not be recognised.
• Keep the packaging until the end of the warranty pe-
riod.
• Read through the operating manual completely.
• Only use original spare parts and accessories. Origi-
nal spare parts or accessories can be obtained from
your specialist dealer.
• Check that the data on the type plate matches with
the mains power data.
8. Layout
m WARNING: Remove the mains plug before any
maintenance, modification or assembly work on the
circular table saw.
m Attention!
Always make sure the device is fully assembled be-
fore commissioning!
You require the following for assembly:
1x Ring spanner (10 mm / 13 mm) (D)
1x Ring spanner (10 mm / 21 mm) (E)
1x Phillips screwdriver (not included in the scope of de-
livery)
• Place all supplied parts on a flat surface.
• Group identical parts.
NOTE:
• If connections are secured with a screw (round head/
or hexagon), hexagonal nuts and washer, the washer
must be placed under the nut.
• Insert screws from the outside to the inside and se-
cure connections with nuts from the inside.
• During assembly, tighten the nuts and bolts only to
the extent that they cannot fall off. If you tighten the
nuts and screws fully before final assembly, the final
assembly cannot be carried out.
8.1 Assembling the machine stand (Fig. 2, 3)
1. Place the circular table saw upside down (i.e. on the
saw table) on a flat surface.
2. Insert the four machine stand legs (15) into the in-
tended recesses in the machine housing.
3. Screw them together with a hexagon head screw
(B) and a locking nut (A). Use the ring spanner (D)
and the ring spanner (E) for this.
4. Place one machine stand cross member (short) (16)
and one machine stand cross member (long) (16a)
between the machine stand legs (15) on the inside.
Make sure that the long side is positioned to the
front and the short side to the side.
