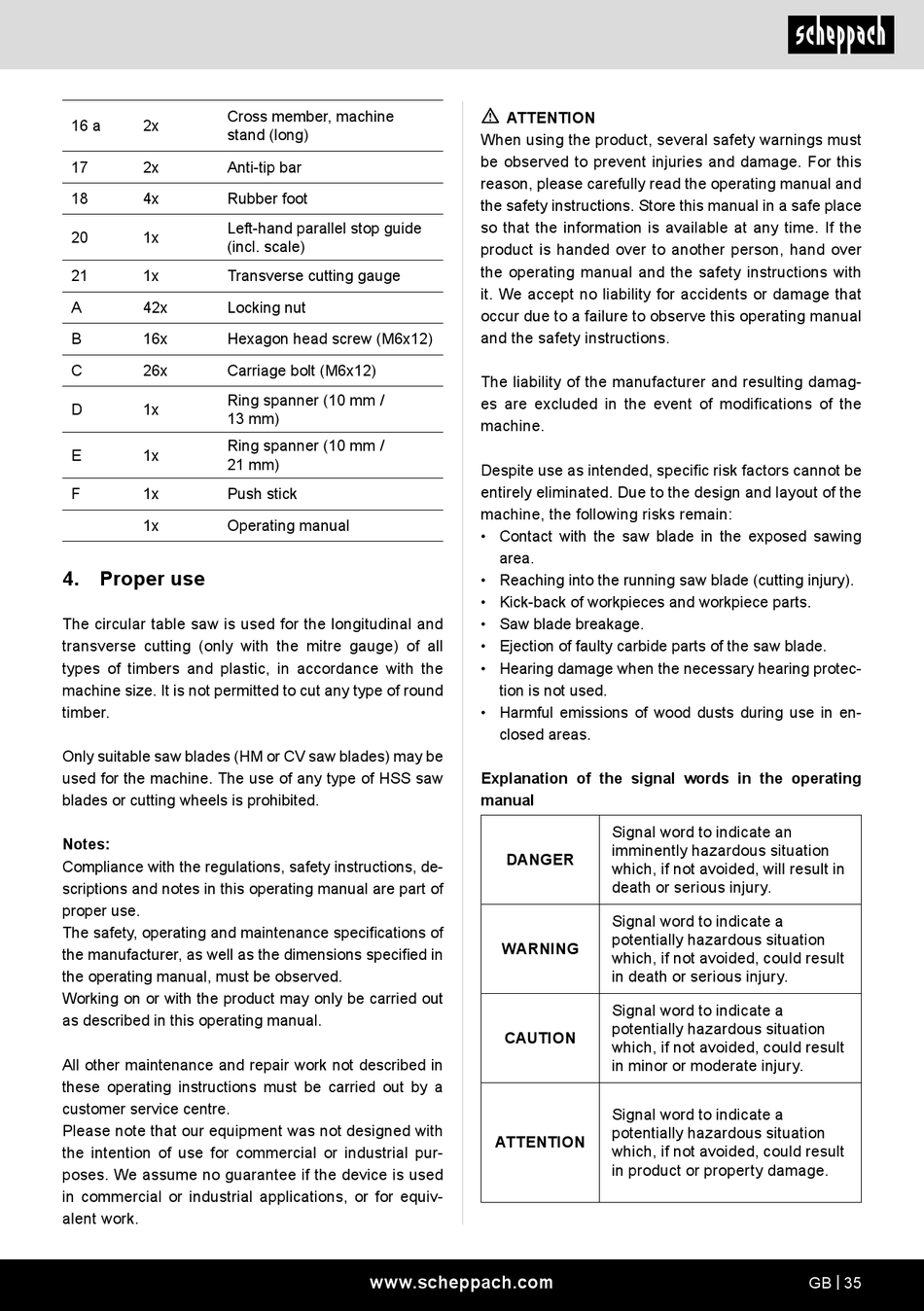

Scheppach HS254 Originalbetriebsanleitung Seite 35

Cross member, machine
16 a 2x
stand (long)
17 2x Anti-tip bar
18 4x Rubber foot
Left-hand parallel stop guide
20 1x
(incl. scale)
21 1x Transverse cutting gauge
A 42x Locking nut
B 16x Hexagon head screw (M6x12)
C 26x Carriage bolt (M6x12)
Ring spanner (10 mm /
D 1x
13 mm)
Ring spanner (10 mm /
E 1x
21 mm)
F 1x Push stick
1x Operating manual
4. Proper use
The circular table saw is used for the longitudinal and
transverse cutting (only with the mitre gauge) of all
types of timbers and plastic, in accordance with the
machine size. It is not permitted to cut any type of round
timber.
Only suitable saw blades (HM or CV saw blades) may be
used for the machine. The use of any type of HSS saw
blades or cutting wheels is prohibited.
Notes:
Compliance with the regulations, safety instructions, de-
scriptions and notes in this operating manual are part of
proper use.
The safety, operating and maintenance specifications of
the manufacturer, as well as the dimensions specified in
the operating manual, must be observed.
Working on or with the product may only be carried out
as described in this operating manual.
All other maintenance and repair work not described in
these operating instructions must be carried out by a
customer service centre.
Please note that our equipment was not designed with
the intention of use for commercial or industrial pur-
poses. We assume no guarantee if the device is used
in commercial or industrial applications, or for equiv-
alent work.
m
ATTENTION
When using the product, several safety warnings must
be observed to prevent injuries and damage. For this
reason, please carefully read the operating manual and
the safety instructions. Store this manual in a safe place
so that the information is available at any time. If the
product is handed over to another person, hand over
the operating manual and the safety instructions with
it. We accept no liability for accidents or damage that
occur due to a failure to observe this operating manual
and the safety instructions.
The liability of the manufacturer and resulting damag-
es are excluded in the event of modifications of the
machine.
Despite use as intended, specific risk factors cannot be
entirely eliminated. Due to the design and layout of the
machine, the following risks remain:
• Contact with the saw blade in the exposed sawing
area.
• Reaching into the running saw blade (cutting injury).
• Kick-back of workpieces and workpiece parts.
• Saw blade breakage.
• Ejection of faulty carbide parts of the saw blade.
• Hearing damage when the necessary hearing protec-
tion is not used.
• Harmful emissions of wood dusts during use in en-
closed areas.
Explanation of the signal words in the operating
manual
DANGER
WARNING
CAUTION
ATTENTION
www.scheppach.com
Signal word to indicate an
imminently hazardous situation
which, if not avoided, will result in
death or serious injury.
Signal word to indicate a
potentially hazardous situation
which, if not avoided, could result
in death or serious injury.
Signal word to indicate a
potentially hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Signal word to indicate a
potentially hazardous situation
which, if not avoided, could result
in product or property damage.
