3.4.3 Switch Settings

Switch 1: This switch allows a sinking or sourcing PLC to be connected (output
current). For further information see section 3.4.1.
Switch 2 : This switch allows the 'Enter' key to be locked to avoid accidental or
unauthorized access to the Programmation and Test menus.
The Switch 2 when set in the unlocked position allows the parameter
values to be changed (K-Factor, relays, current, ...) and when in the
locked position access to the programmation and test menus is
restricted.

3.4.4 Connection of the Pulse Output

The pulse output can be easily connected to a PLC or counter independently of the power-
supply or version.

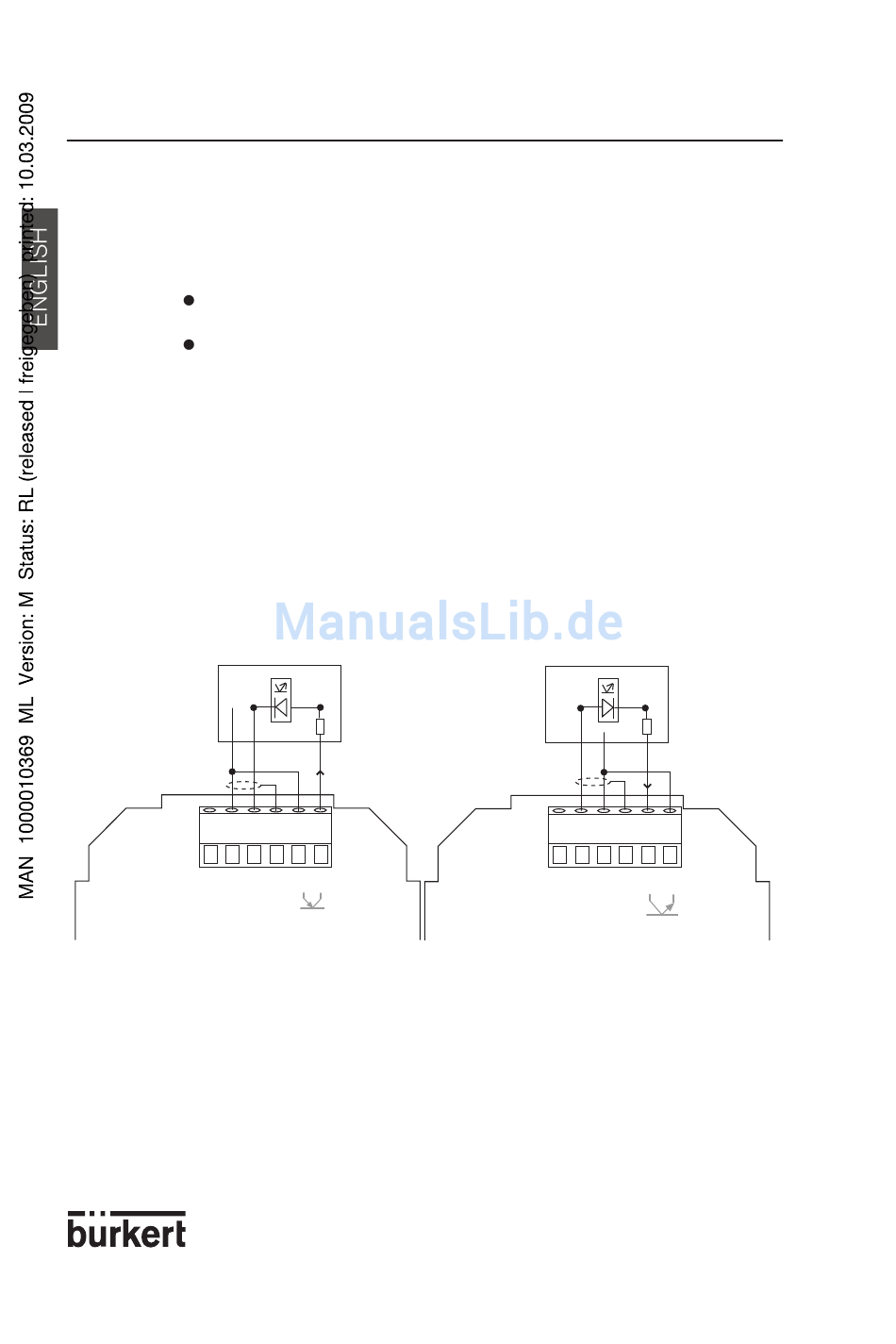

3.4.4.1 Connection of a PLC
V+
1 2 3 4 5 6
4...20 V+ V- PE Pls+Pls-
8045
Fig. 3.6 PLC with common „minus"
(„PNP")
INSTALLATION
INPUT
0V
I
14
V+
1 2 3 4 5 6
4...20 V+ V- PE Pls+Pls-
8045
Fig. 3.7 PLC with common „plus"
(„NPN")
INPUT
0V
I
