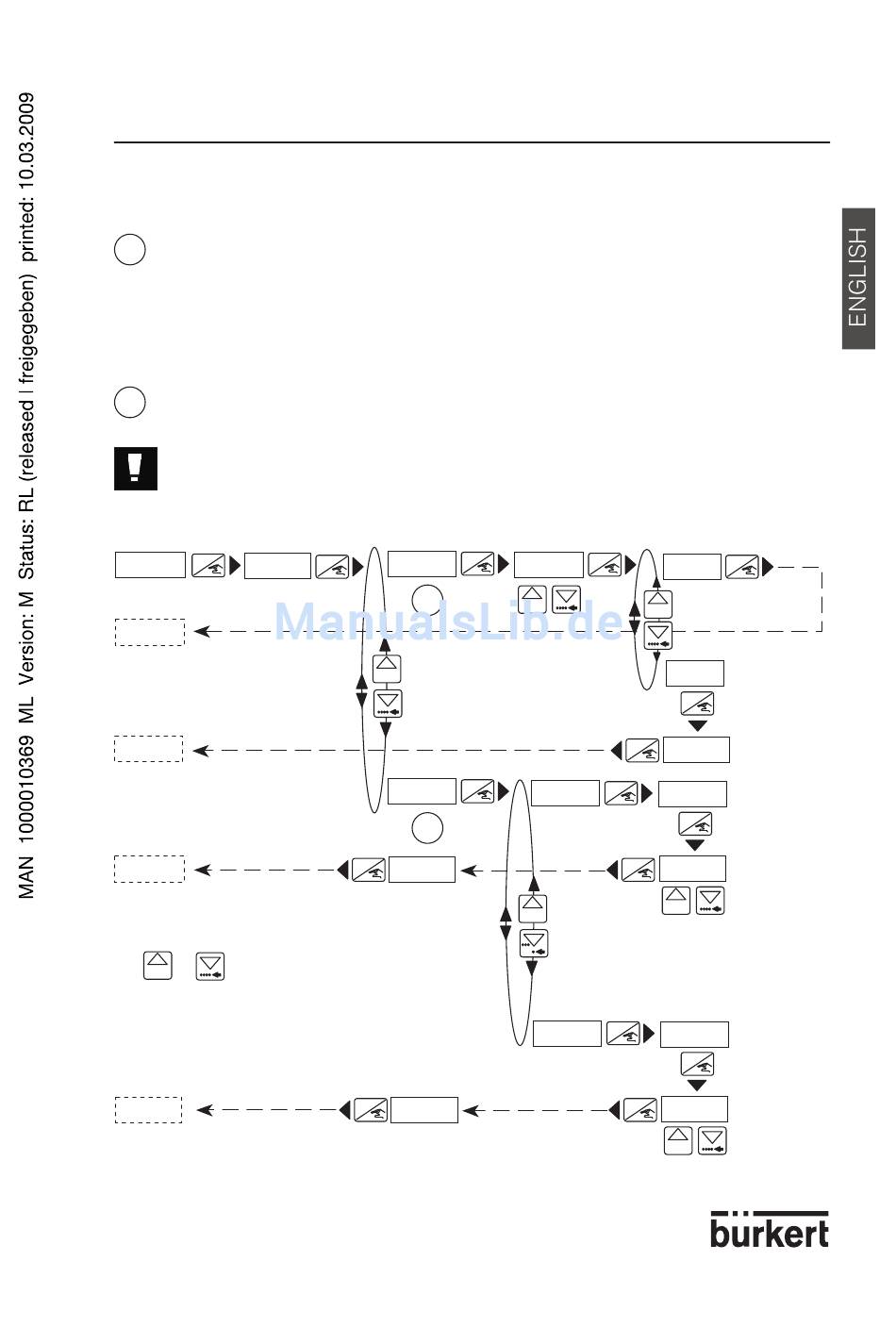

4.4.3 K-Factor
The menu makes it possible to determine the K factor of the process:
either by entering the value of the K factor of the fitting (depending on the pipe diame-
A
ter and material, see instruction manual of the fitting S020): the transmitter then calcu-
lates the K factor for the process using the fitting K factor, the cell constant Fs and the
temperature coefficient Kw. Fs and Kw are set ex works and can be read and modified
within the TEST menu.
or by using the "TEACH-IN" procedure. It consists either of a volume measurement or
B
a comparison measurement with another flow meter.
The value of the K factor taken into account for the process is the last
determined K factor, whatever the method used.
K FACTOR
K= 001.00
ENTER
Current process
K factor
CURRENT
CURRENT
CURRENT
*
+
0....9
Press simultaneously the
keys to shift the decimal
point.
CURRENT
8045
CALIBRATION
K-FITING
ENTER
ENTER
A
Enter the K Factor
of the fitting
(max. 1999,99).
0....9
TEACH Y
ENTER
B
K= 001.68
ENTER
Display of the
calculated K factor
K= 001.68
ENTER
Display of the calculated K factor
23
VALID N
K1= 001.00
ENTER
*
0....9
0....9
VALID Y
ENTER K= 001.69
VOLUME FILL END
ENTER
Start of
measurement
0100.0 L
ENTER
End of
measurement
0....9
0....9
Enter the measured volume.
Same unit as for flow (section
4.4.2)
Start of
measurement
MEASURE
FLOW
ENTER
10.10 L/S
ENTER
0....9
ENTER
The process K factor
is not recalculated.
ENTER
ENTER
50 s.
measurement
ENTER
Enter the
measured flow
