ON/OFF FLOW CONTROL

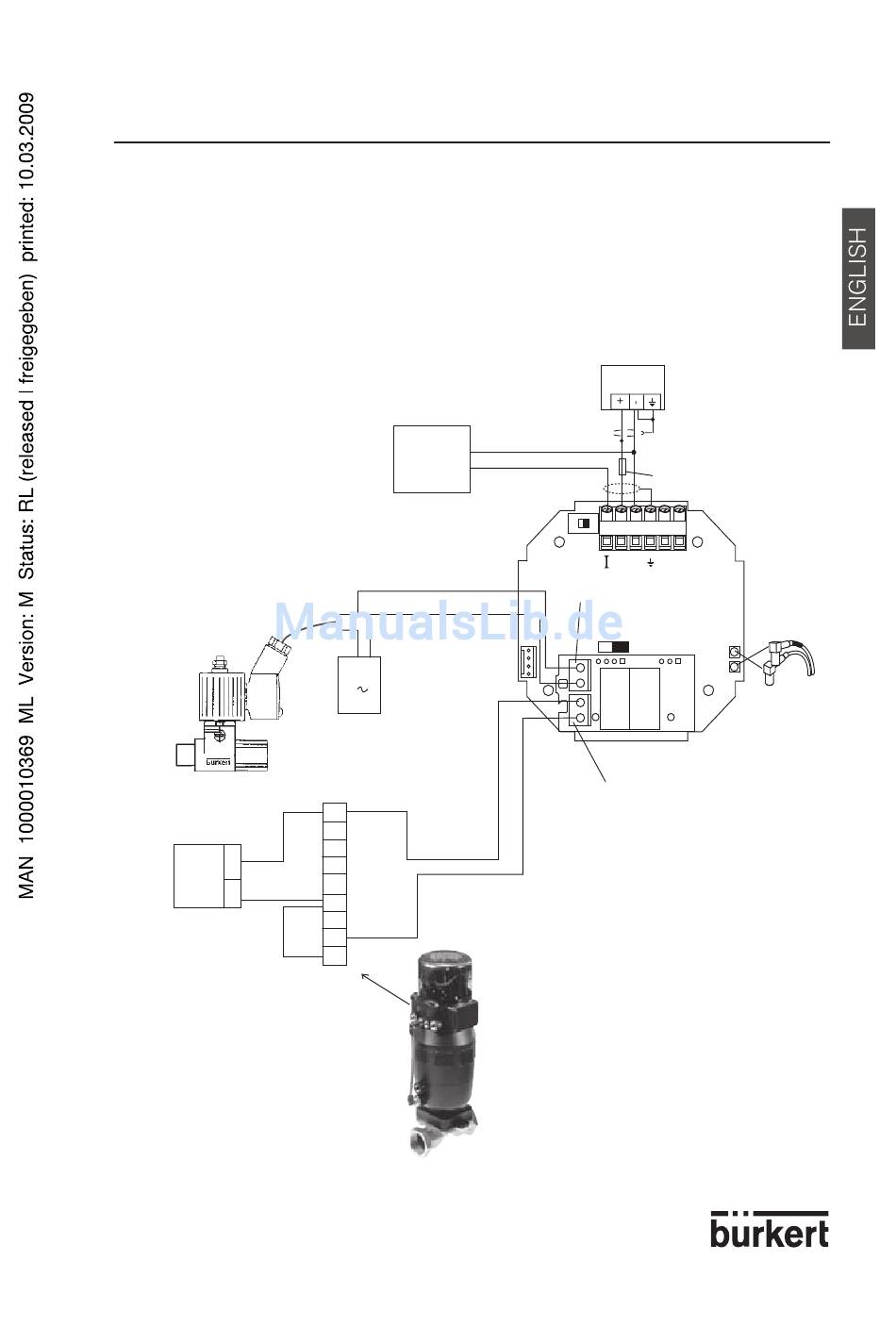

Connection between the 8045 flow transmitter18-36 VDC and the 8631 TopControl moun-
ted on a diaphragm valve 2031 and a pilot valve 6012.
(*) If direct earthing is impossible, connect a
100 nF / 50 V-condensator between
the negative terminal and the earth.
Pilot valve
+
24 V=
-
8045
INSTALLATION
PLC
V=
V
9
8
7
6
5
4
3
2
1
TopControl On/Off
17
24 V=
(*)
300 mA
4-20 mA
1 2 3 4 5
+ -
P+
REL 1
REL2
6
P-
