Replacing the sensor:
a) Version with a PVDF sensor:
-
open the housing cover.
-

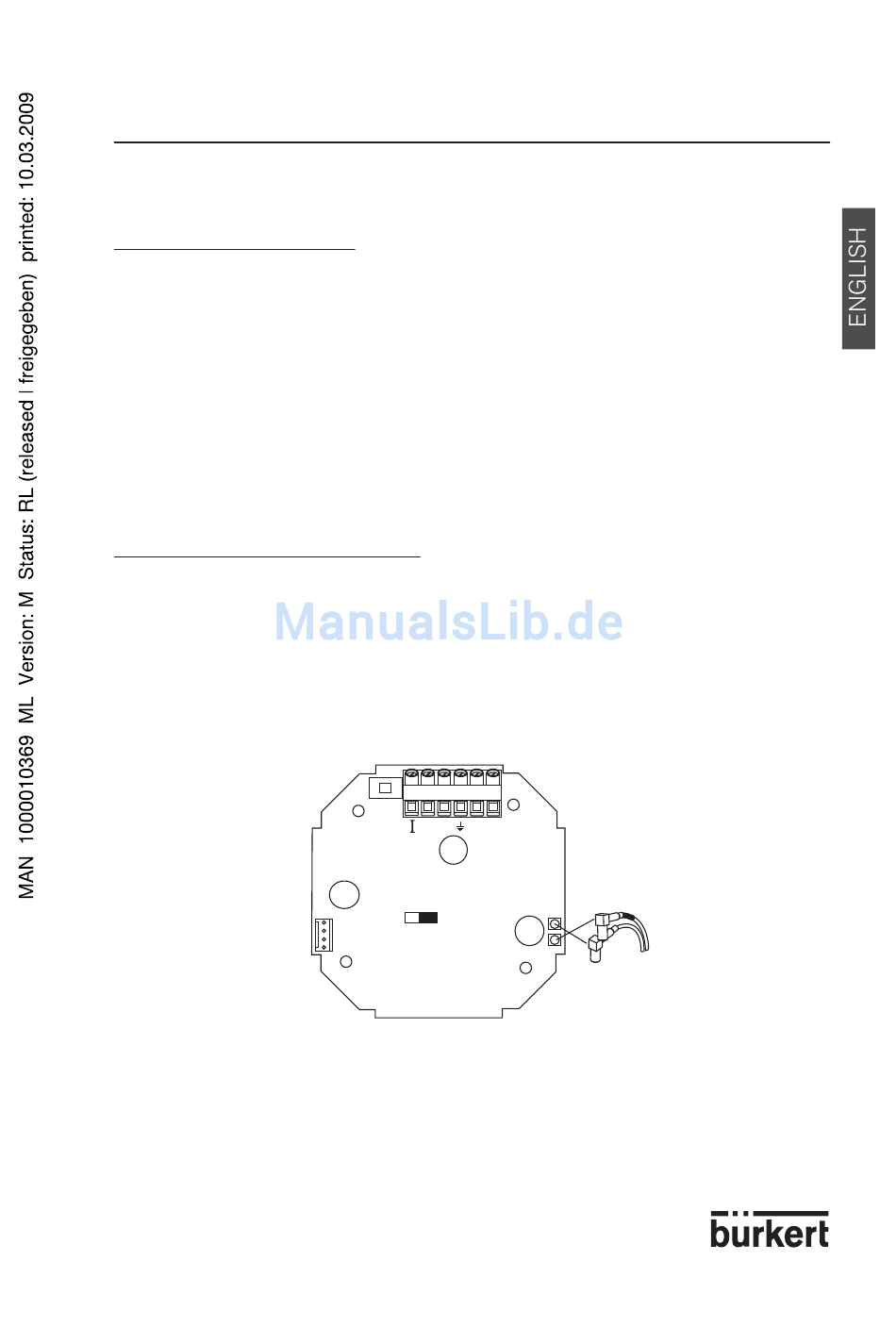

disconnect the cables from connectors 1 and 2 of the electronic board (see figure
below).
-
replace the sensor.
-
connect the shielding of the power supply cable to terminal N°4 of terminal strip 3 (see
figure below).
-
connect the flat cable to connector 1.
-
connect the coax cables to connectors 2 by respecting the connecting order.
-
replace all the seals.
-
orient the lug properly (see 3.1.1).
-
fasten the sensor fastening screw.
b) Version with a stainless steel sensor:
-
open the housing cover.
-
disconnect all the cables from connectors 1, 2 and 3 of the electronic board (see figure
below) then pass the cables through the cable glands.
-
replace the set stainless steel sensor-housing.
-
pass the cables through the cable glands.
-
wire the device as described in § 3.4.
8045
ANNEX
1
2
3
4
5
6
+
-
P+
P-
3
1
43
2
