3.4.3 Switch Settings
Switch1:
This switch allows a sinking or sourcing PLC to be connected (output
current). For further information see section 3.4.1.
Switch2 :
This switch allows the 'Enter' key to be locked to avoid accidental
or unauthorized access to the Programmation and Test menus.
The Switch2 when set in the unlocked position allows the
parameter values to be changed (K-Factor, relays, current, ...)
and when in the locked position access to the programmation and
test menus is restricted.
3.4.4
Connection of the Pulse Output
The pulse output can be easily connected to a PLC or counter independently of the power
supply or version.
3.4.4.1
Connection of a PLC

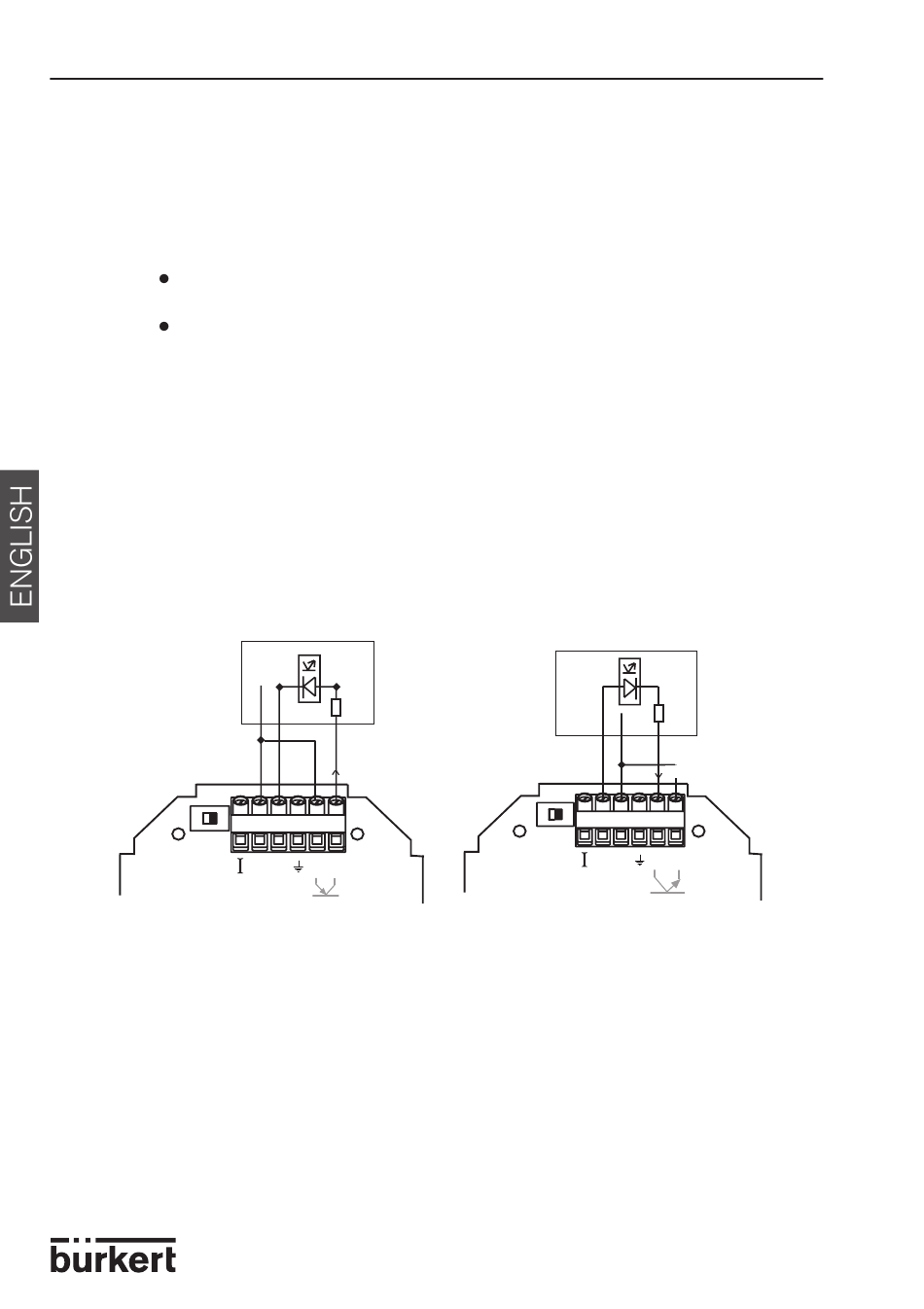

Fig. 3.6 PLC with common -
INSTALLATION
V+
0V
INPUT
Current
1
2
3
4
5
6
+
-
P+
P-
V+
1
2
+
Fig. 3.7 PLC with common +
14
0V
INPUT
Current
3
4
5
6
-
P+
P-
