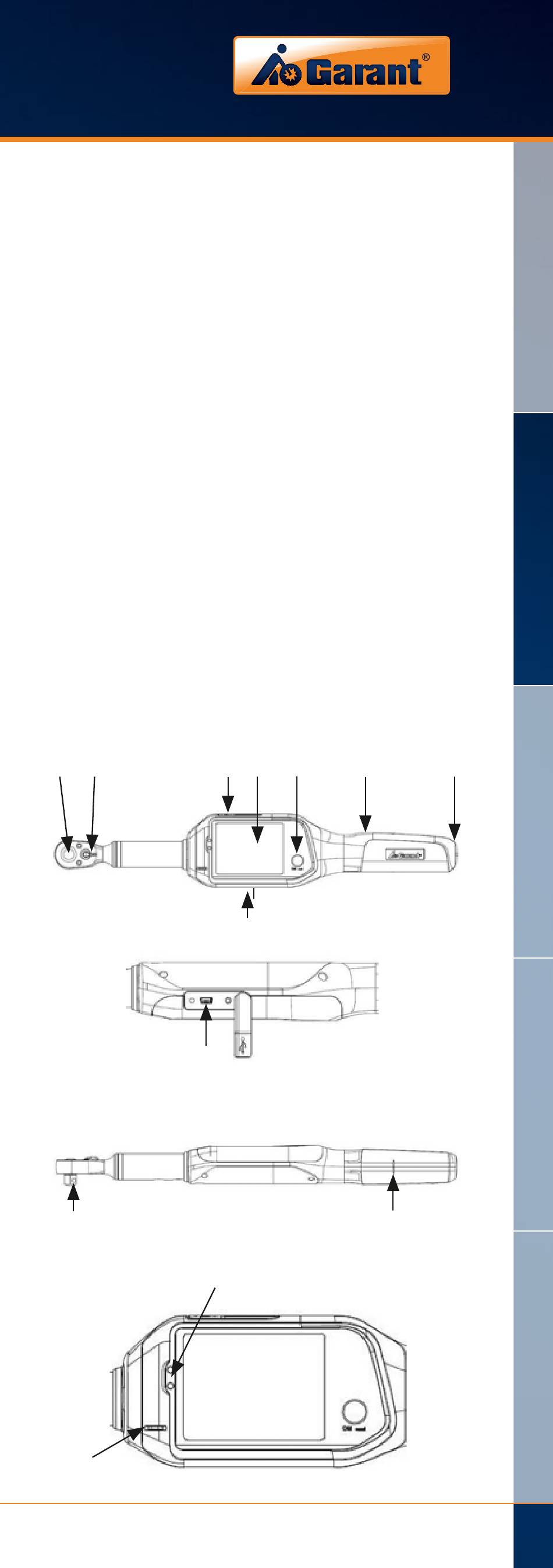

NAMES AND FUNCTIONS OF PARTS

01. Ratchet head with quick-
release button
02. Direction lever
03. Color TFT display
04. Handle
05. Power on/Reset button
06. Battery cap
07. Ratchet drive
08. Calibration point
09. Battery charging LED
10. Buzzer
11. Mini-USB port
11 a 65 5550_100 – _340 N·m
11 b 65 5550_12 – _50 N·m
