The sensing range is adjusted by pressing the teach-in button (approx. 1-3 sec.).
Depending on the requirements, the potentiometer can be used for fine-tuning (without
pressing the teach-in button).
Clockwise rotation: Sensing range increased.
Counterclockwise rotation: Sensing range reduced.
The sensing range can also be adjusted using just the potentiometer.
1
1...3 sec.
2
3

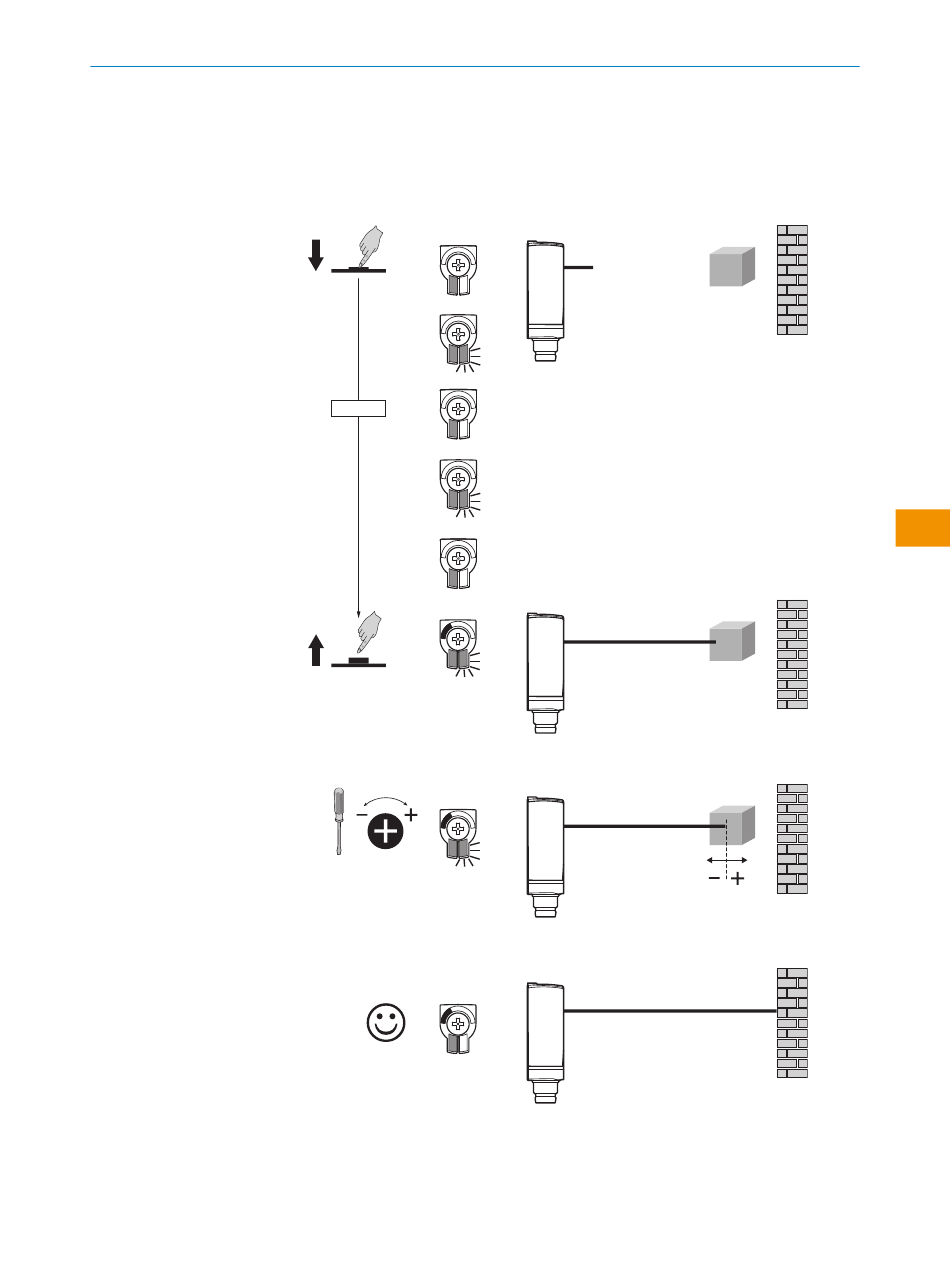

Figure 8: WTB4F, adjustment of the sensing range using a teach-turn adjustment
WTB4F-xxxxxxA0
Sensor with preset sensing range.
