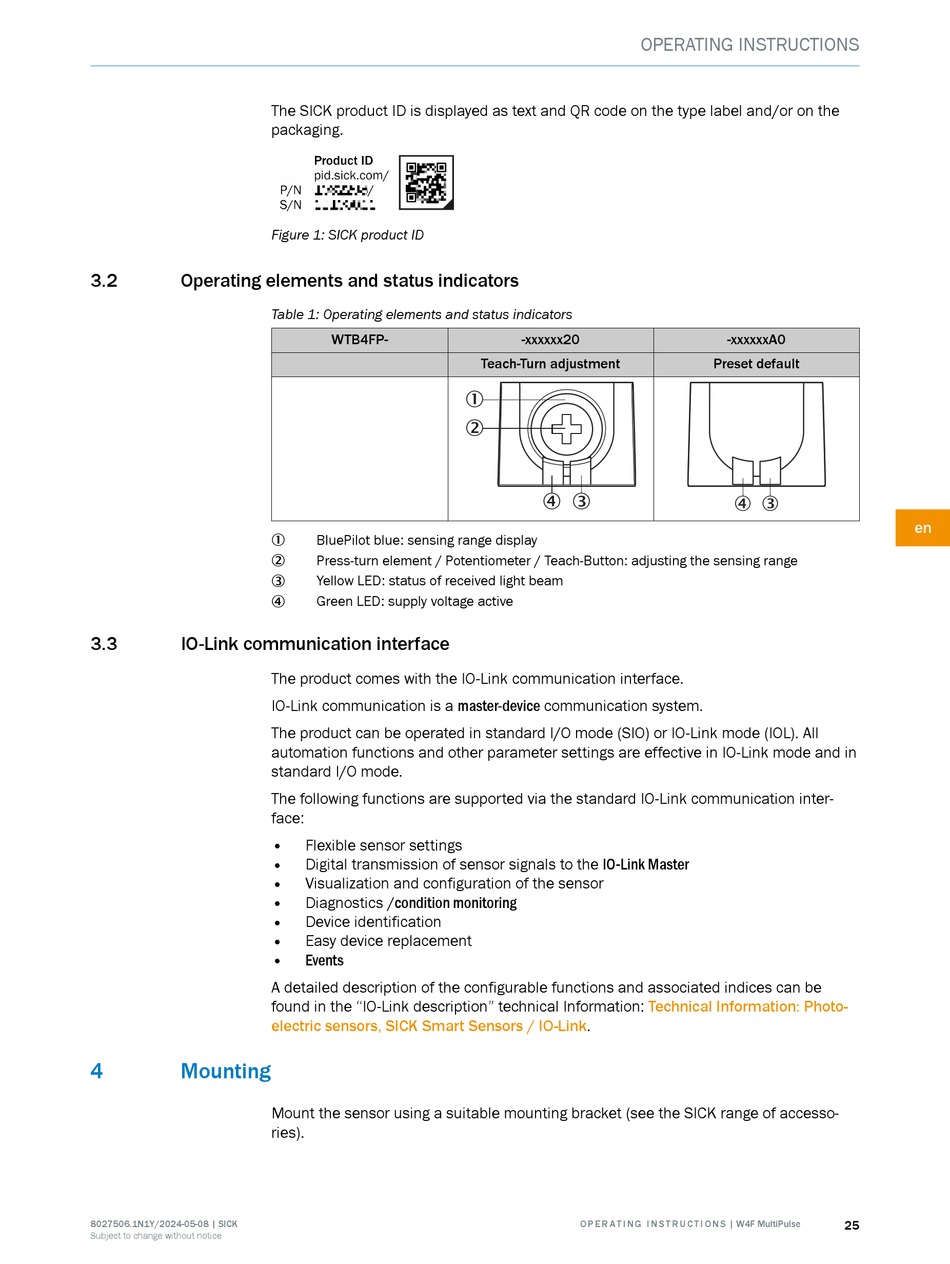

SICK W4F MultiPulse Betriebsanleitung Seite 25

3.2 Operating elements and status indicators
3.3 IO-Link communication interface
4 Mounting
8027506.1N1Y/2024-05-08 | SICK
Subject to change without notice
The SICK product ID is displayed as text and QR code on the type label and/or on the
packaging.
Figure 1: SICK product ID
Table 1: Operating elements and status indicators
WTB4FP-
BluePilot blue: sensing range display
1
Press-turn element / Potentiometer / Teach-Button: adjusting the sensing range
2
Yellow LED: status of received light beam
3
Green LED: supply voltage active
4
The product comes with the IO-Link communication interface.
IO-Link communication is a master-device communication system.
The product can be operated in standard I/O mode (SIO) or IO-Link mode (IOL). All
automation functions and other parameter settings are effective in IO-Link mode and in
standard I/O mode.
The following functions are supported via the standard IO-Link communication inter‐
face:
•
Flexible sensor settings
• Digital transmission of sensor signals to the IO-Link Master
• Visualization and configuration of the sensor
• Diagnostics /condition monitoring
• Device identification
• Easy device replacement
•
Events
A detailed description of the configurable functions and associated indices can be
found in the "IO-Link description" technical Information:
electric sensors, SICK Smart Sensors /
Mount the sensor using a suitable mounting bracket (see the SICK range of accesso‐
ries).
OPERATING INSTRUCTIONS
-xxxxxx20
Teach-Turn adjustment
1
2
4 3
IO-Link.
O P E R A T I N G I N S T R U C T I O N S | W4F MultiPulse
-xxxxxxA0
Preset default
4 3
Technical Information: Photo‐
