26 O P E R A T I N G I N S T R U C T I O N S | W4F MultiPulse

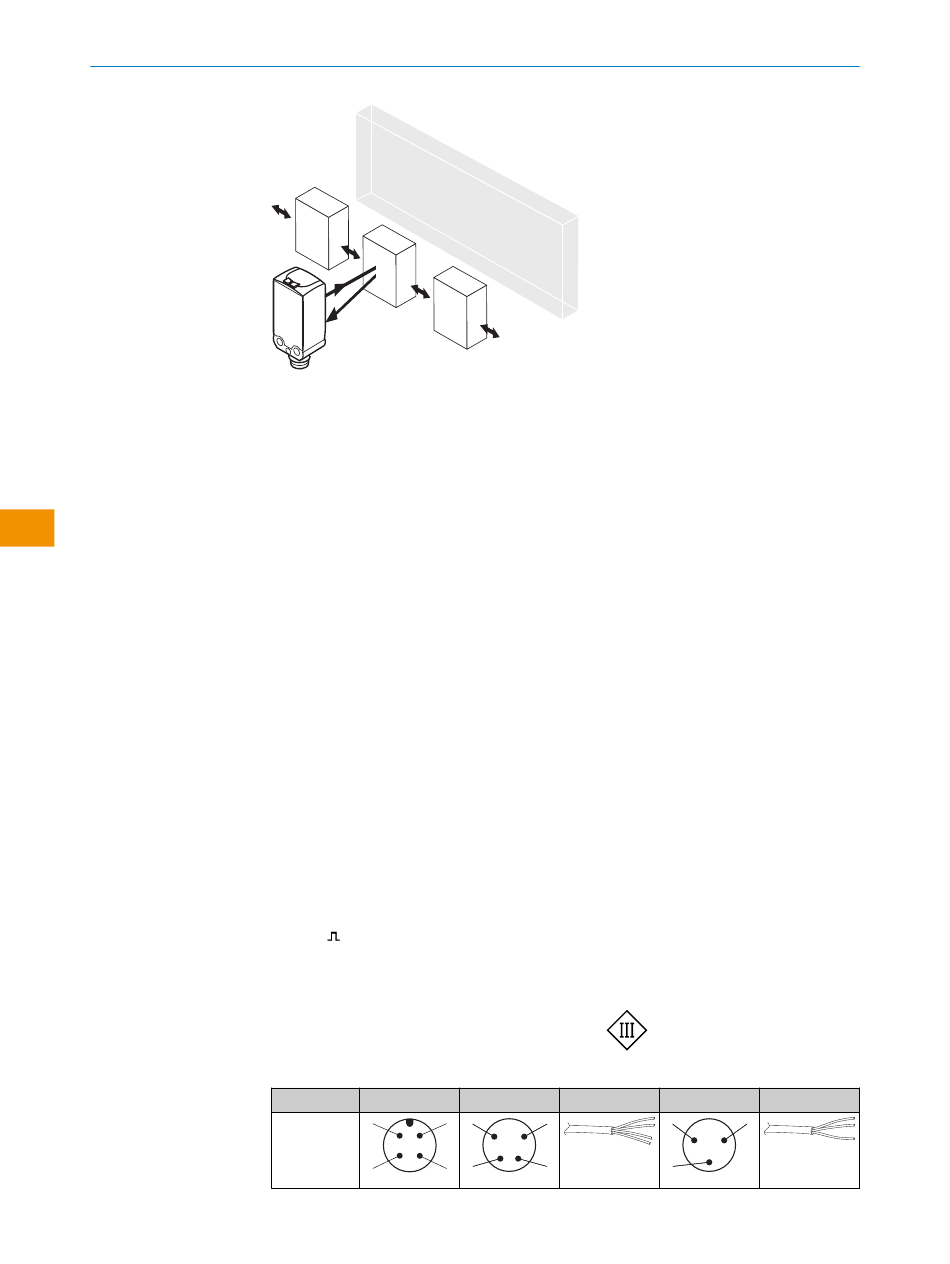

Figure 2: Alignment of the sensor relative to the object direction
Note the sensor's maximum permissible tightening torque of 0.4 Nm.
Note the preferred direction of the object relative to the sensor, cf.
page 26.
Operation in standard I/O mode:
The sensors must be connected in a voltage-free state. The following information must
be observed, depending on the connection type:
– Male connector connection: Pin assignment
– Cable: Wire color
Only apply voltage and switch on the voltage supply once all electrical connections have
been established.
Operation in IO-Link mode: Connect the device to a suitable IO-Link master. Integrate
into the master or into the controller using IODD/function block. The green LED flashes
on the sensor. IODD and function block are available to download from
under the part number.
Explanation of the connection terminology used in the following tables:
BN = brown
WH = white
BU = blue
BK = black
MF (pin 2 configuration) = external input, teach-in
Q /C: P
L1
L+ = supply voltage (U )
V
M = ground
DC: 10 ... 30 V DC, see "Technical data", page 34
Table 2: Electrical connection
WTB4Fx- x4
1 = BN
2 1
2 = WH
3 = BU
3 4
4 = BK
x2 xH
3 1
0.14 mm
2
4 2
AWG26
see figure 2,
www.sick.com
x1 -xG
3 1
0.14 mm 2
AWG26
4
