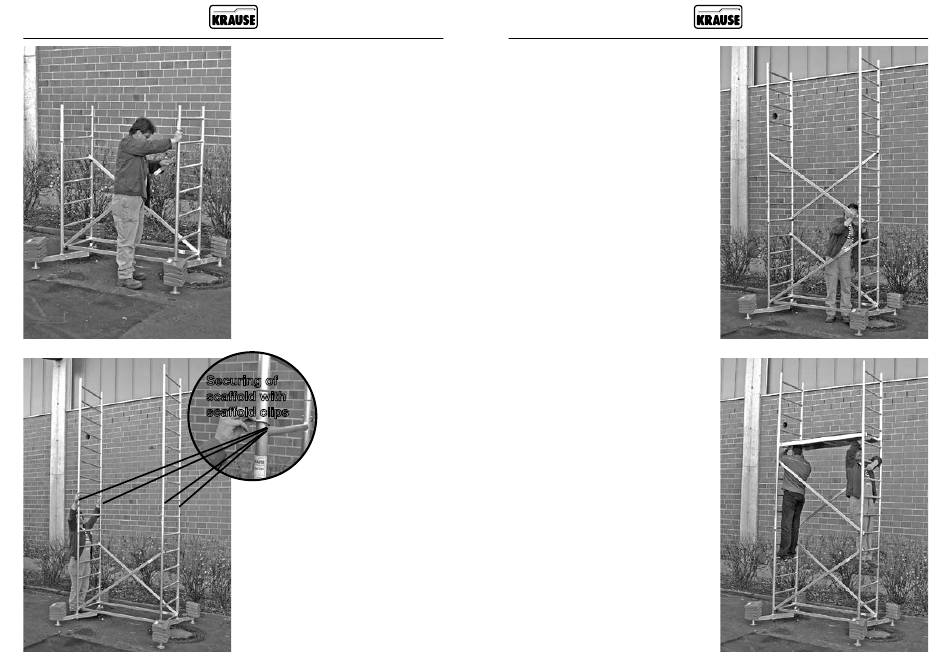

Base frame with first and second frame element
Step 3
Connect the two base frames with
two diagonal braces mounted
crosswise, attaching them to the
lowest rung on one side and to the
5th rung on the other side.
Securing of
scaffold with
scaffold clips
Step 4
Insert the two vertical frames
(2.0 x 0.65 m) into the base frame.
Secure them with safety sets.
Step 5
Connect the two vertical frames
with two diagonal braces mounted
crosswise, attaching them to the
6th rung on one side and to the
10th rung on the other side.
Secure all braces with safety sets.
Step 6
Attach the board at the 5th rung
from the top. Secure the board with
safety sets.
Base frame with first and second frame element
