3.3.2.2

Requirements on the levelness of the floor

The foundation at the installation location of the SINAMICS DCM Cabinets must be level to
ensure proper functioning of the cabinets.
● Care must be taken to ensure that the doors can be opened and closed and that the
locking systems work properly.
● Flat sections (such as doors, side panels and hoods) must be sealed correctly to ensure
compliance with the specified degree of protection.
● When cabinets are connected (e.g., transport units), air inlets caused by gaps must be
prevented.
● Gaps where air can enter caused by leveling measures (e.g.:
sealed.

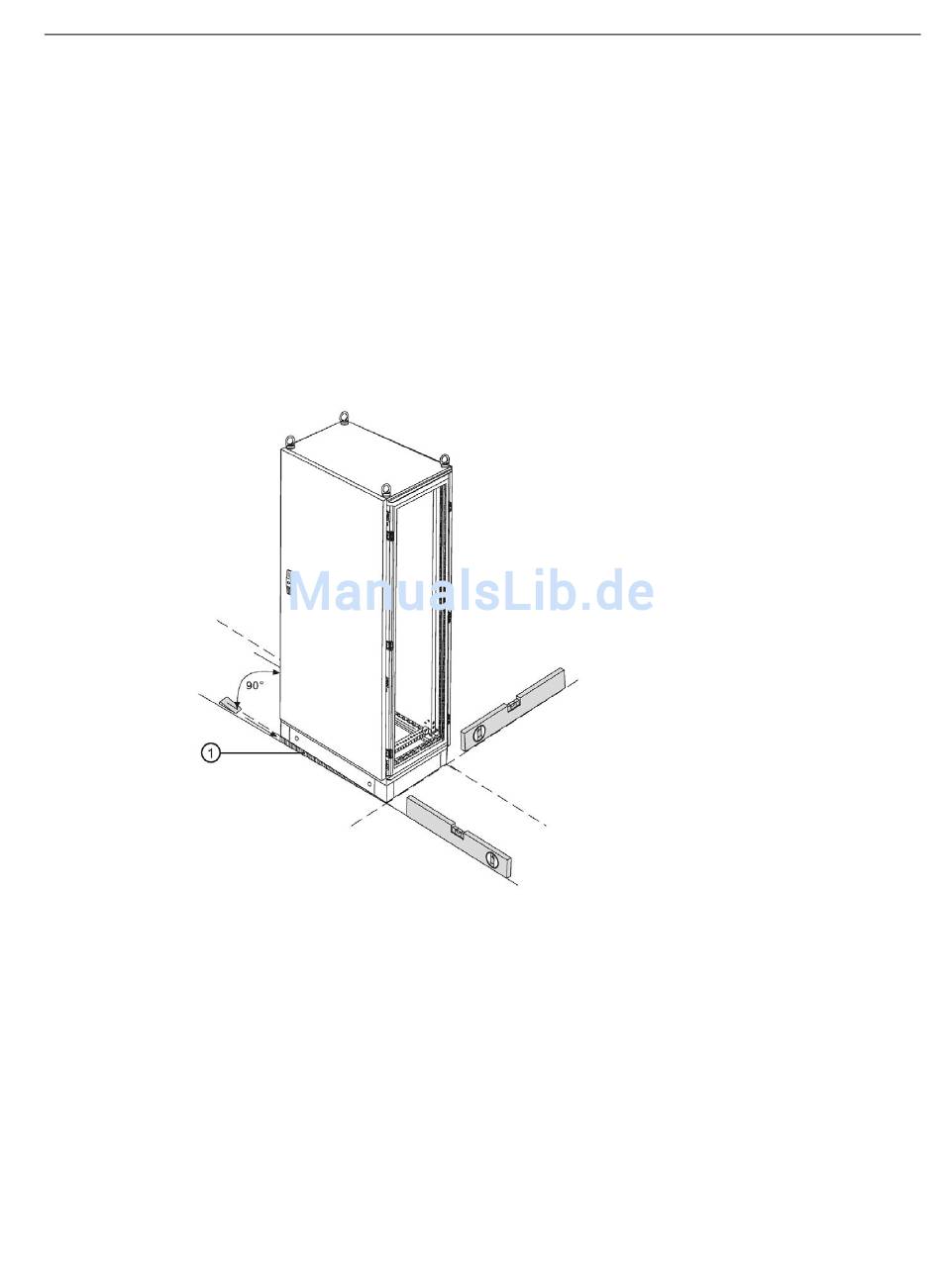

Figure 3-2
SINAMICS DCM Cabinet
Operating Instructions, 04/2015, A5E36161239/RS-AA/001
Requirements on the levelness of the floor
Mechanical installation
3.3 Mounting
①
in the diagram) must be
41
