Operation of WPD Series
6 – 2 – 6 Primado Wire Pin Driver Attachment (PD-SA-R)
_ Mounting

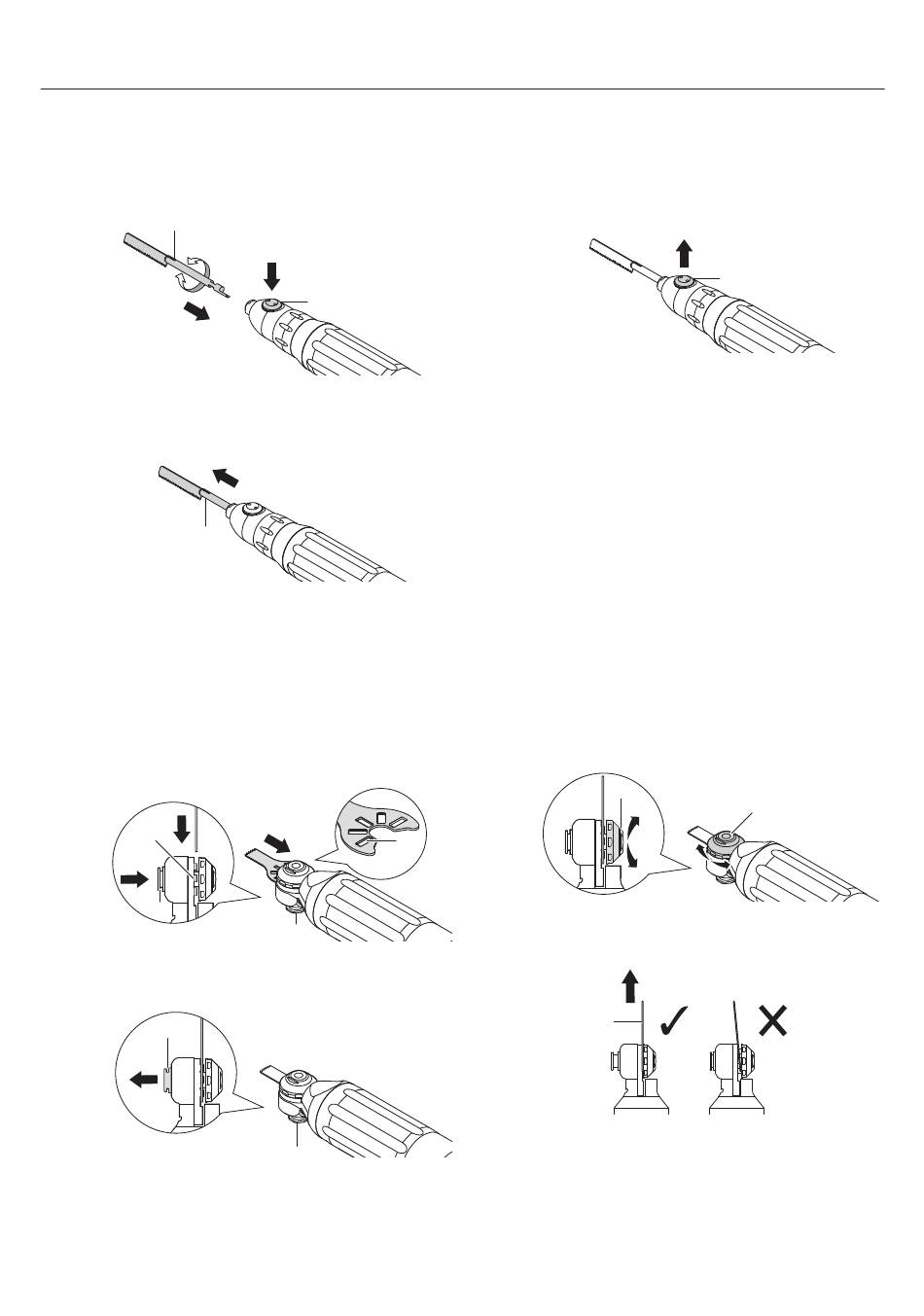

1 Twist the shank of the Cutting Accessory Ⓑ lightly with your
fingers to insert it all the way while depressing the Mounting/
Removal Button Ⓐ.
Ⓑ
3 After mounting the Cutting Accessory Ⓒ, pull it lightly to confirm that it is securely connected to the Attachment.
Ⓒ
* If the Cutting Accessory is not set in place properly, repeat the procedure from 1 - 3 to set it in place properly.
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
6 – 2 – 7 Primado Wire Pin Driver Attachment (PD-SA-S)
_ Mounting
1 While depressing the Mounting/Removal Button Ⓐ, fit the
Alignment Holes of a Cutting Accessory Ⓑ into the convex part
of the Attachment Ⓒ.
Ⓒ
Ⓐ
2 Release the Mounting/Removal Button Ⓐ to set the Cutting
Accessory in place.
Ⓐ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Ⓐ
Ⓑ
Ⓐ
Ⓐ
48
2 Release the Mounting/Removal Button Ⓐ to set the Cutting
Accessory in place.
3 By twisting the Adjusting Nut Ⓓ clockwise and
counterclockwise, set the Cutting Accessory in place properly.
Ⓓ
4 After mounting the Cutting Accessory, pull it lightly to confirm
that it is securely connected to the Attachment.
Ⓔ
* If the Cutting Accessory is not set in place properly, repeat the
procedure from 1 - 3 to set it in place properly.
Ⓐ
Ⓓ
