Operation of BMH Series
5 – 2 – 1 Bone Saw Attachment 200 (P200-REC)

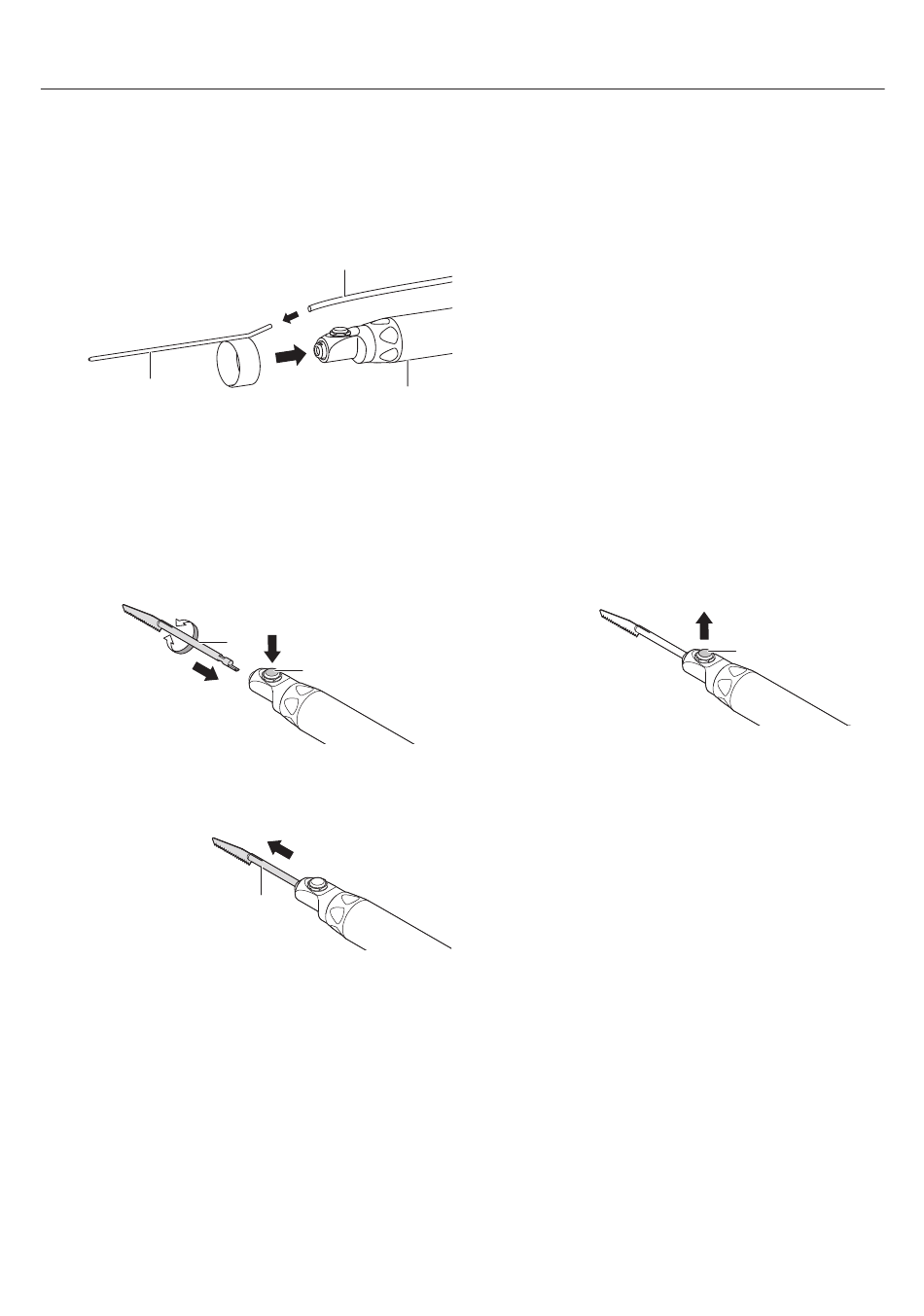

Mounting the Irrigation Nozzle (Optional)
_ Mounting
1 Insert the Irrigation Nozzle Ⓐ onto the Bur Guard Ⓑ of the
Attachment, making sure that the correct end of the Irrigation
Nozzle goes in.
2 Insert the Irrigation Tube Ⓒ into the Irrigation Nozzle Ⓐ.
Ⓐ
* For the related connection and the setting on the Control Unit, refer to OM-SE0021E Primado2 OPERATION MANUAL Control Unit and Foot
Controls.
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1 Twist the shank of the Cutting Accessory Ⓑ lightly with your
fingers to insert it all the way while depressing the Fitting/
Removal Button Ⓐ.
3 After mounting the Cutting Accessory Ⓒ, pull it lightly to confirm that it is securely connected to the Attachment.
* If the Cutting Accessory is not set in place properly, repeat the procedure from 1 - 3 to set it in place properly.
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Ⓒ
Ⓑ
Ⓑ
Ⓐ
Ⓒ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse
order.
2 Release the Fitting/Removal Button Ⓐ to set the Cutting
Accessory in place.
