Operation of SMH/HMH Series
4 – 2 – 6 Perforator Handpiece 200, Perforator Handpiece

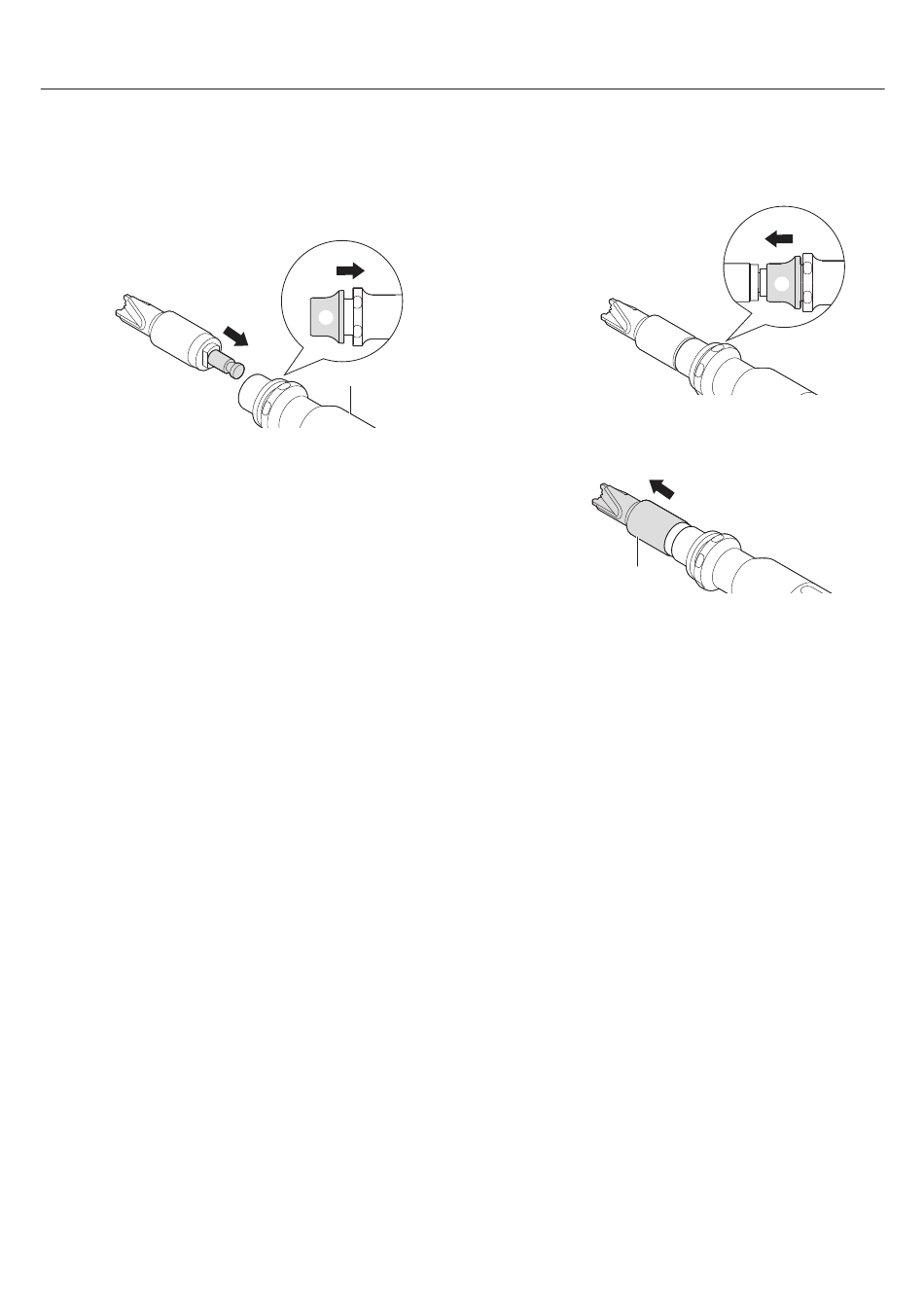

Mounting and Removing the Perforator (Commercially Available)
_ Mounting
1 Align the shank of the perforator with Hudson type chuck Ⓑ
with the groove of the Attachment Ⓒ while pulling the Removal
Lever Ⓐ, and push it all the way.
Ⓑ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
2
Ⓐ
Ⓒ
3
38
Release the Removal Lever Ⓐ to set the perforator in place.
After mounting the perforator Ⓓ, pull it lightly to confirm that it
is securely connected to the Attachment.
Ⓓ
Ⓐ
