Operation of SMH/HMH Series
4 – 2 – 3 Slim Handpiece 200 / Super Slim Handpiece 200 /
Standard Handpiece 200 / Drill Handpiece 200 /
Metal Cutting Handpiece 200 / High Speed Attachment 200 /
Primado Slim Attachment / Primado Super Slim Attachment /
Primado Standard Attachment / Primado Drill Attachment

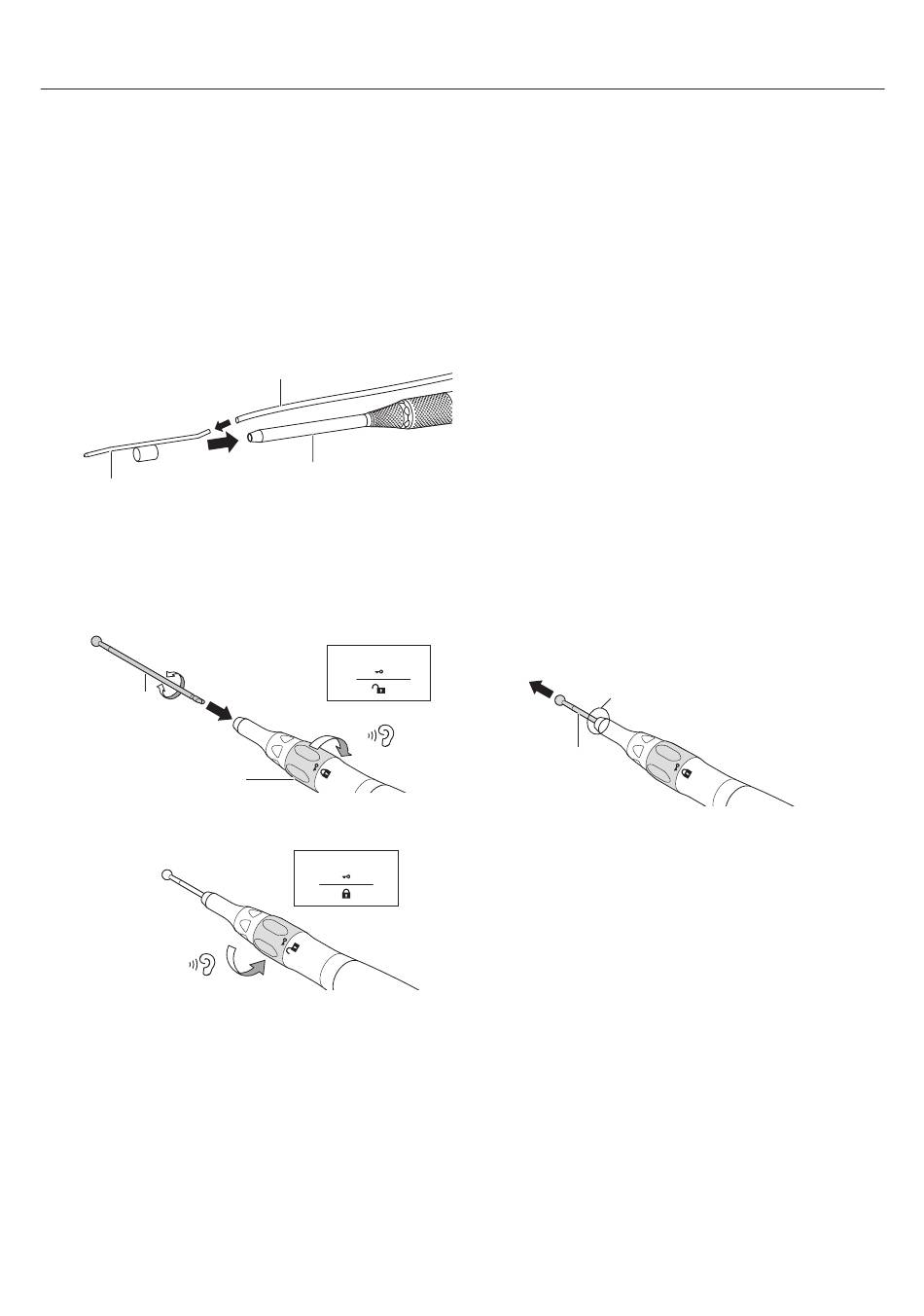

Mounting the Irrigation Nozzle (Optional)
_ Mounting
1 Insert the Irrigation Nozzle Ⓐ onto the Bur Guard Ⓑ of the
Attachment, making sure that the correct end of the Irrigation
Nozzle goes in.
2 Insert the Irrigation Tube Ⓒ into the Irrigation Nozzle Ⓐ.
Ⓐ
* For the related connection and the setting on the Control Unit, refer to OM-SE0021E Primado2 OPERATION MANUAL Control Unit and Foot
Controls.
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1 Rotate the Twist Collet Ⓐ in the direction of Ⓑ until it clicks.
Insert the Cutting Accessory Ⓒ all the way while twisting it.
Ⓒ Ⓒ
2 Rotate the Twist Collet Ⓐ in the direction of Ⓓ until it clicks.
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Ⓒ
Ⓑ
Chuck Open
Ⓑ
Ⓐ
Chuck Close
Ⓓ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse
order.
3 Pull the Cutting Accessory Ⓒ lightly to confirm that it is
securely connected to the Attachment.
Securely
Ⓒ
