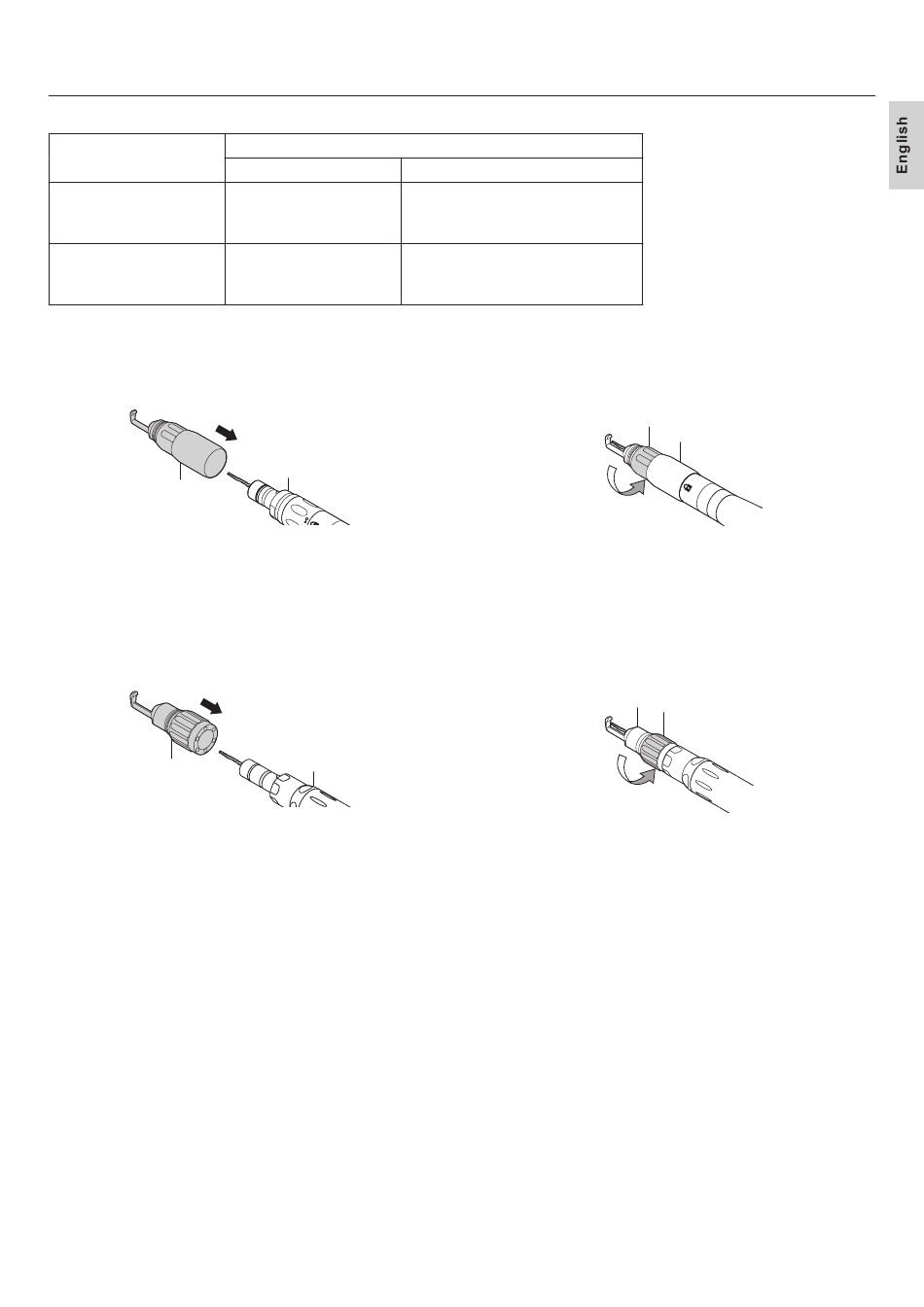

Mounting and Removing the Duraguard
Applicable Attachment
P200-CRA
PD-CRA
Craniotome Handpiece 200
_ Mounting
1 Insert the Duraguard Ⓐ while twisting it through the tip of the
Attachment Ⓑ.
Ⓐ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Craniotome Handpiece
_ Mounting
1 Insert the Duraguard Ⓐ while twisting it through the tip of the
Attachment Ⓑ.
Ⓐ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Applicable Duraguard
Duraguard
P200-CRD-P
P200-CRD-M
P200-CRD-L
PD-CRD-P
PD-CRD-M
PD-CRD-L
Ⓑ
Ⓑ
Rotatable Duraguard
P200-RCRD-P
P200-RCRD-M
P200-RCRD-L
-
2 Rotate the Removal Ring Ⓒ in the direction of Ⓓ to set the
Duraguard Ⓐ in place.
2 Rotate the Removal Ring Ⓒ in the direction of Ⓓ to set the
Duraguard Ⓐ in place.
37
Operation of SMH/HMH Series
Ⓒ
Ⓐ
Ⓓ
Ⓐ
Ⓒ
Ⓓ
