NSK Primado2 Bedienungsanleitung Seite 42

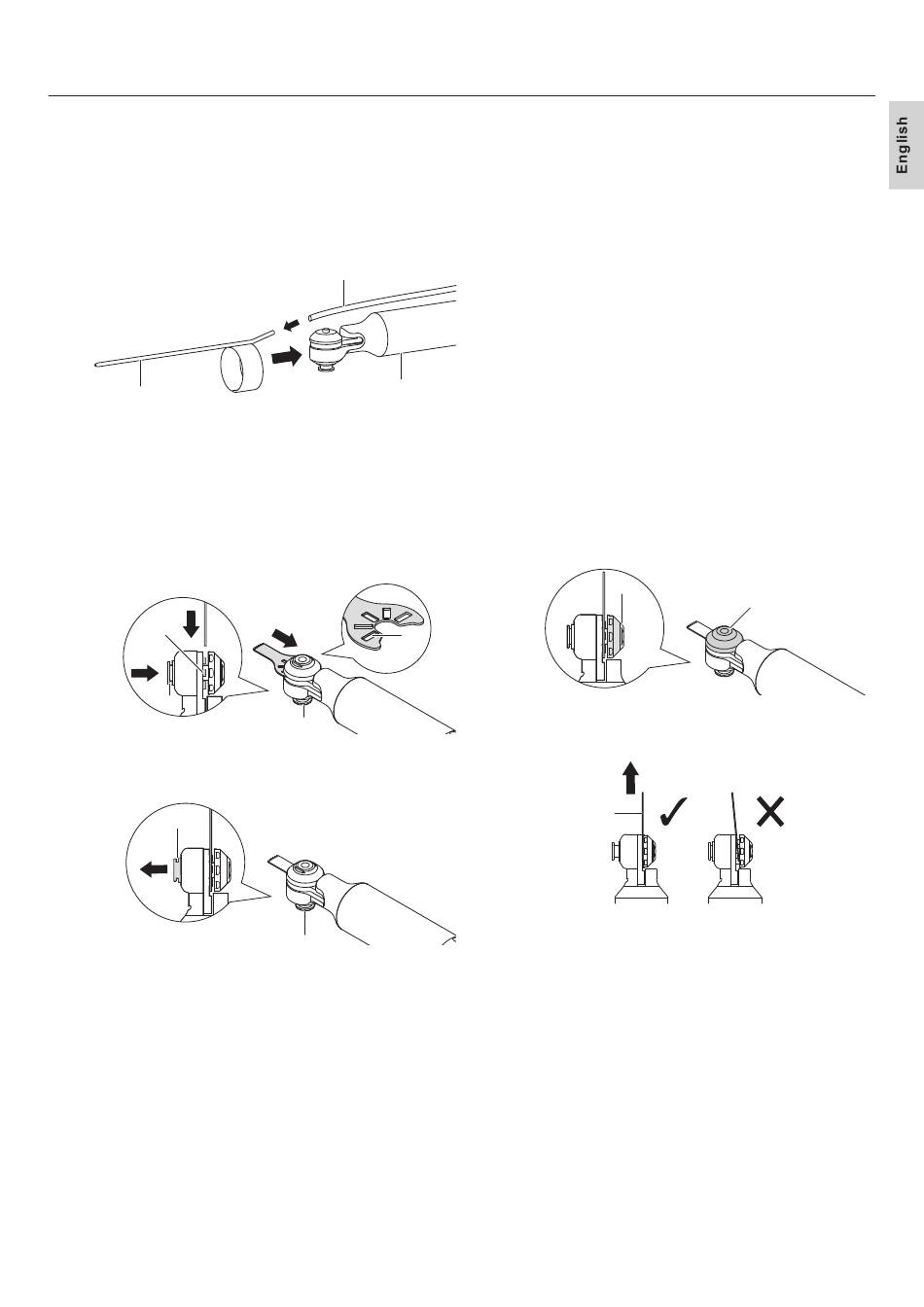

5 – 2 – 2 Bone Saw Attachment 200 (P200-SAG)
Mounting the Irrigation Nozzle (Optional)
_ Mounting
1 Insert the Irrigation Nozzle Ⓐ onto the Bur Guard Ⓑ of the
Attachment, making sure that the correct end of the Irrigation
Nozzle goes in.
2 Insert the Irrigation Tube Ⓒ into the Irrigation Nozzle Ⓐ.
Ⓐ
* For the related connection and the setting on the Control Unit, refer to OM-SE0021E Primado2 OPERATION MANUAL Control Unit and Foot
Controls.
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1 While depressing the Fitting/Removal Button Ⓐ, fit the
Alignment Holes of a Cutting Accessory Ⓑ into the convex part
of the Attachment Ⓒ.
Ⓒ
Ⓐ
2 Release the Fitting/Removal Button Ⓐ to set the Cutting
Accessory in place.
Ⓐ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Ⓒ
Ⓑ
Ⓑ
Ⓐ
Ⓐ
41
Operation of BMH Series
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse
order.
3 By twisting the Adjusting Nut Ⓓ clockwise and
counterclockwise, set the Cutting Accessory in place properly.
Ⓓ
4 After mounting the Cutting Accessory, pull it lightly to confirm
that it is securely connected to the Attachment.
Ⓔ
* If the Cutting Accessory is not set in place properly, repeat the
procedure from 1 - 3 to set it in place properly.
Ⓓ
