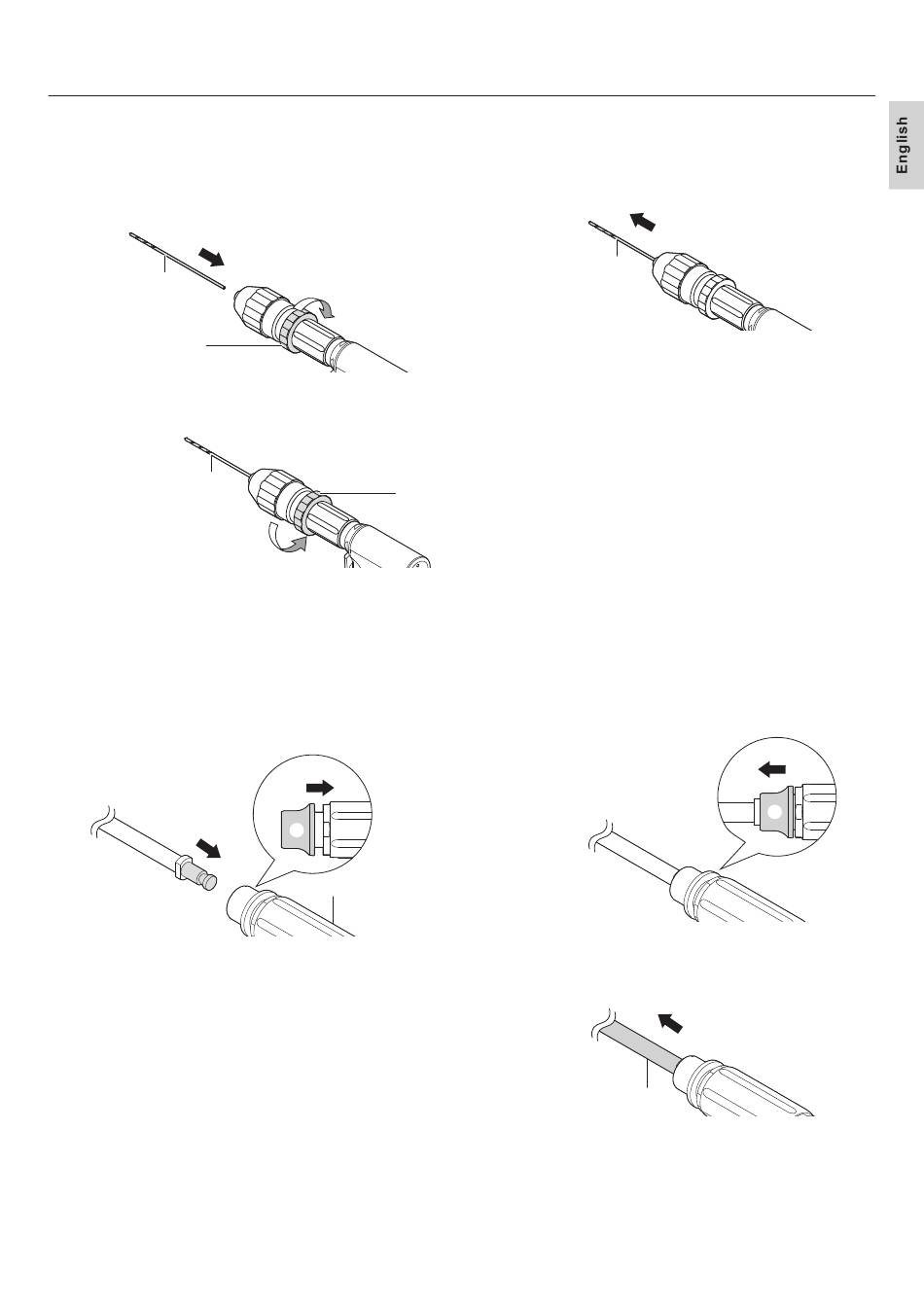

6 – 2 – 4 Primado Wire Pin Driver Attachment (PD-DA-K)
_ Mounting
1 Rotate the Twist Collet Ⓐ in the direction of Ⓑ, insert the drill
bit, etc. Ⓒ through the tip of the Attachment and adjust its
length.
Ⓒ
Ⓐ
2 Rotate the Twist Collet Ⓐ in the direction of Ⓓ to set the drill
bit, etc. Ⓒ in place.
Ⓒ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
6 – 2 – 5 Primado Wire Pin Driver Attachment (PD-RA-A/M/H/T)
_ Mounting
1 Align the shank of the reamer bit with Hudson type chuck Ⓑ
with the groove of the Attachment Ⓒ while pulling the
Mounting/Removal Cover Ⓐ, and push it all the way.
Ⓑ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Ⓑ
Ⓐ
Ⓓ
Ⓐ
Ⓒ
47
Operation of WPD Series
3 After mounting the drill bit, etc. Ⓒ, pull it lightly to confirm that
it is securely connected to the Attachment.
Ⓒ
2 Release the Mounting/Removal Cover Ⓐ to set the reamer bit
in place.
3 After mounting the reamer bit Ⓓ, pull it lightly to confirm that it
is securely connected to the Attachment.
Ⓓ
Ⓐ
