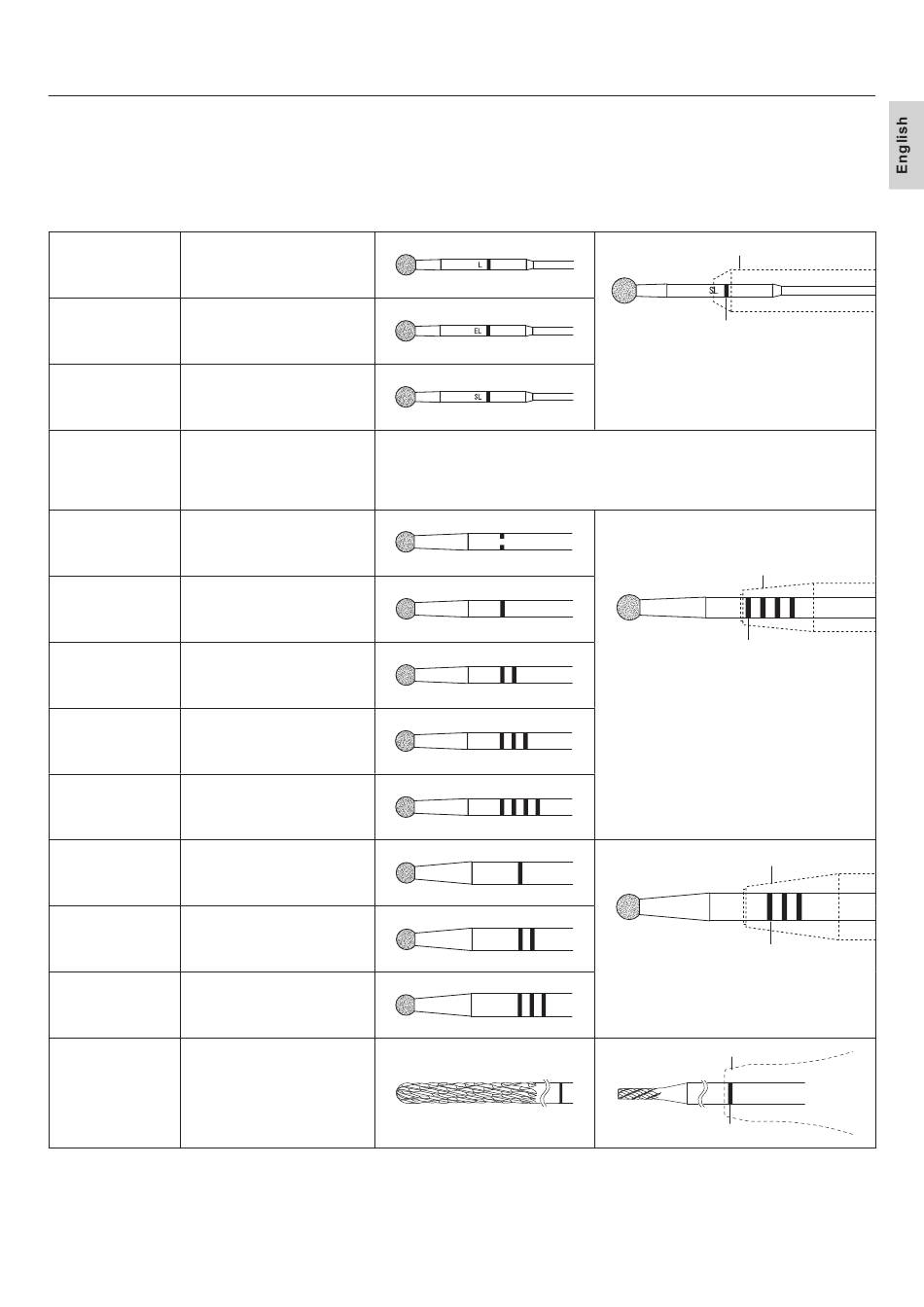

Ring Marks
Some of the NSK Cutting Accessories have Ring Marks.
Check the Ring Marks of each Cutting Accessory to mount it appropriately.
* There is no Ring Mark on the Cutting Accessories not shown in this Operation Manual.
Applicable
Applicable Cutting Accessories
Attachment
P200-1A135
PDS-1□□135-□□
PD-1A135
P200-1A155
P200-1A155-C PDS-1□□155-□□
PD-1A155
P200-1A175
P200-1A175-C PDS-1□□175-□□
PD-1A175
P200-RA330
P200-RA330-L
PDS-1□□330-□□
PD-RA330
PD-RA330-L
P200-2SMS
PDS-2□□MS-□□
P200-2AMS
P200-2SES
PDS-2□□ES-□□
P200-2AES
P200-2SS
PDS-2□□S-□□
P200-2AS
P200-2SM
PDS-2□□M-□□
P200-2AM
P200-2SL
PDS-2□□L-□□
P200-2AL
P200-3GAS
PDS-3□□S-□□
P200-3GAM
PDS-3□□M-□□
P200-3GAL
PDS-3□□L-□□
P200-3MC
PDS-3MCS-□□
Ring Mark
No Ring Mark
35
Operation of SMH/HMH Series
Correct Mounting Position
Tip of Attachment
Ring Mark
The identification letter should be partially
visible.
The Ring Mark should not be visible, as it is
hidden inside the Attachment.
Tip of Attachment
Ring Mark
There are 4 Ring Marks.
All Ring Marks should not be visible, as they
are hidden inside the Attachment.
Tip of Attachment
Ring Mark
The Ring Marks should not be visible, as they
are hidden inside the Attachment.
Tip of Attachment
Ring Mark
