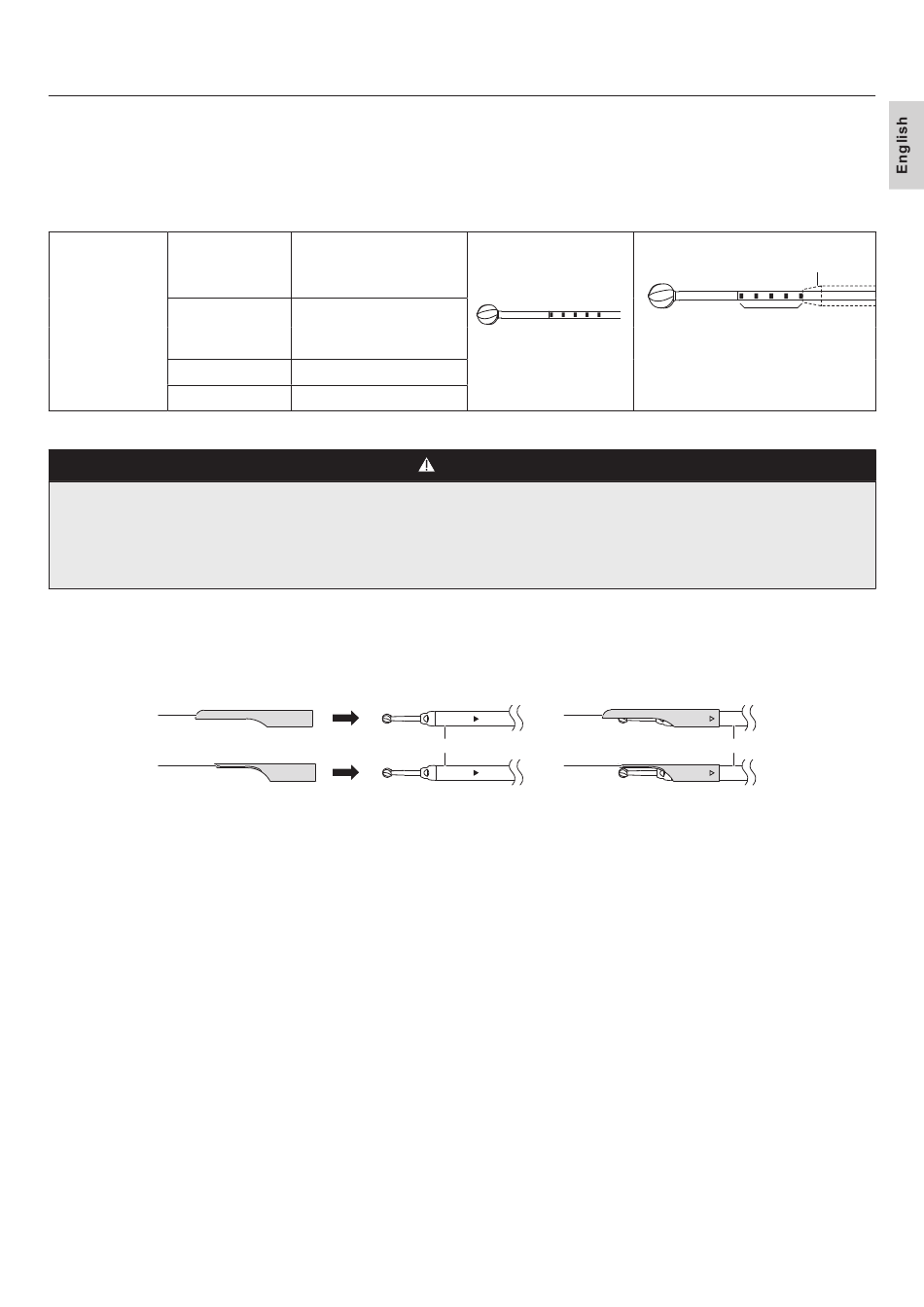

Ring Marks
Some of the NSK Cutting Accessories have Ring Marks.
Check the Ring Marks of each Cutting Accessory to mount it appropriately.
* There is no Ring Mark on the Cutting Accessories not shown in this Operation Manual.
Applicable
Applicable Tube
Attachment
P300-1T110
P300-1T110-C
P300-1T110-PB
P300-1T130
P300-1AHS
P300-1T130-C
P300-1AHA
P300-1T130-PB
P300-1T170
P300-1T240
Mounting and Removing the Hood/Beak (Optional)
● Be sure to mount the Hood/Beak after the Cutting Accessory is mounted on the Attachment.
● Insert the Hood/Beak until ' ▶ ' mark on the Bur Guard is hidden when mounting the Hood/Beak.
● Use the Cutting Accessory with its tip of Ø3mm or less when mounting the Hood/Beak.
* The Hood/Beak cannot be used for attachments other than Slim Attachment 300 or Standard Attachment 300.
● Be sure to completely stop rotation of the Attachment before mounting/removing the Hood/Beak.
_ Mounting
1 Make sure that the rotation of the Attachment is stopped.
2 Mount the Hood Ⓐ/Beak Ⓑ on the Bur Guard Ⓒ.
<Before Mounting>
Ⓐ
Ⓑ
Applicable Cutting
Accessories
PDS-1□□110-□□
PDS-1□□130-□□
PDS-1□□170-□□
PDS-1□□240-□□
CAUTION
Ⓒ
31
Operation of SMH/HMH Series
Ring Mark
There are 6 Ring Marks.
Each Ring Mark goes inside the
Attachment each time the exposure
length is adjusted.
_ Removing
1 Make sure that the rotation of the Attachment is stopped.
2 Pull the Hood Ⓐ/Beak Ⓑ straight out from the Bur Guard Ⓒ.
<Mounted>
Ⓐ
Ⓑ
Correct Mounting Position
Tip of Attachment
Ring Mark
Ⓒ
