Operation of SMH/HMH Series

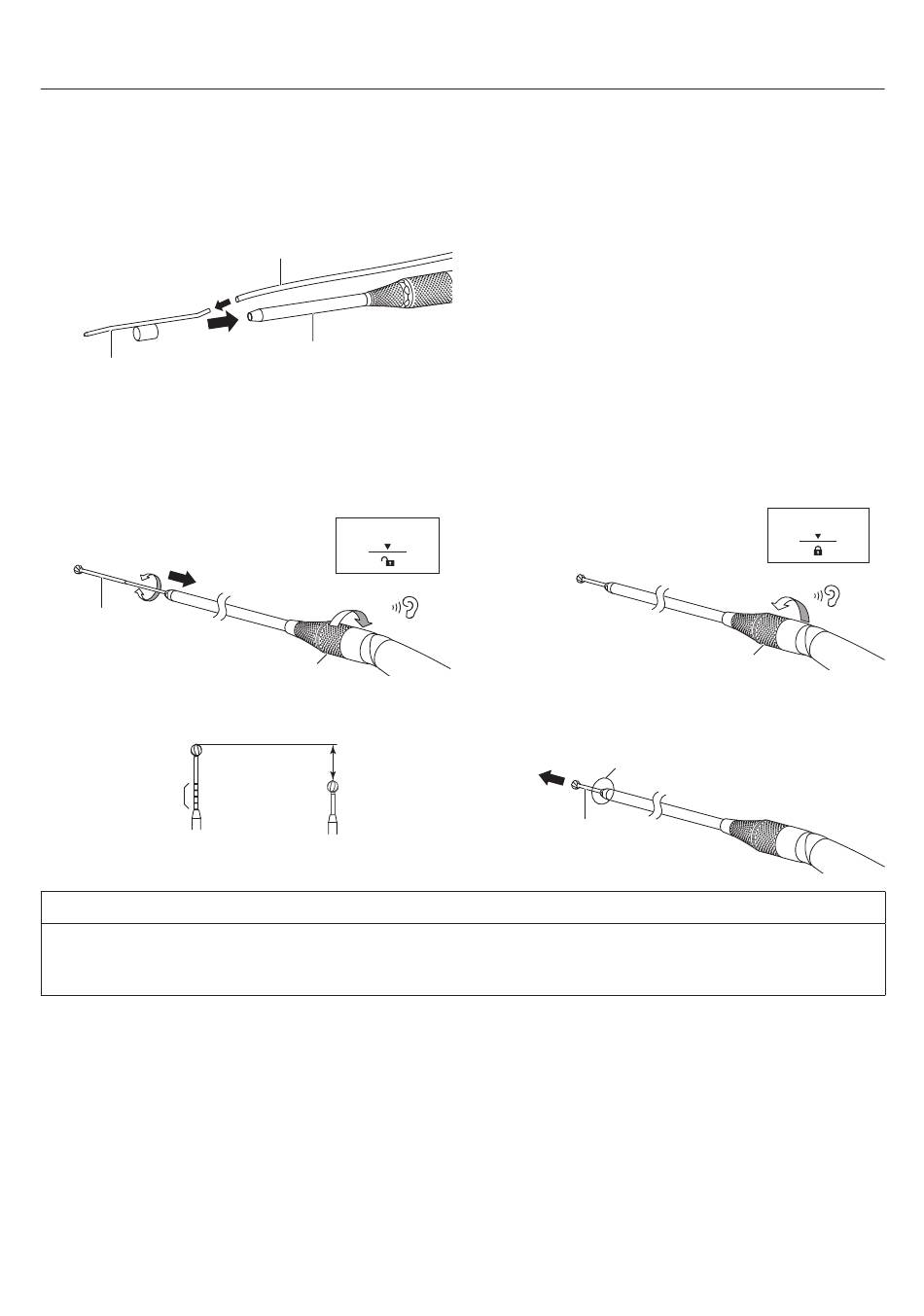

Mounting the Irrigation Nozzle (Optional)
_ Mounting
1 Insert the Irrigation Nozzle Ⓐ onto the Bur Guard Ⓑ of the
Attachment, making sure that the correct end of the Irrigation
Nozzle goes in.
2 Insert the Irrigation Tube Ⓒ into the Irrigation Nozzle Ⓐ.
Ⓐ
* For the related connection and the setting on the Control Unit, refer to OM-SE0021E Primado2 OPERATION MANUAL Control Unit and Foot
Controls.
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1 Rotate the Twist Collet Ⓐ in the direction of Ⓑ until it clicks.
Insert the Cutting Accessory Ⓒ all the way while twisting it.
Ⓒ
2 Push or pull the Cutting Accessory to adjust the exposure length
as required (when using Slim Attachment 300).
Ring Marks
_ Removing
Perform steps 1 through 3 of the mounting procedure in the reverse order.
● For Slim Attachment 300 applicable Cutting Accessory, the exposure length of its tip can be adjusted within the chucking range by
changing the chucking position.
● The exposure variable range of the Cutting Accessory is 10mm.
Ⓒ
Ⓑ
Chuck Open
Ⓑ
Ⓐ
Adjustable range
10.0 mm
(2.0mm interval)
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse
order.
3 Rotate the Twist Collet Ⓐ in the direction of Ⓓ until it clicks.
4 Pull the Cutting Accessory Ⓒ lightly to confirm that it is
securely connected to the Attachment.
Ⓒ
NOTICE
30
Chuck Close
Ⓓ
Ⓐ
Securely
