Operation of SMH/HMH Series

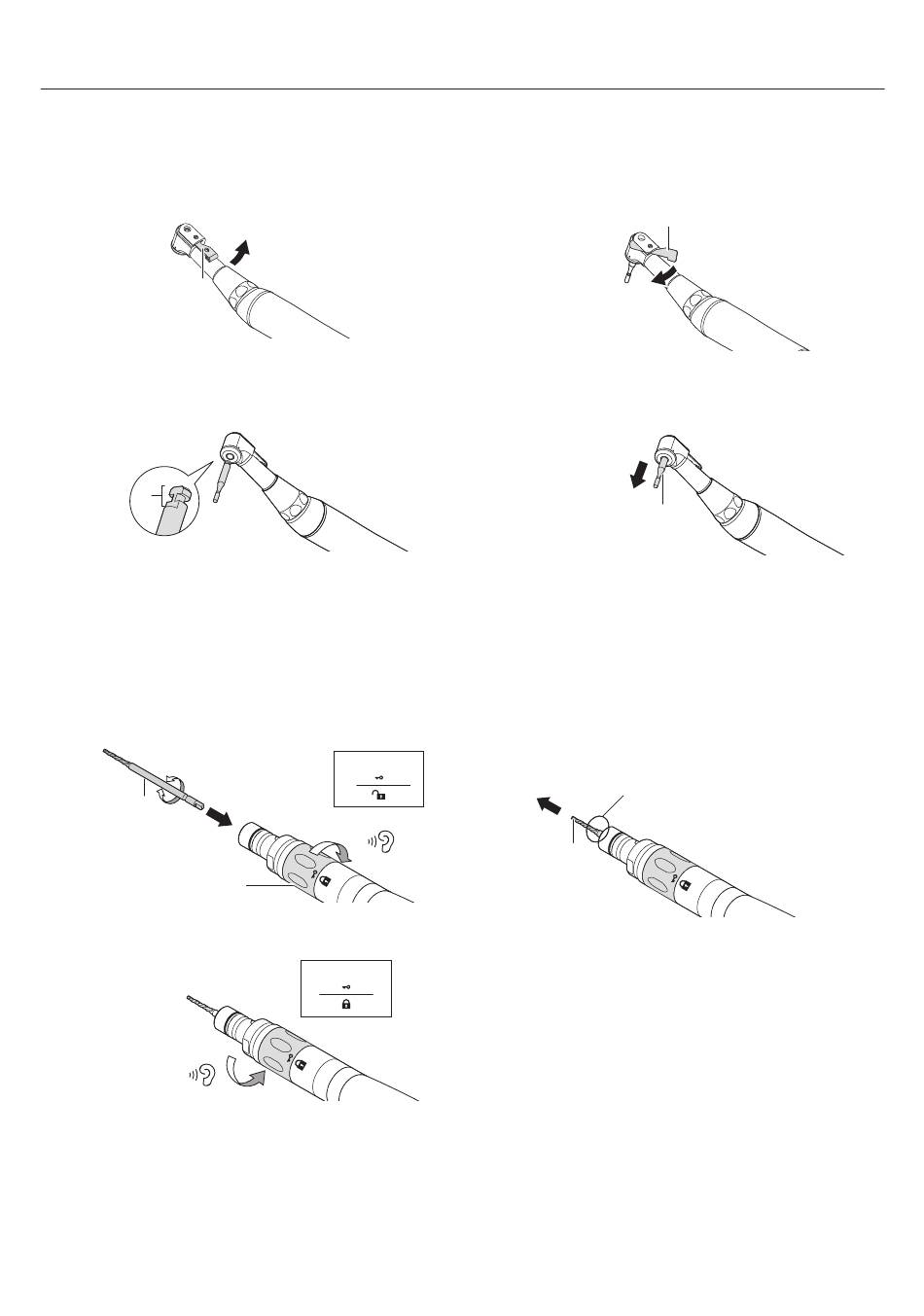

4 – 2 – 4 ContraAngle Attachment 200, Primado Contra Angle Attachment
Mounting and Removing the Cutting Accessories (Commercially Available)
_ Mounting
1 Slide the Latch Ⓐ in the direction of Ⓑ.
Ⓐ
2 Match the notch of the bur Ⓒ to the corresponding part of the
shaft and push the bur all the way through.
Ⓒ
_ Removing
Perform steps 1 through 3 of the mounting procedure in the reverse order.
4 – 2 – 5 Craniotome Handpiece 200, Craniotome Handpiece
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1 Rotate the Twist Collet Ⓐ in the direction of Ⓑ until it clicks.
Insert the Cutting Accessory Ⓒ all the way while twisting it.
Ⓒ Ⓒ
2 Rotate the Twist Collet Ⓐ in the direction of Ⓓ until it clicks.
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
Ⓑ
Chuck Open
Ⓑ
Ⓐ
Ⓒ
Chuck Close
Ⓓ
3 Slide the Latch Ⓐ in the direction of Ⓓ to set the bur in place.
4 After mounting the bur Ⓔ, pull it lightly to confirm that it is
securely connected to the Attachment.
3 Pull the Cutting Accessory Ⓒ lightly to confirm that it is
securely connected to the Attachment.
Securely
Ⓒ
