8.4.3
Carry out measurement
Press
to carry out a measurement. Use
Press
to leave this screen again.

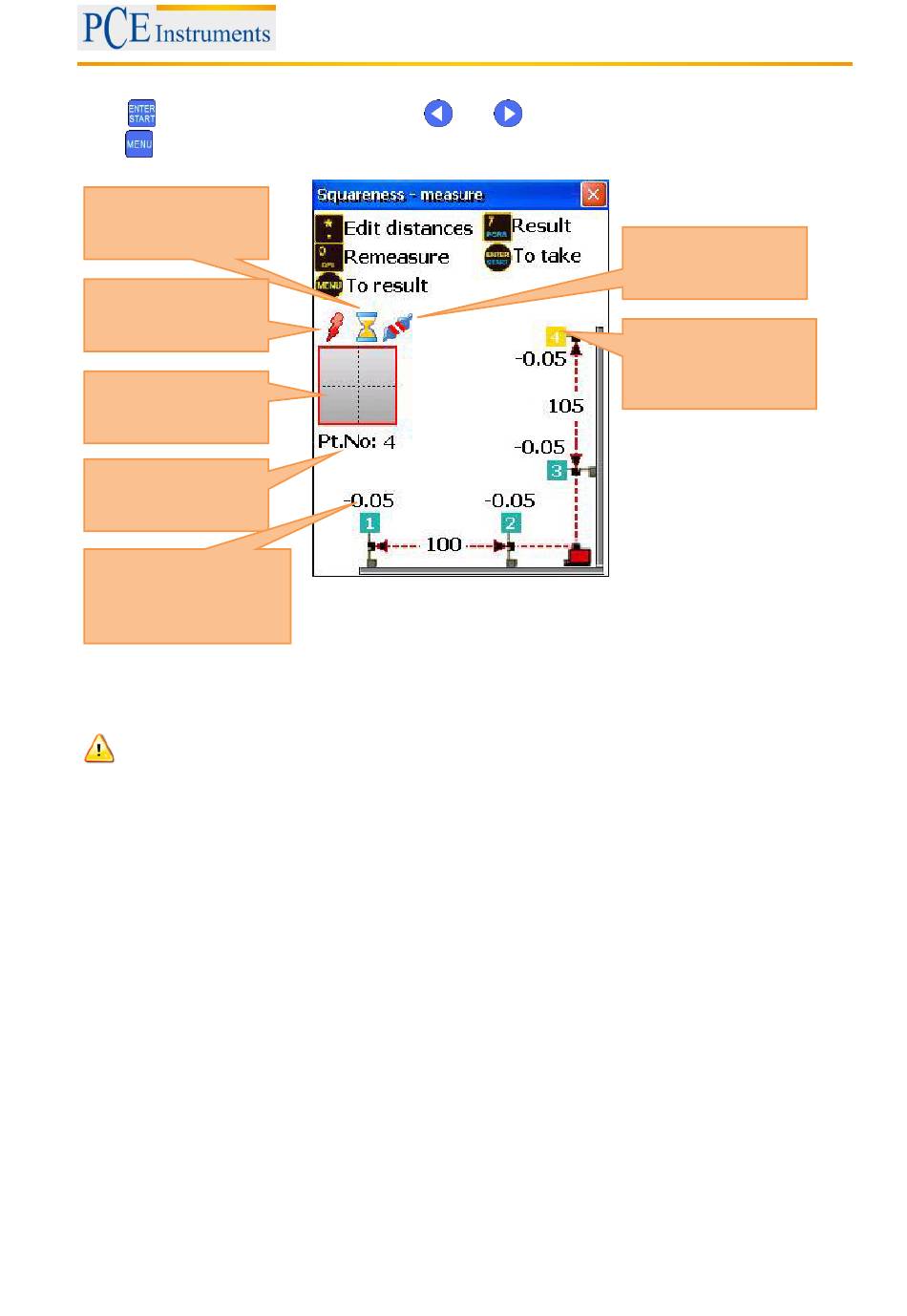

Measurement data
not ready (please
wait)
Laser beam out of
aim
Laser beam position
indicator
Number of the
selected
measurement point
Saved measurement
value. Not available, if
no value was saved
Having carried out the measurement for Point 1, move the receiver to Point 2 and carry out a
measurement. Turn the rotatable laser transmitter 90° to the direction of the second plane afterwards.
Carry out measurements for Point 3 and Point 4 now.
The RL-20 laser transmitter must not be moved after the beginning of the measurement. Be careful
when you turn the laser beam.
The order of measurement data acquisition is not important for the measurement.
Manual
and
, to select the required measurement point.
83
No connection to the
sensors
Yellow blinking means
that measurement
point is selected
