Enter dimensions

What should be noted in this window
for correct measurement results, the
following must be respected:
S-C ≤ S-F1 < S-F2
Functions in this window
Enter distance sensor S – middle of
-
the coupling
Enter distance sensor S – sensor M
-
Enter distance sensor S – middle of
-
the coupling
Enter distance sensor S – front
-
machine base
Enter distance sensor S – rear
-
machine base
Measurement unit
Manual
Shortcuts in this window
Navigate up
Navigate down
Save and leave and exit
Confirm entry
17

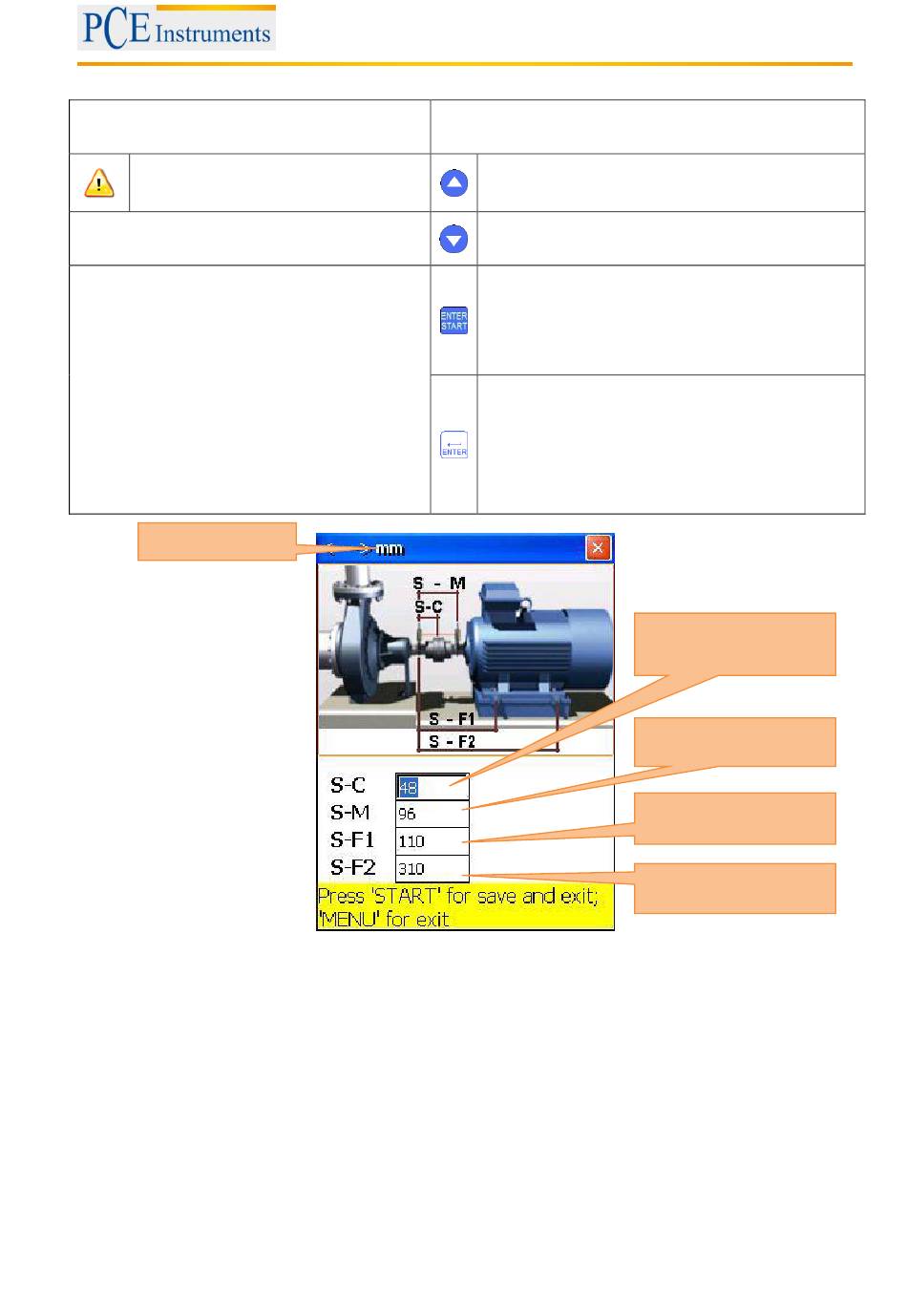

Sensor S to middle of
the coupling
Sensor S to Sensor M
Sensor S to front
machine base
Sensor S to rear
machine base
