System description
4.1
Technical description

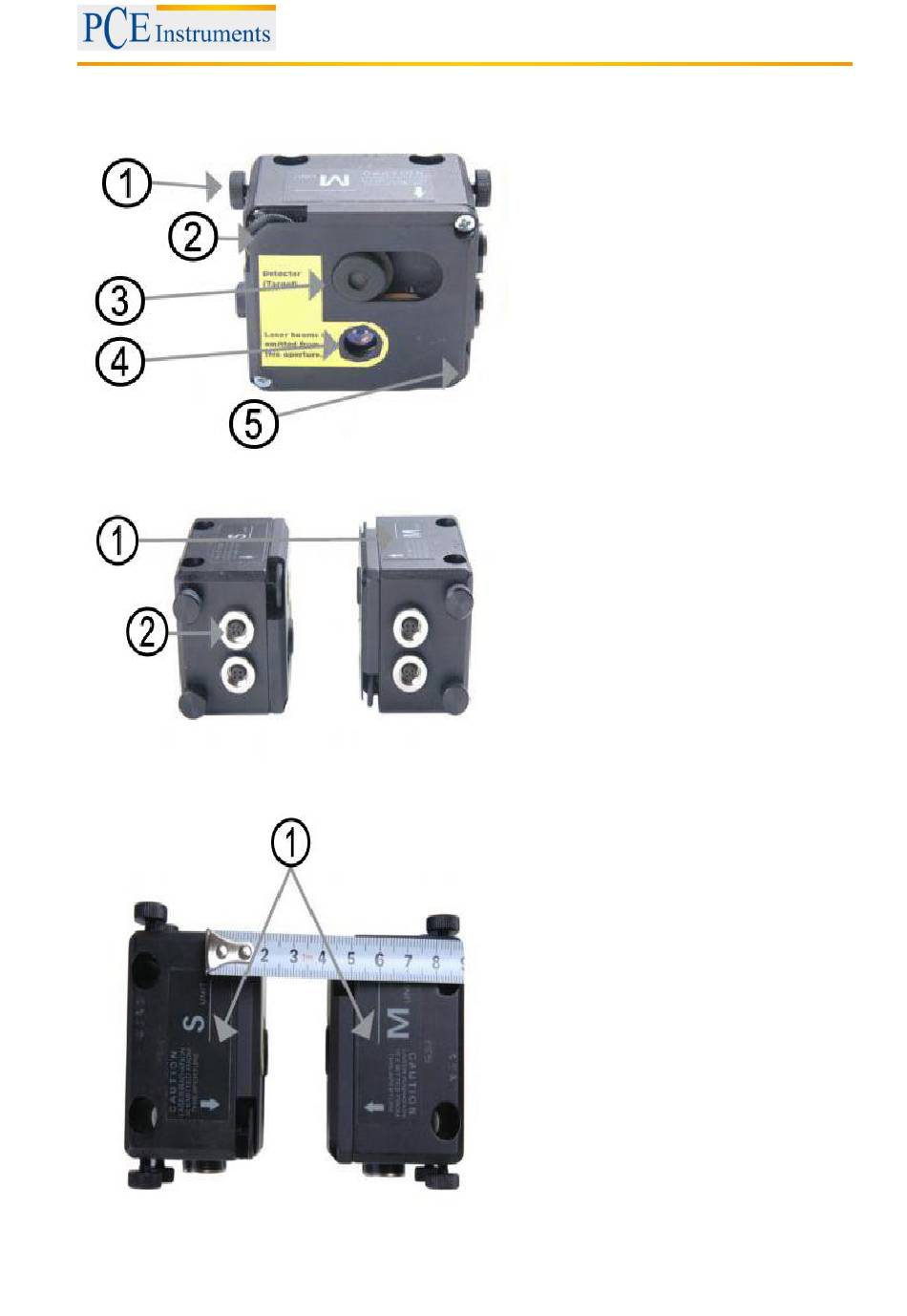

Front and top view of the measurement sensors
Top view of the measurement sensors
Manual
Measurement sensor side view
1
Lock button
2
Vertical alignment
3
Detector / target
4
Exit hole of the laser beam
5
Horizontal alignment
1
Reference point
2
Cable connector socket
Reference lines to measure the
1
sensor distance
