Data acquisition

Push
to collect data.
What should be noted in this window
Before starting a new alignment
process, you need to enter dimensions
and parameters
Do not change the position of
measurement units when work is
interrupted
Laser is now switched on

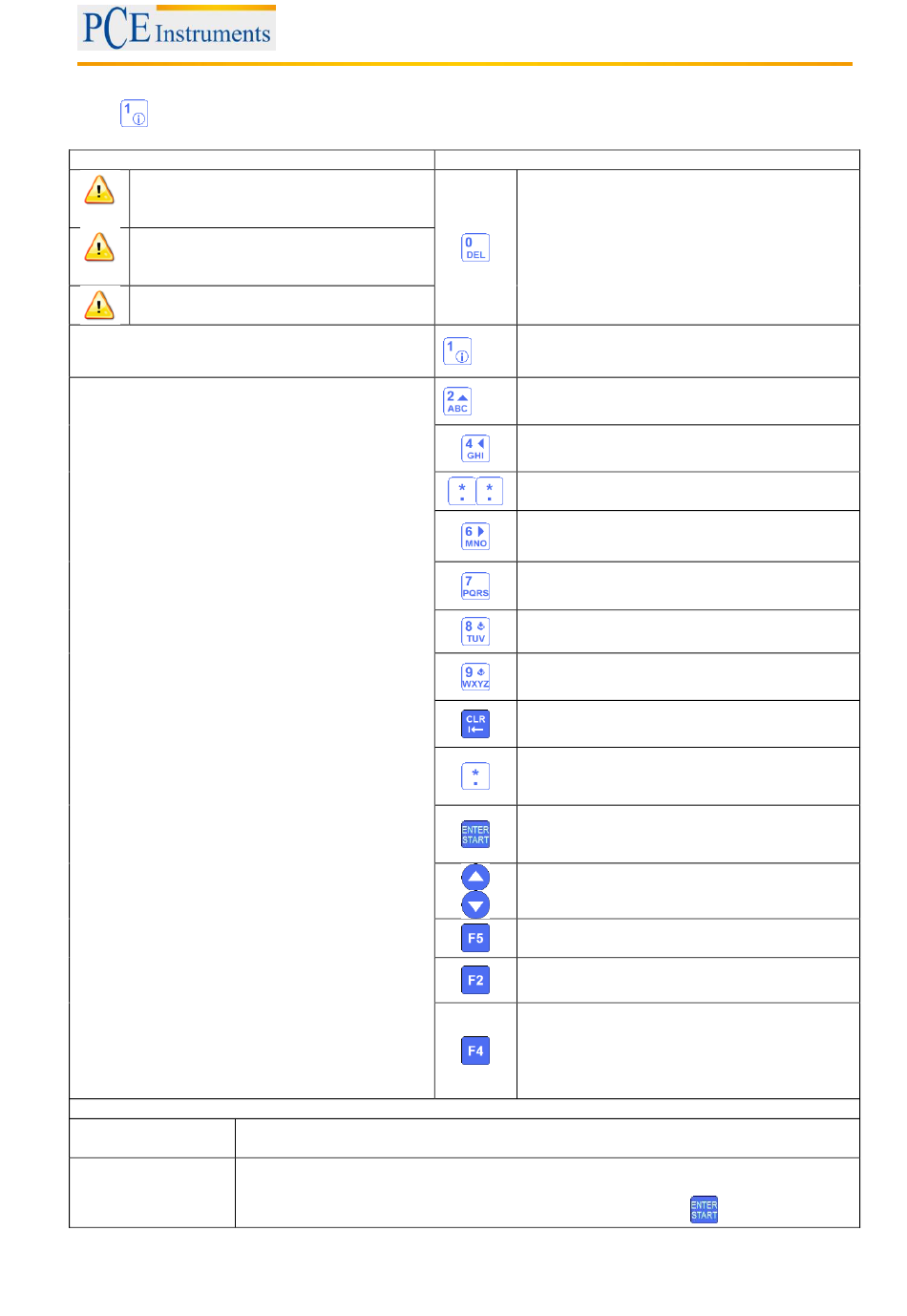

Functions in this window
-
Collect measured values (up to 36)
-
Select between auto sweep and
manual mode
-
Manual entry of Ys- and Ym-values (if
activated)
-
Manual angle entry (if activated)
-
Selection of measurement unit
(mm/inch)
-
Navigate through collected data
-
Delete/add/replace measured values
-
Restart (all values are deleted)
-
Set Offset
-
Save collected data
-
Load collected data
Symbols and status in this window
A blinking amber-coloured "C" in the display means that currently no data can be
[C]
received from the sensors.
A blinking red "R" in the display means that you are already viewing a stored
reading. This one can be deleted or replaced. If this sign is not displayed in the
[R]
window, the current value has not been saved yet. Pressing
Manual
Shortcuts in this window
Start again (deletes all values)
Confirmation dialogue appears
Enter Ys-values, if manual entry is activated
Enter Ym-values, if manual entry is
activated
Enter angle, if manual entry is activated
If cursor is on the first place in the entry
field, push this button twice to reverse sign
Select the measurement unit (mm or inch)
Set parallel misalignment (Offset)
Save all data in one file (see chapter 10
„Handling of the Data Dialogue window")
Load data from file (see chapter 10
„Handling of the Data Dialogue window")
Delete currently selected reading
Enter new value. You have to switch to the
last value saved, to make this option
possible
Save the current value or replace already
saved values
(confirmation dialogue appears)
Navigate through data
Continue to the result window. All necessary
conditions need to be fulfilled
Open popup menu
Activate/deactivate auto-sweep. Auto-
sweep can only be activated at the
beginning of data acquisition or after restart.
Manual entry of values and inclination need
to be deactivated
19
, you can store
