PCE Instruments PCE-TU 3 Bedienungsanleitung Seite 32

- Save collected data
- Load collected data

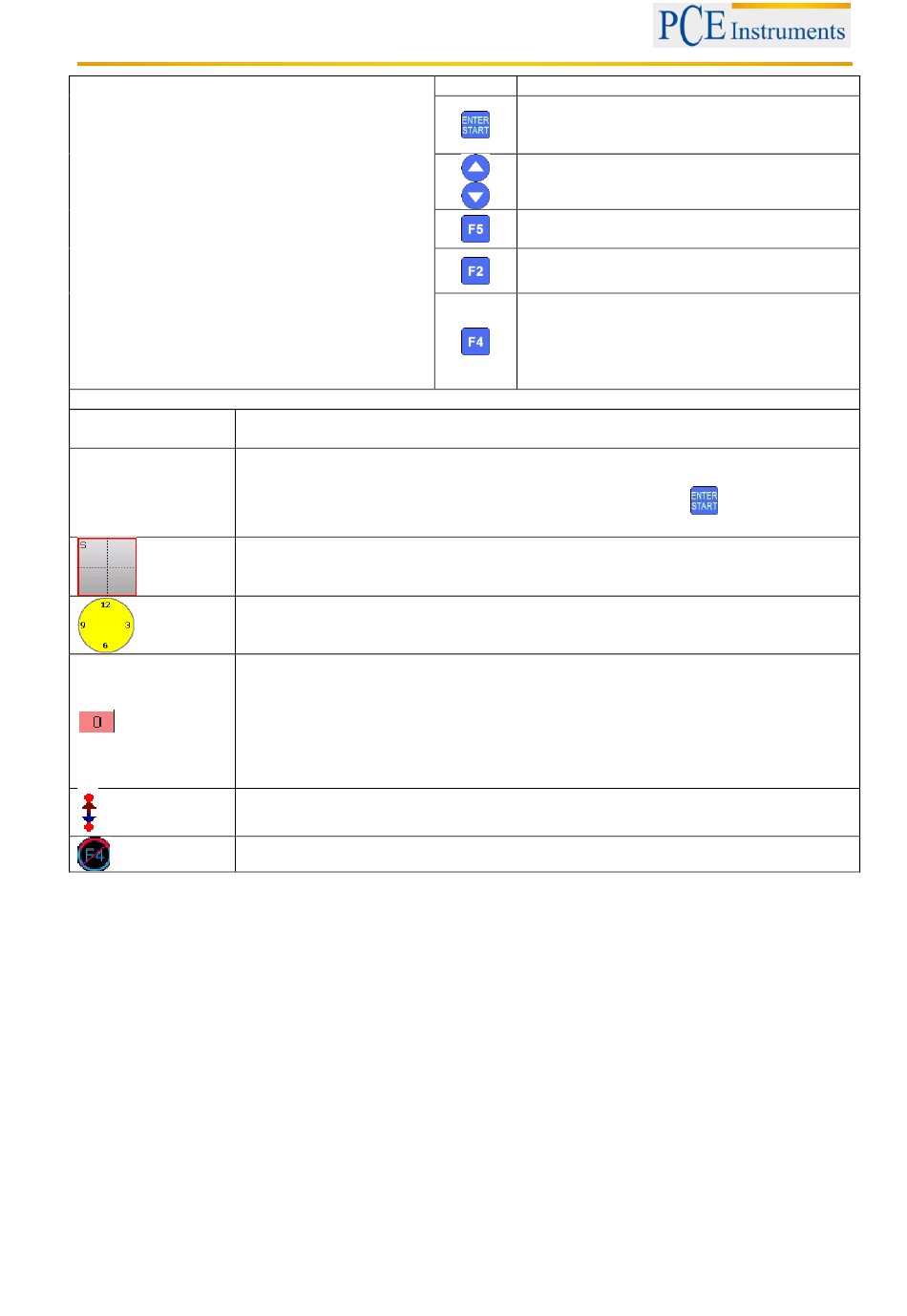

Symbols and status in this window
A blinking amber-coloured "C" in the display means that currently no data can be
[C]
received from the sensors.
A blinking red "R" in the display means that you are already viewing a stored
reading. This one can be deleted or replaced. If this sign is not displayed in the
[R]
window, the current value has not been saved yet. Pressing
the value.
The absence of the laser beam position indicator and a red blinking frame of the
position indicator mean, that no laser beam meets or no sensor data are
recognized.
An empty dial means that there is currently no angle established (or averaging is
not completed) or that the rotation angle (to the next position) is too small (lower
than 6°)
A bright red indication means that the rotation angle does not meet the
requirements of the single measurement points (at least 60°).
A yellow indictaion means that the rotation angle is over 60°.
A green indication means that the rotation angle is over the recommended area
(over 90°).
This symbol means that an expanded Y-value range is used.
A crossed-out symbol means that the auto-sweep mode is deactivated.
Manual
possible
Save the current value or replace already
saved values
(confirmation dialogue appears)
Navigate through data
Continue to the result window. All necessary
conditions need to be fulfilled
Open popup menu
Activate/deactivate auto-sweep. Auto-
sweep can only be activated at the
beginning of data acquisition or after restart.
Manual entry of values and inclination need
to be deactivated
32
, you can store
