7

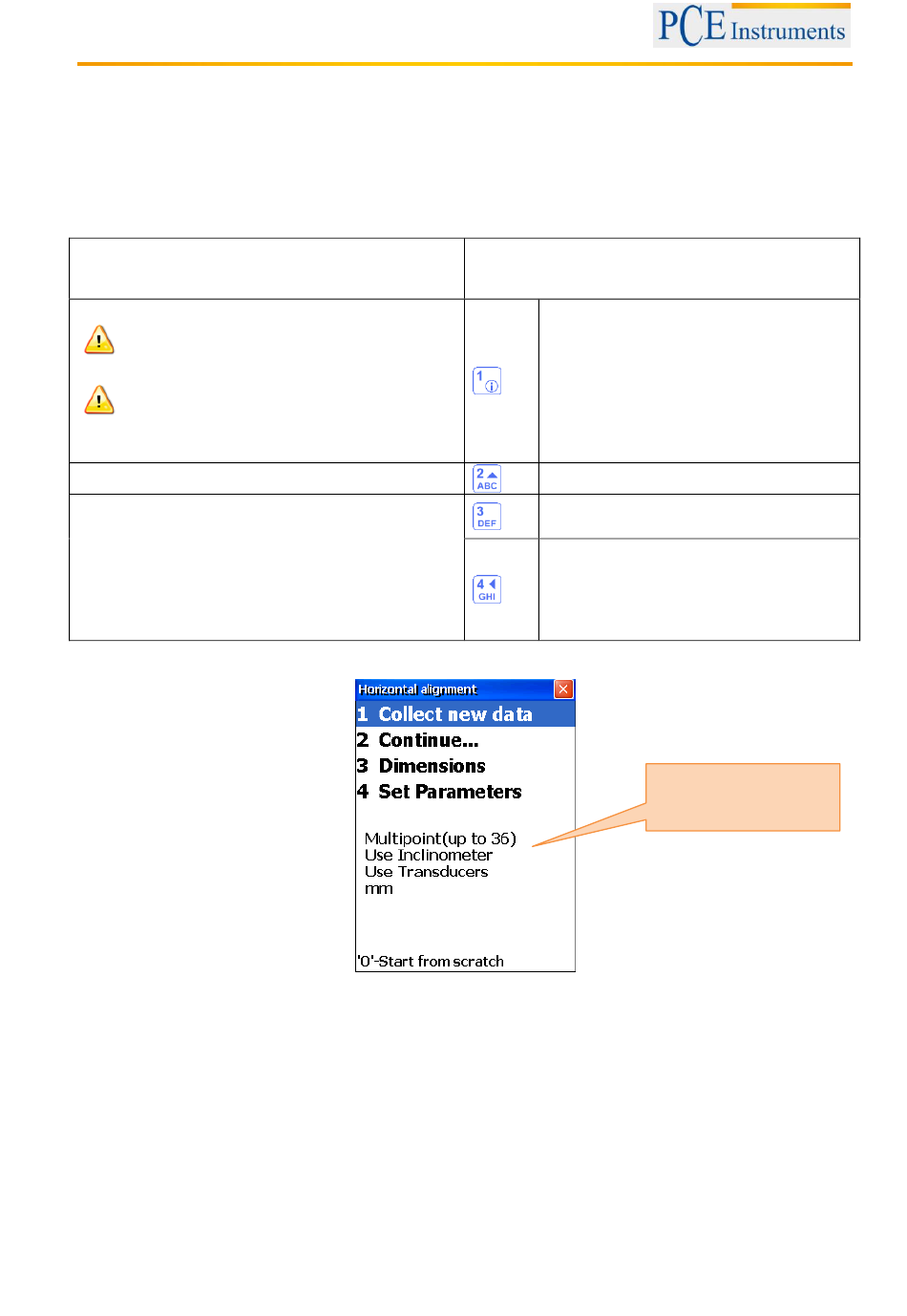

Machine alignment

7.1

Horizontal alignment

Mount the measurement sensor, marked as S, to the shaft of the stationary machine and the
measurement sensor, marked as M, to the moveable machine. Connect the cable (described in 3.3) to
the sensors and the main unit or configure the Bluetooth interface (only possible with the Bluetooth
adaptor kit).
What should be noted in this window
Firstly carry out the Soft Foot Measurement
to avoid unexpected errors during the alignment
check the result after alignment by
measurement again
Functions in this window
- Determine new data
- Continue alignment
- Change of parameters
- Change machine dimensions and
distances
Manual
Shortcuts in this window
determination of new data
Continue alignment
Change machine dimensions and
distances
Change/add parameters
16
Short description of
the active parameters
